Juniper BT11 Access Point
Enterprise-Grade Bluetooth LE
Get a Quote!
The Juniper BT11 is an enterprise-grade access point exclusively for Bluetooth Low Energy. It leverages Juniper’s patented virtual BLE (vBLE) antenna array, Juniper Mist cloud subscription services, and the Mist AI engine to enable high value location-based services such as user engagement, asset location, analytics, and various contact tracing/social distancing use cases. By eliminating the need for battery-powered BLE beacons and manual calibration, the Juniper solution makes indoor location services cost effective to deploy and scale.
The Juniper Mist Cloud Architecture
All wireless deployment, setup, operations, and insights are handled via the Juniper Mist Cloud, which was designed to provide unprecedented visibility and control at Web scale. A microservices architecture provides maximum agility when rolling out new features/ services.
Juniper Mist Edge
Juniper Mist Edge is an on-premises appliance that runs a tunnel termination service. Juniper APs offer a flexible data plane. Traffic can be broken out locally, or tunneled to Juniper Mist Edge. There are many use cases the Juniper Mist Edge solves, including seamless mobility in large campus environments, tunneling of guest traffic to a DMZ, IoT segmentation, and teleworker.
Let’s Get Virtual
Patented virtual Bluetooth LE (vBLE) technology lets you deploy and move virtual beacons with the simple click of a mouse (or via APIs), eliminating the need for physical beacons.
Machine Learning Eliminates Manual Calibration
Juniper continuously collects data in real-time from all mobile devices to ensure accurate location estimates without the need for Bluetooth LE site surveys.

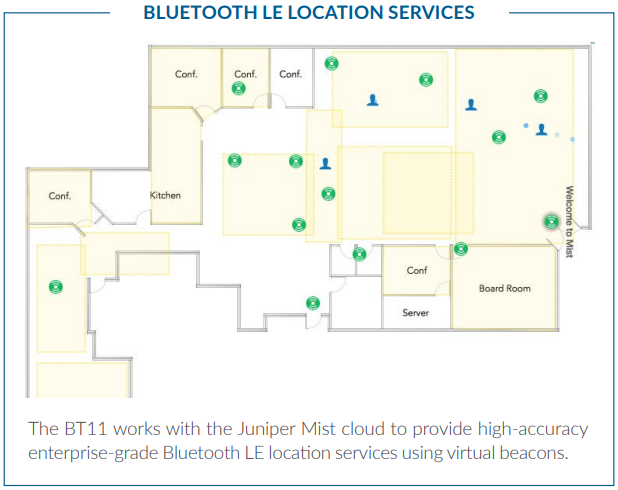

Best Location Accuracy and Performance
Dynamic vBLE 16 antenna elements in Juniper APs plus machine learning in the Juniper Mist cloud ensure accuracy within 1 to 3 meters for mobile devices, and in-room/zone-level accuracy for Bluetooth LE assets.
Juniper gives you a real-time view of the RF environment from the mobile user’s perspective. This lets you detect coverage holes and other issues, even as users move around and their RF coverage patterns change.
Open APIs for Easy Integration
Juniper offers a mobile SDK for iOS and Android with three types of APIs (vBLE beacon, indoor location, and zone analytics) for seamless integration with complementary products.

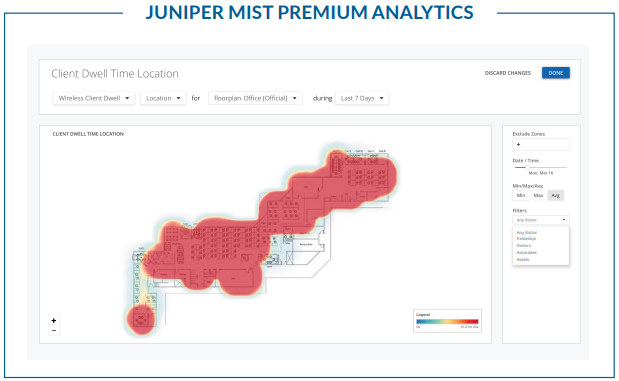

Juniper Mist’s User Engagement and Asset Visibility service includes a base capability for analyzing up to 30 days of data, from which you can extract network insights across your enterprise that help you properly align your support resources or introduce enhanced premium services.
For enterprises that need to extend the timeline of data beyond 30 days or access other third-party solutions with customizable reporting to better understand shopper and guest behavior, Juniper Mist Premium Analytics Subscription service is available.

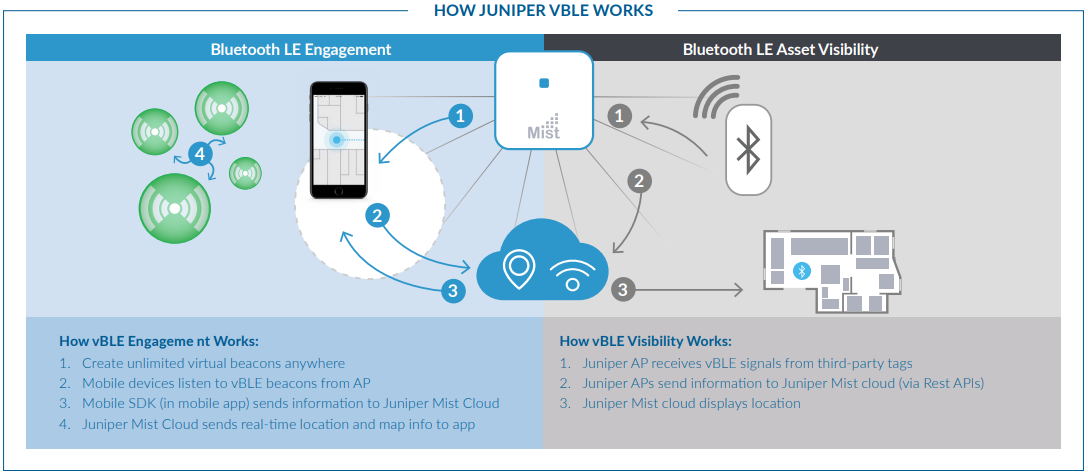

Patented VBLE Technology
In addition to the industry-leading Wi-Fi technology at the heart of the AP43 access point, our second-generation, patented, and dynamic, 16-element virtual Bluetooth LE (vBLE) antenna array combines with machine learning to eliminate the need for battery-powered beacons. This maximizes scalability and optimizes your deployment investment in location-based services. vBLE enables businesses to provide rich location-based experiences that are engaging, accurate, real-time, and scalable.

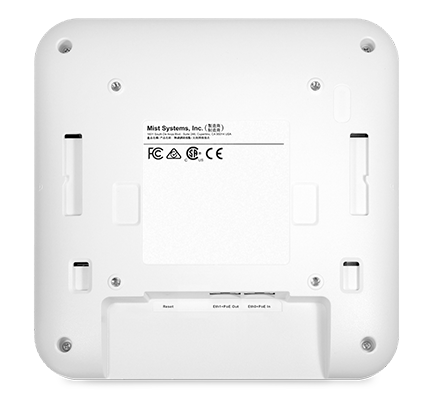

|BT11 Access Point Specifications|
|Power Options||802.3af or 802.3at PoE|
|Dimensions||203mm x 203mm x 40mm (7.99in x 7.99in x 1.57in)|
|Weight||0.636 kg (1.4 lbs)|
|Operating Temperature||Internal antenna 0° to 40° C|
|Operating Humidity||10% to 90% maximum relative humidity, noncondensing|
|Operating Altitude||3,048 m (10,000 ft)|
|Electromagnetic Emissions||FCC Part 15 Class B|
|I/O||One 10/100/1000BASE-T auto-sensing RJ-45 with PoE In
One 10/100/1000BASE-T auto-sensing RJ-45 with 48Vdc PoE Out
|RF||2.4GHz BLE with Dynamic Antenna Array|
|Indicators||Multi-color status LED|
|Compliance Standards||UL 60950-1
CAN/CSA-C22.2 No. 60950-1
FCC Part 15.247, 15.407, 15.107, and 15.109 RSS-247

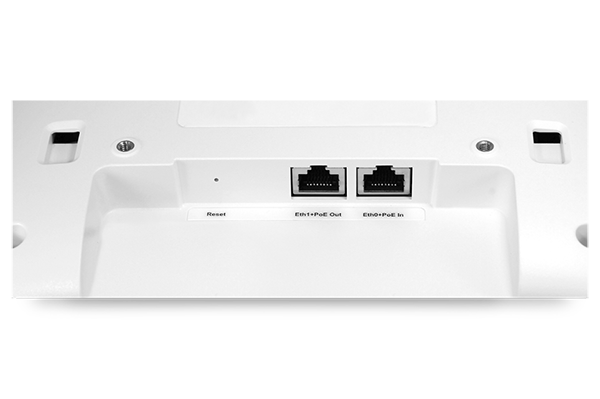

|I/O Ports and Accessories|
|Ethernet1+PoE Out||8-pin interface for digital I/O and analog input (0 to +5V)|
|Ethernet1+PoE In||USB2.0 support interface|
|Reset||Reset to the factory default settings|
Services Available for the Juniper BT11
Bluetooth Cloud Services
- Juniper Mist Mobile Engagement
- For Digital Experience Teams
- Accurate (1-3m) Turn-by-Turn Navigation
- Sensor Fusion with Dead Reckoning
- Unsupervised Machine Learning
- Virtual Beacons with Custom Notifications
- Mobile SDK for iOS and Android
- For Digital Experience Teams
- Juniper Mist Asset Visibility
- For Process and Resource Improvement Teams
- Identification of Assets by Name and View Location
- Zonal/Room Accuracy for Third-Party Tags
- Historical Analytics for Asset Tags
- Telemetry for Asset Tags (temperature, motion, and other data)
- APIs for Viewing Assets and Analytics
*Based on Telcordia SR-332 issue 3, Method I, Case 3 and measured at temperature of 25°C (77°F) for indoor access points, and 65°C (149°F) for outdoor access points.
|Wi-Fi Standard||802.11ac Wave2 4x4 : 4||802.11ax (Wi-Fi 6 ) 4x4 : 4SS||802.11ac Wave2 4x4 : 4||802.11ac Wave2 2x2 : 2||—|
|Wi-Fi Radios||Dedicated third radio||Dedicated third radio||Dedicated third radio||—||—|
|Warranty||One Year||Limited Lifetime||Limited Lifetime||Limited Lifetime||Limited Lifetime|
Download the Juniper BT11 Access Point Datasheet (PDF).
