Juniper AP24 Access Point
802.11ax Wi-Fi 6 / Wi-Fi 6E, Bluetooth LE Integrates Mist AI for AX


Juniper Networks AP34
Juniper Products
Juniper Access Points
Juniper AP24 Access Point
#AP24-US
Get a Quote!

Click here to jump to more pricing!

Overview:

The Juniper AP24 integrates support for 802.11ax, Mist AI, and an omnidirectional Bluetooth LE (BLE) antenna to automate network operations and boost performance in the 6-GHz band. The Wi-Fi 6E wireless access point helps optimize operator and user experiences with secure client-to-cloud automation, insight, and data-driven actions.

The AP24 is a tri-band-capable, dual-band-concurrent device that supports two transmit/receive spatial streams. Managed by the Juniper Mist cloud architecture, it delivers real-time network data and asset visibility services with no need for battery-powered beacons or manual calibration.

Key Features

  • Deployment: Indoor
  • Wi-Fi Standard: 802.11ax (Wi-Fi 6 / Wi-Fi 6E); 2x2:2
  • Wi-Fi Tri-Band: Yes (Dual-Band-Concurrent); Dedicated Third Radio
  • Antenna Options: Internal
  • Omni BLE: Yes

Juniper AI-Driven Network

The Juniper AP24 is an entry-level access point offering a cost-effective technology investment choice for organizations seeking cutting edge AI-driven solutions that optimize end user Wi-Fi experiences. The Juniper AP24 integrates Mist AI for AX capabilities and omnidirectional BLE antenna to automate network operation and boost Wi-Fi performance for devices on your network in the 6 GHz (Wi-Fi 6E) band. Juniper’s AI solutions for 6E helps support optimized operator and user experiences with secure client-to-cloud automation, insight, and AI-driven actions.

The Juniper AI-Driven Enterprise makes Wi-Fi predictable, reliable, and measurable, offering unprecedented visibility into the user experience through the use of unique service-level expectation (SLE) metrics. Proactive, AI-driven automation and self- healing replace time-consuming manual tasks, lowering Wi-Fi operational costs and saving substantial time and money. The AP24 is ideal for areas where you need a high- performance, 6 GHz capable access point but don’t require advanced location-based services. All operations are managed using the open and programmable microservices- based Juniper Mist cloud architecture. The system delivers maximum network scalability and performance while also bringing DevOps agility to WLANs and location services.

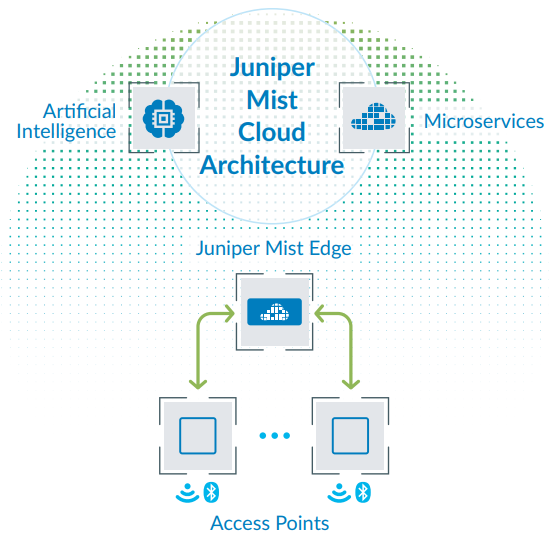

The Juniper Mist Cloud Architecture

Juniper’s cloud-native, AI-driven microservices architecture delivers unparalleled agility, scale, and resiliency to your network. It lowers OpEx and delivers unprecedented insights into network performance, behaviors, traffic patterns, and potential trouble spots by using data science to analyze large amounts of rich metadata collected by Juniper Access Points.

Juniper Mist Edge

Juniper Mist Edge is an on-premises appliance that runs a tunnel termination service. Juniper APs offer a flexible data plane. Traffic can be broken out locally, or tunneled to Juniper Mist Edge. There are many use cases the Juniper Mist Edge solves, including seamless mobility in large campus environments, tunneling of guest traffic to a DMZ, IoT segmentation, and teleworker.

Features:

High Performance Wi-Fi

The AP24 supports new bandwidth-hungry applications and soaring device densities. The AP24 is comprised of tri-band capable, dual band concurrent, tri-radio 2x2 802.11ax (Wi-Fi 6E) with maximum data rates of 2400 Mbps in the 6GHz band, 1200 Mbps in the 5GHz band, and 575 Mbps in the 2.4GHz band. The third radio functions as a network, location, and security sensor, as well as a spectrum monitor. With 802.11ax Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User Multiple Input Multiple Output (MU-MIMO), and Basic Service Set (BSS) Coloring technologies.

AI for AX

The added performance and spectrum efficiency of 802.11ax (Wi-Fi 6) has added to the complexity of configuring and operating wireless networks. Juniper automates and optimizes AP management and performance with AI for AX capabilities. Juniper access points reduce interference due to congestion and ensure consistent service to multiple connected devices in high-density environments by optimizing BSS Coloring, improving data transmission scheduling within OFDMA and MU-MIMO, and assigning clients to the best radio to boost the overall performance of the network.

Greater Spectral Efficiency

OFDMA improves spectral efficiency so that an increasing density of devices can be supported on the network. Density has become an issue with the rapid growth of IoT devices, which often utilize smaller data packets than mobile devices and hence increase the burden and contention on the network. Additionally, BSS Coloring improves the coexistence of overlapping BSSs and allows spatial reuse within a given channel by reducing packet collisions.

Automatic RF optimization

Radio Resource Management automates dynamic channel and power assignment, taking Wi-Fi and external sources of interference into account with a dedicated sensor radio that determines whether the AP should operate in the 2.4 or 6 GHz band. The AI engine continuously monitors coverage and capacity SLE metrics to learn and optimize the RF environment. A learning algorithm uses hysteresis on a 24-hour window to conduct a sitewide rebalancing for optimal channel and power assignment.

Proactive Insight and Action

A dedicated, dual-band third radio collects data for Juniper’s patent-pending Proactive Analytics and Correlation Engine (PACE), which uses machine learning to analyze user experiences, correlate problems, and automatically detect their root causes. These metrics are used to monitor SLEs and provide proactive recommendations to ensure problems don’t occur (or are fixed as quickly as possible when they do).

Improved IoT Battery Efficiency

By incorporating the 802.11ax target wake time (TWT) capability and Bluetooth 5.3, AP24 access points help extend the battery life of IoT devices, particularly as additional devices join the network.

Dynamic Debugging

The AP24 has constant monitoring services and sends alerts whenever a service behaves abnormally. Dynamic debugging relieves IT of having to worry about an AP going offline or that any services running on the AP become unavailable.

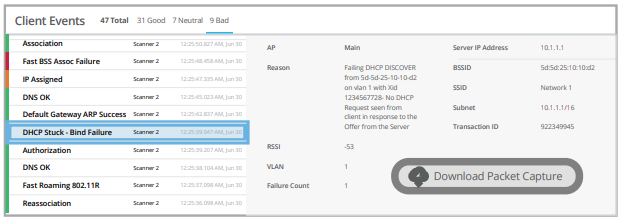

Dynamic Packet Capture

The Juniper Mist platform automatically captures packets and streams them to the cloud when major issues are detected. This saves IT time and effort and eliminates the need for truck rolls with sniffers to reproduce and capture data for troubleshooting.

Marvis Virtual Conversational Assistant

Marvis is a natural language processing (NLP)-based assistant with a Conversational Interface to understand user intent and goals, simplifying troubleshooting and the collection of network insights. It uses AI and data science to proactively identify issues, determine the root causes and scope of impact, and gain insights into your network and user experiences. It eliminates the need to manually hunt through endless dashboards and CLI commands.

Effortless, Cloud-Based Setup and Updates

The AP24 automatically connects to the Juniper Mist cloud, downloads its configuration, and joins the appropriate network. Firmware updates are retrieved and installed automatically, ensuring that the network is always up to date with new features, bug fixes, and security updates.

Premium Analytics

Our Wireless Assurance, User Engagement, and Asset Visibility services include a base analytics capability for analyzing up to 30 days of data, which enables you to simplify the process of extracting network insights across your enterprise. If you require dynamic insights like motion paths and other third-party data and would like the option of customized reports, the Juniper Mist Premium Analytics service is available as an additional subscription.

Specifications:

AP24 Access Point Specifications
Wi-Fi Standard 802.11ax (Wi-Fi 6E) with 6 GHz, including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), and Spatial Frequency Reuse (BSS Coloring).
Backwards compatibility with 802.11a/b/g/n/ac
Supported Data Rates 2.4 GHz / 5 GHz: 1.8 Gbps, 5 GHz / 6 GHz: 3.6 Gbps
2.4 GHz 2x2 : 2 802.11ax up to 575 Mbps data rate
5 GHz 2x2 : 2 802.11ax up to 1,200 Mbps data rate
6 GHz 2x2 : 2 802.11ax up to 2,400 Mbps data rate
MIMO Operation Two spatial stream SU-MIMO for up to 2400 Mbps wireless data rate to individual 2x2 HE160.
Two spatial stream MU-MIMO for up to 2400Mbps wireless data rate to up to two MU-MIMO capable client devices simultaneously
Dedicated Third Radio 2.4GHz, 5GHz, and 6GHz tri-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
Internal Antennas

Two 2.4GHz omnidirectional antennas with 4 dBi peak gain
Two 5GHz omnidirectional antennas with 6 dBi peak gain
Two 6GHz omnidirectional antennas with 6 dBi peak gain

IoT Radio Multi Personality with BLE 5.3 and Omni Antenna
Beam Forming Transmit Beamforming and Maximal Ratio Combining
Power Options 802.3af: Single radio, cloud connectivity only
802.3at: Full functionality

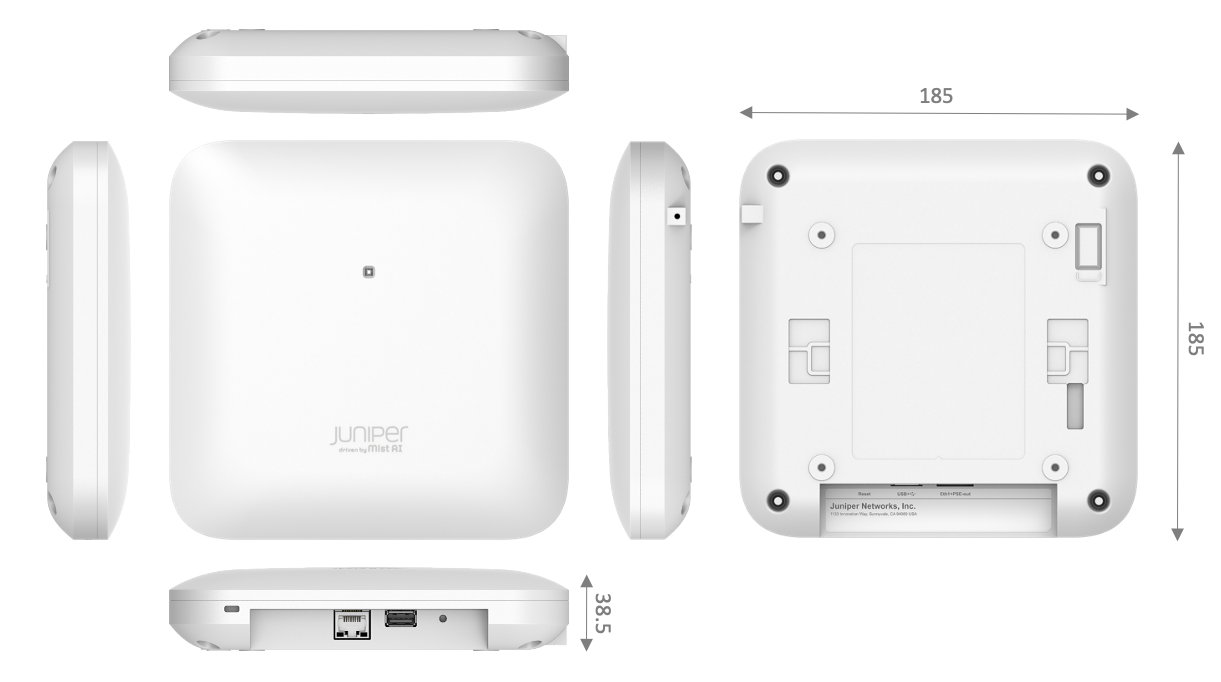

Dimensions 185mm x 185mm x 39mm
Shipping Box 244mm x 227mm x 64mm
Weight .75kg
Operating Temperature Internal antenna: 0° to 40° C
Operating Humidity 10% to 90% maximum relative humidity, noncondensing
Operating Altitude 3,048 m (10,000 ft)
Trusted Platform Module (TPM) Includes a TPM for infrastructure security
I/O Ports and Accessories
Eth0 100/1000/2500 Base-T (802.3bz); RJ45; PoE PD
Reset Reset to the factory default settings
Indicators One multicolor status LED
Traffic Forwarding Options Eth0, Juniper Mist Edge
IoT Sensors Temperature, Accelerometer
USB USB 2.0 support interface, 900 mA output

Services Available for the Juniper AP24


Wi-Fi Cloud Services

  • Juniper Mist Wi-Fi Assurance
    • For IT and NOC Teams
      • Predictable and Measurable Wi-Fi
      • Service-Level Expectation (SLE) Support
      • WxLAN Policy Fabric for Role-Based Access
      • Customizable Guest Wi-Fi Portal
      • Radio Resource Management
  • Marvis Virtual Assistant
    • For IT Helpdesk Teams
      • AI-Powered Virtual Network Assistant
      • Natural Language Processing Conversational Interface
      • Anomaly Detection
      • Client SLE Visibility and Enforcement
      • Data Science-Driven Root-Cause Analysis
  • Juniper Mist Asset Visibility
    • For Process and Resource Improvement Teams
      • Identification of Assets by Name and View Location
      • Zonal/Room Accuracy for Third-Party Tags
      • Historical Analytics for Asset Tags
      • Telemetry for Asset Tags (temperature, motion, and other data)
      • APIs for Viewing Assets and Analytics

Analytics Cloud Services

  • Juniper Mist Premium Analytics
    • For Network Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • End-to-End Network Visibility
      • Orchestrated Networking and Application Performance Queries
      • Simplified Network Transparency
    • For Business Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • Customer Segmentation and Reporting Based on Visitor Telemetry
      • Customized* Dwell and Third-Party Reporting for Traffic and Trend Analysis
      • Correlation of Customer-Guest Traffic and Trend Analysis
      • Correlated Customer-Guest Traffic and Trend Analysis

*Juniper Mist Premium Analytics service subscription is needed

Compare:

The table below compares the supported major functions of the Juniper Wi-Fi 6E and Wi-Fi 6 access points to help in selecting the most appropriate model(s).

  AP63 AP45 AP43 AP34 AP33 AP24 AP12
Deployment Outdoor Indoor Indoor Indoor Indoor Indoor Indoor Wall Plate/Desk Mount
Wi-Fi Standard 802.11ax (Wi-Fi 6) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6)
5GHz: 4x4 : 4SS
2.4GHz: 2x2 :2SS
Wi-Fi 6E 802.11ax
(WiFi 6 ) 2x2 : 2SS
2.4/6 + 5 GHz
802.11ax (Wi-Fi 6) 2x2 : 2SS
Wi-Fi Radios Dedicated third radio Dedicated fourth radio Dedicated third radio Dedicated fourth radio Dedicated third radio Dedicated third radio for scanning Dedicated third radio
Antenna Options Internal/External Internal/External Internal/External Internal Internal Internal/External Internal
Virtual BLE
USB
IoT Sensors Humidity, Pressure, Temperature Temperature,
Accelerometer
Humidity,
Pressure,
Temperature
Temperature, Accelerometer Temperature, Accelerometer Temperature, Accelerometer
Warranty One Year Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime
Frequencies Supported 2.4GHz
5GHz
2.4GHz
5GHz
6GHz
2.4GHz
5GHz
2.4GHz
5GHz
6GHz
2.4GHz
5GHz
2.4 GHz, 5 GHz, 6 GHz 2.4GHz
5GHz

Antenna Patterns:

AP24 5GHz Wi-Fi

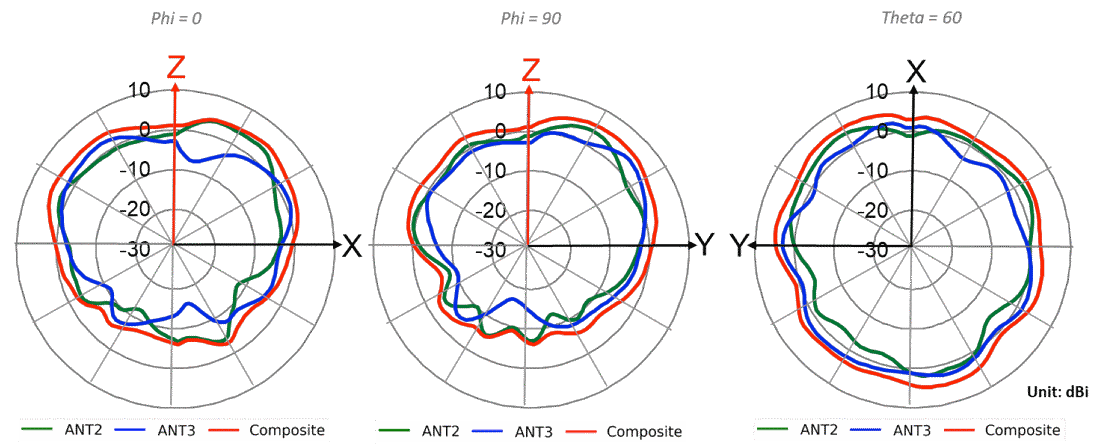

AP24 Wi-Fi @ 5150MHz

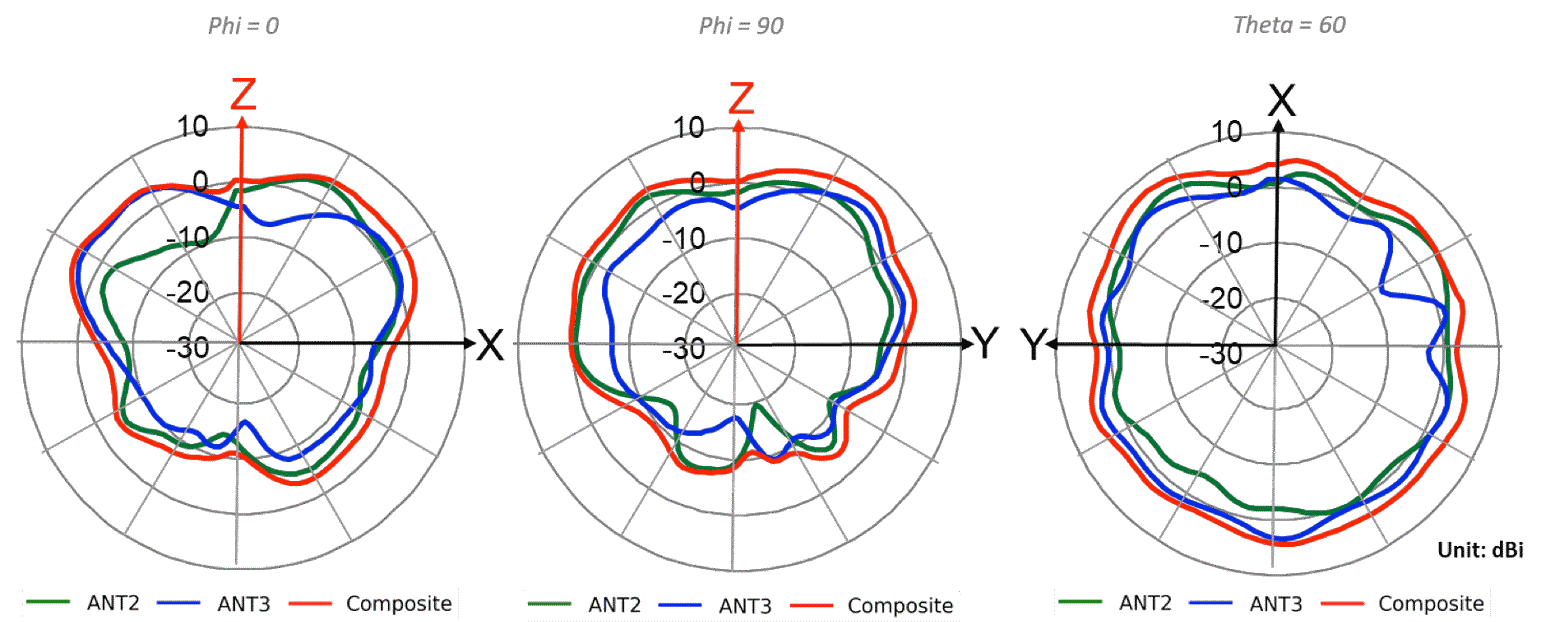

AP24 Wi-Fi @ 5550MHz

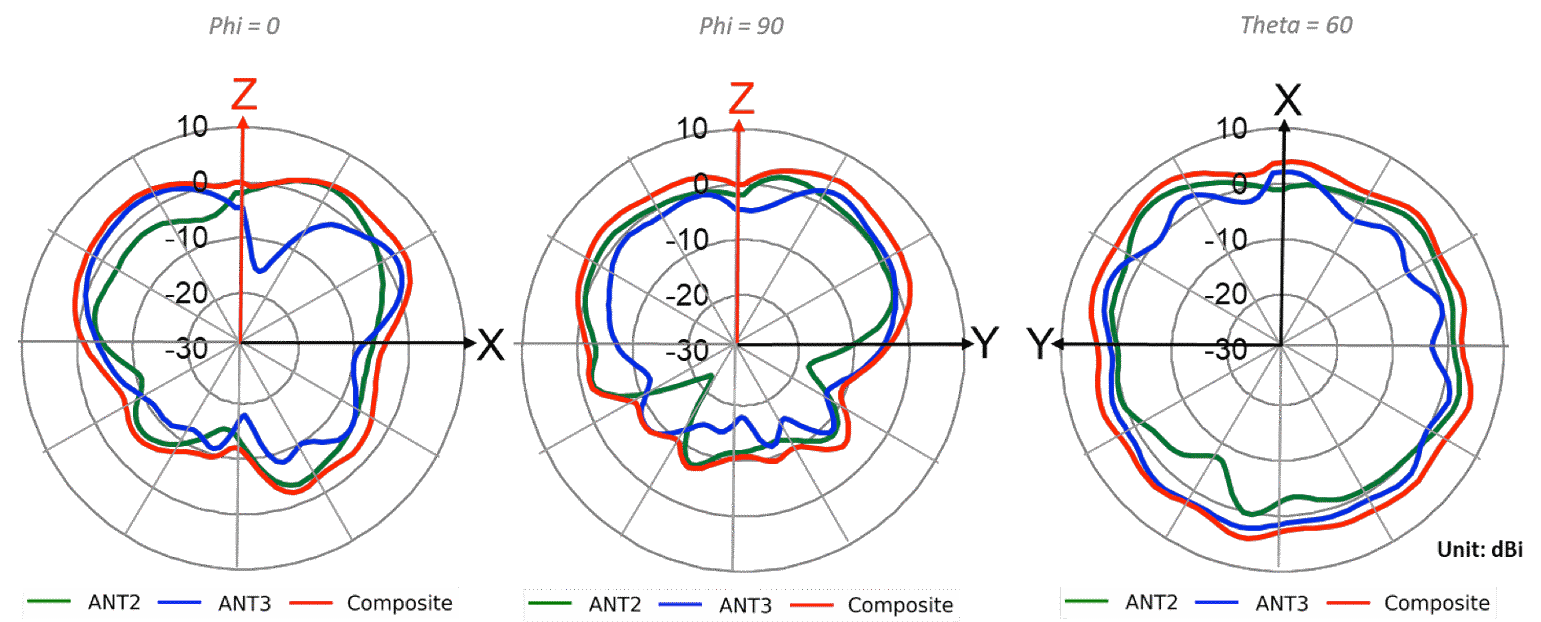

AP24 Wi-Fi @ 5850MHz


AP24 Dual Band Radio 2.4GHz Wi-Fi

AP24 Wi-Fi @ 2400MHz

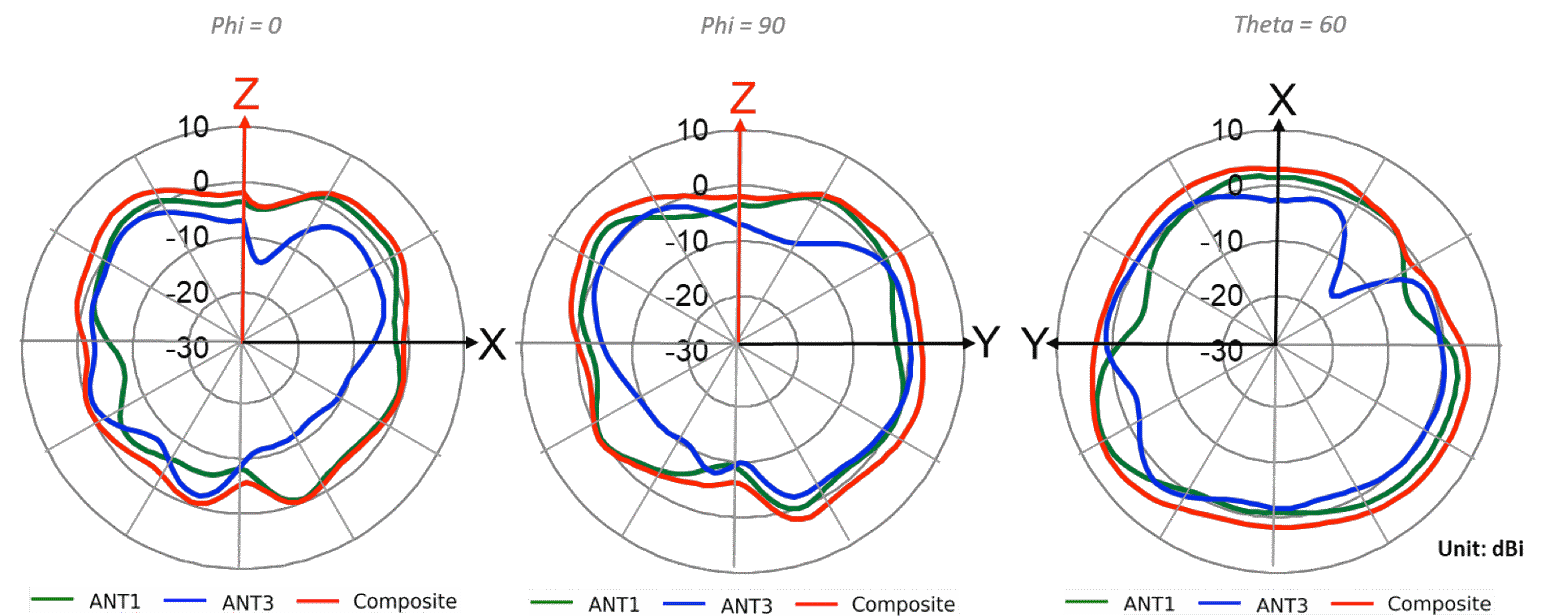

AP24 Wi-Fi @ 2450MHz

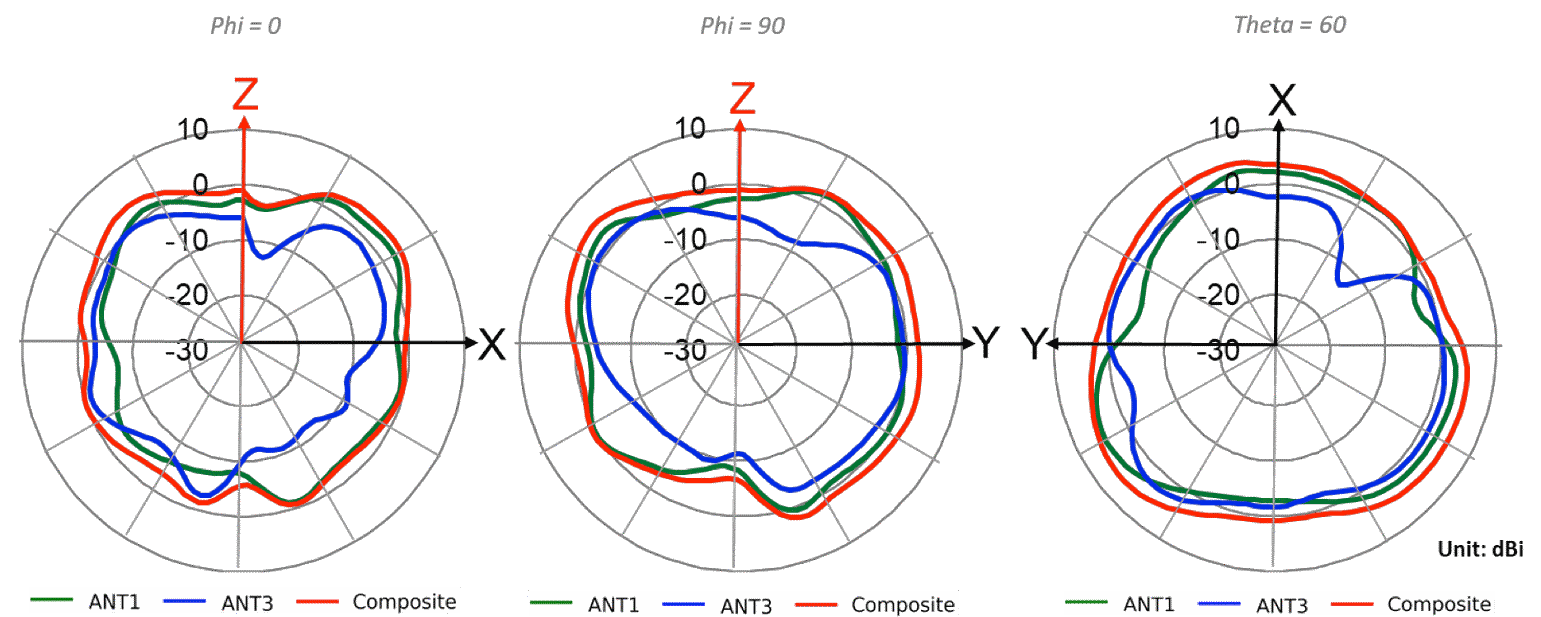

AP24 Wi-Fi @ 2500MHz


AP24 Dual Band Radio 6GHz Wi-Fi

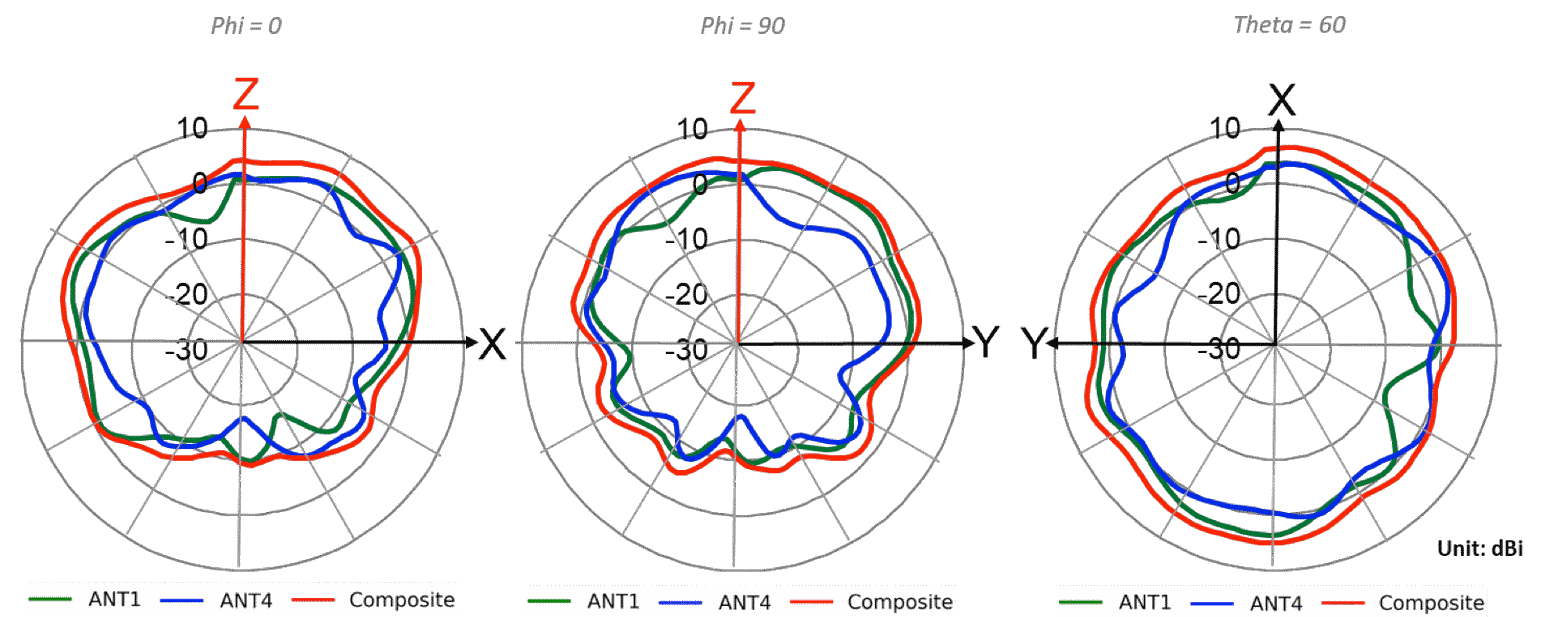

AP24 Wi-Fi @ 5925MHz

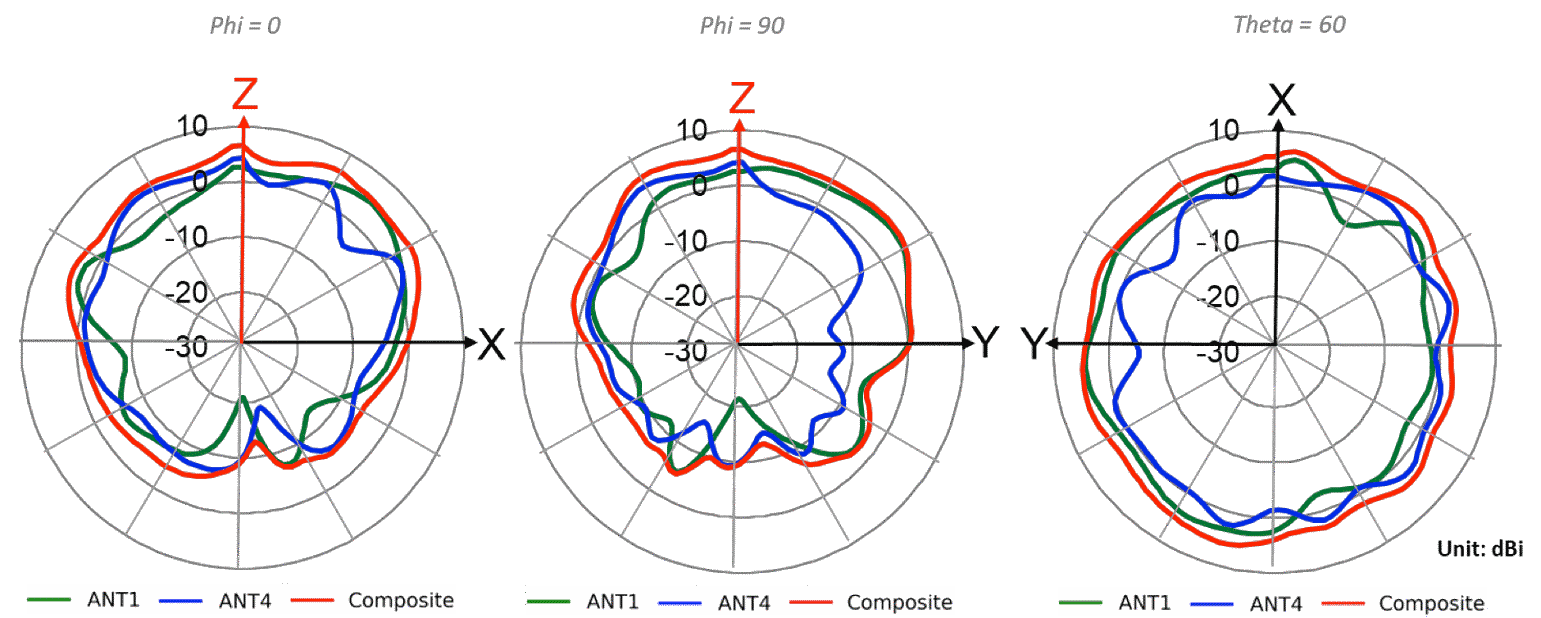

AP24 Wi-Fi @ 6565MHz

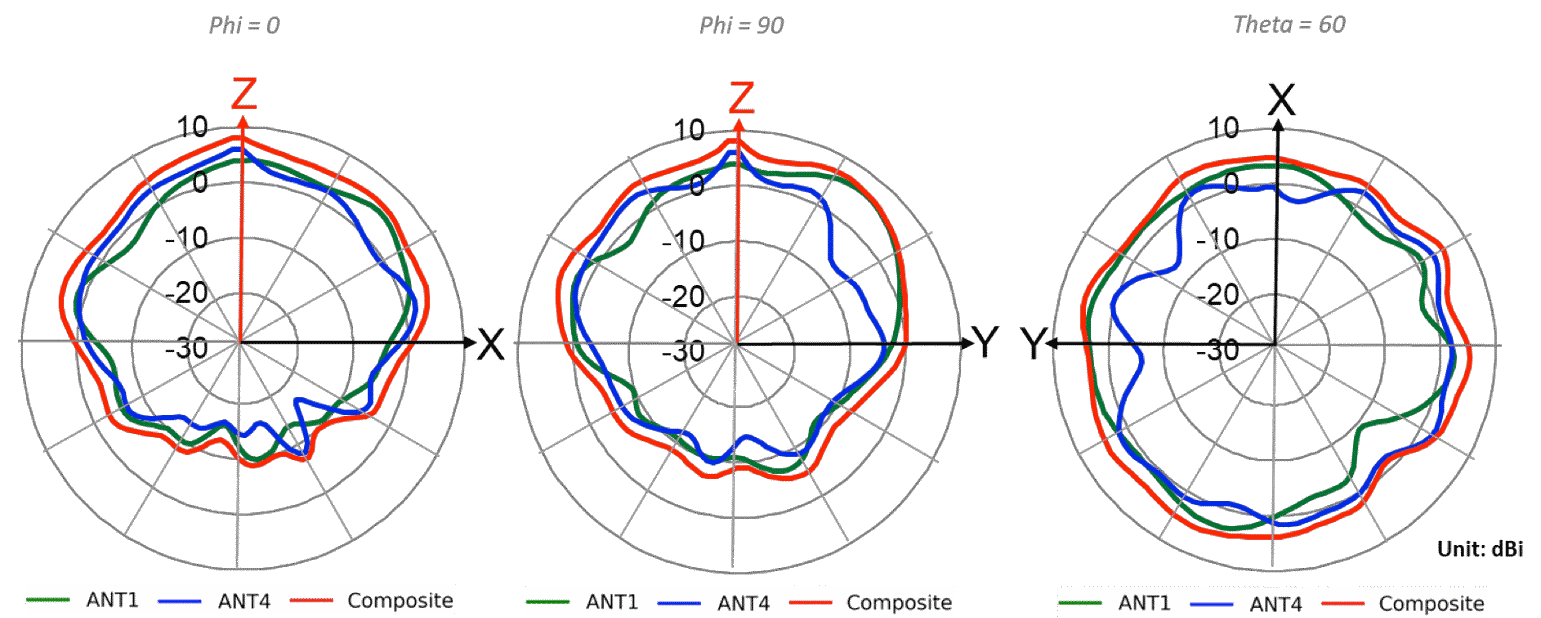

AP24 Wi-Fi @ 7125MHz


AP24 802.15.4/BLE Radio

AP24 Omni BLE @ 2440MHz

Views:

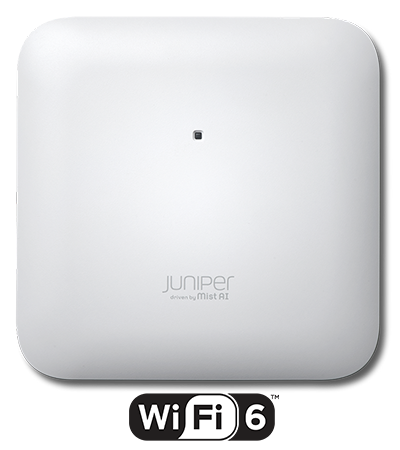

Top View
Top View

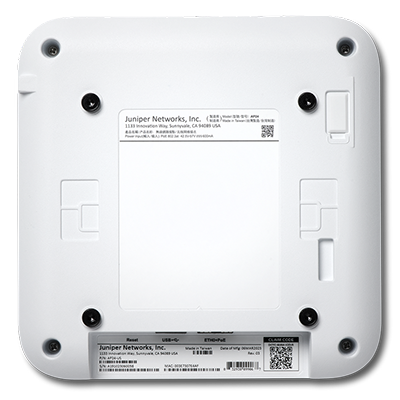

Bottom View
Bottom View

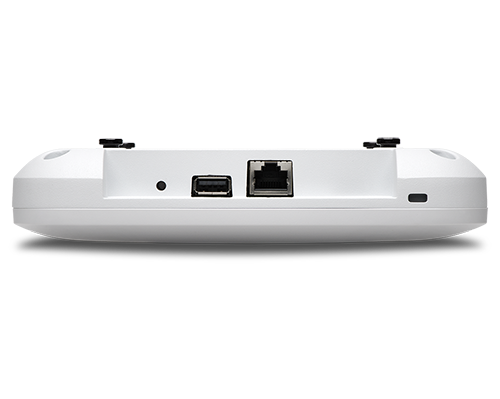

Ports View
Ports View

Documentation:

Download the Juniper AP24 Access Point Datasheet (PDF).
