Juniper Networks ACX5096
Universal Metro Router


Juniper Networks ACX5096

Juniper Networks Products
ACX Series Universal Access Routers
USA: FREE Ground ShippingACX5096 96-port SFP+/SFP Universal Metro Router, AC Version
96 SFP+/SFP ports, 8 QSFP ports, redundant fans and AC power supplies; No right to use IP-VPN
#ACX5096-AC-L2-L3
List Price: $60,000.00
Our Price: $48,300.00
USA: FREE Ground ShippingACX5096 96-port SFP+/SFP Universal Metro Router, DC Version
96 SFP+/SFP ports, 8 QSFP ports, redundant fans and DC power supplies; No right to use IP-VPN
#ACX5096-DC-L2-L3
List Price: $60,000.00
Our Price: $48,300.00

Click here to jump to more pricing!

Overview:

The ACX5400 line of Universal Metro Routers is ideal for Ethernet service aggregation and packet-optical convergence. Offering GbE, 10GbE, 25GbE, and 100GbE connectivity options in a 1 U footprint, the ACX5400 line gives you the flexibility to create high-density networks with the interfaces you need to support your unique traffic demands.

Choose between Ethernet aggregation, Ethernet aggregation with MACsec encryption, and Ethernet aggregation plus packet-optical convergence. This configuration flexibility allows you to build a 100GbE infrastructure even in environments where rack space for networking devices and cooling systems is limited.

Aggregate Multiple Services with High Availability

Built with metro service aggregation in mind, the ACX5400 line features 100GbE interfaces for network-to-network interface (NNI) uplinks. It fully supports E-Line, E-LAN, E-Tree, and E-Access, as well as IP-over-IP VPN services. The router supports your business with high-availability networking features such as unified in-service software upgrades (ISSU) and the Junos operating system for consistent delivery of mission-critical voice and video traffic.

The ACX5400 line also offers service virtualization on a dedicated, customizable, kernel-based virtual machine (KVM). The KVM executes operational scripts and programs for network performance monitoring and analysis.

High-Density Networking in Space-Challenged Environments

With the ACX5400 line, you can build high-density telco infrastructures that are both efficient and scalable. For sites with rack space limitations, these 1 U platforms support up to 48 GbE or 10GbE ports, up to 16 25GbE ports (via QSFP28 breakout), and up to six 100GbE ports. The packet-optical convergence version provides two 100/200G CFP2 DCO line-side ports for easy and highly flexible multilayer deployments.

The ACX5400 line satisfies the growing demand for access network capacity, fueled by a new generation of Gigabit-capable Passive Optical Networks (GPON), 4G/5G wireless base stations, and 10GbE user-to-network interface (UNI) service demands from business and residential customers.

The router’s 100-Gbps NNI ports deliver ample capacity for aggregation uplinks. Combine them with software capabilities designed for business, direct Internet, direct public cloud, residential fiber, and mobile backhaul and access networks for an optimal metro access and aggregation solution.

Using the Junos OS and Junos SDK, the ACX5400 line is fully customizable to meet your specific needs. Its scalability and reliability improve the user experience and lowers the cost associated with maintaining and updating your network infrastructure.

Product Description

The Juniper Networks ACX5000 line of Universal Metro Routers is a response to a shift in metro network architectures where the access and aggregation layers are extending operational intelligence from the service provider edge to the access network. The ACX5000 line simplifies access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. Based on architectural simplification and cost reduction, the ACX5000 line gives service providers and enterprises the ability to adopt a true universal metro paradigm. The ACX5000 line also provides high capacity, scalability, and a packet optical transport layer, while delivering industry-leading performance with a wide range of port densities and interface types. Table 1 provides an overview of the interfaces supported on each ACX5000 model.

ACX5000 Line Product Family
Juniper Networks ACX Series Universal Metro Routers offer a wide range of metro solutions, including the ACX500, ACX1000, ACX2000, ACX4000, ACX5000, and ACX6000 lines. The ACX5000 line includes five models.

  • ACX5048: The ACX5048 provides full duplex throughput of 1.44 Tbps in a 1 U platform. Built to handle 1GbE/10GbE capacity and density, it supports 48 1GbE/ 10GbE and six 40GbE interfaces, making it ideal for Metro Ethernet access and aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.
  • ACX5096: The ACX5048 provides full duplex throughput of 1.44 Tbps in a 1 U platform. Built to handle 1GbE/10GbE capacity and density, it supports 48 1GbE/ 10GbE and six 40GbE interfaces, making it ideal for Metro Ethernet access and aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.
  • ACX5448: The ACX5448 offers 48 1GbE/10GbE aggregation ports, four highcapacity 40GbE/100GbE uplink ports, and full Metro Ethernet and IP/MPLS VPN services in a space- and cost-optimized platform, smoothing the transition from 10GbE to 100GbE for service providers preparing for the emerging 5G rollout.
  • ACX5448-D: The ACX5448-D supports 36 1GbE/10GbE, two 40GbE/100GbE, and two 100G/200G dense wavelength-division multiplexing (DWDM) ports using CFP2- DCO. It is designed for packet-optical convergence to reduce TCO and to help service providers prepare for the emerging 5G rollout.
  • ACX5448-M: The ACX5448-M supports 44 1GbE/10GbE and six 40GbE/100GbE ports, as well as advanced security capabilities such as Media Access Control Security (MACsec) on all 1GbE/10GbE ports.

Architecture and Key Components:

Powered by Juniper Networks Junos® operating system, the ACX5000 line complements Juniper Networks MX Series 5G Universal Routing Platforms through a flexible and scalable service provider and enterprise branch routing portfolio optimized to support rapidly growing mobile, video, and cloud computing applications. The ACX Series introduces Juniper’s proven IP/MPLS leadership from core and edge into the access layers of the network. Maintaining relative simplicity in the access network, the ACX Series supports a rich suite of L2, L3, and IP/MPLS functionality to allow large-scale seamless MPLS networks with simplified service provisioning and operations.

  • Seamless MPLS: The ACX5000 line of routers supports both Ethernet bridging and MPLS. Growing demands for bandwidth are accompanied by network growth in terms of number of nodes. In some cases, users demand to scale their networks up to tens of thousands of nodes. Seamless MPLS architecture enables scale and service flexibility by decoupling physical topology from transport and service layers. With a seamless MPLS architecture, service providers can leverage their existing investment in MPLS in the core and edge and extend the operational benefit into the access layer. This enables greater network service flexibility and higher scaling parameters of the metro area network (MAN), where Metro Ethernet services can span multiple network segments and be seamlessly terminated at any point of the network or cloud.

  • Junos OS: A reliable, high-performance, modular network operating system, Junos OS is supported across all of Juniper’s physical and virtual routing, switching, and security platforms. Junos OS improves network operations and increases service availability, performance, and security with features like low-latency multicast, comprehensive quality of service (QoS), unified in-service software upgrade (unified ISSU), and Junos Continuity, which eliminates the risk and complexity of OS upgrades. Junos OS comes with embedded scripting tools and APIs, which enable automation of many routine tasks and practical integration with any operator’s back-end management tools. With secure programming interfaces, the Juniper Extension Toolkit (JET), versatile scripting support, and integration with popular orchestration frameworks, Junos OS offers flexible options for DevOps-style management that can unlock more value from the network.

  • Management: Juniper Networks Junos Space® Network Management Platform provides comprehensive management with broad fault, configuration, accounting, performance, and security management (FCAPS) capabilities for both device and service-level management. For device management, Junos Space supports Network Configuration Protocol (NETCONF), CLI, and SNMP v1/v2/v3, while its northbound APIs support easy integration with existing network management systems (NMS) and operations/business support systems (OSS/BSS).

Running on the Junos Space platform, Junos Space Connectivity Services Director ensures effortless end-to-end service provisioning of Metro Ethernet (E-Line, E-LAN, E-Tree, E-Access), VPLS, L3VPN, Ethernet VPN (EVPN), and MPLS, using a simple interface to design, validate, and manage these services. Another application of Junos Space, Cross Provisioning Platform helps service providers provision E-Line, L2/L3 VPN services, and virtual private LAN service (VPLS) between Juniper devices and those from third-party vendors.

Features and Benefits:

The ACX Series delivers new levels of programmability, reliability, and scalability to service provider and enterprise networks. The ACX Series portfolio improves customer satisfaction while lowering the total cost of operating, maintaining, and updating the network infrastructure.

Zero Touch Deployment

Based on Junos OS automation capabilities, ACX Series routers support a zero touch deployment (ZTD) feature that significantly reduces the time required to install and provision new equipment, resulting in lower OpEx, lower TCO, and greater operational efficiency. ZTD also reduces the complexity of deploying MPLS in the access layer.

Advanced Security Services

The ACX5000 line of routers enables advanced security services such as MACsec to protect against potential vulnerabilities in the network as well as subscriber traffic.

High Availability and Reliability

Junos Continuity and unified ISSU features eliminate the downtime risks associated with implementing new hardware or upgrading operating systems. Junos Continuity eliminates OS upgrades and system reboots when adding new hardware to ACX Series routers— a plug-in package provides the drivers and support files needed to bring the hardware online. Unified ISSU reduces the risks associated with OS upgrades by enabling upgrades between two different Junos OS releases (major or minor) with no control plane disruption and minimal traffic disruption on the forwarding plane.

MEF CE 2.0 Compliant

The ACX5000 line of routers are all Metro Ethernet Forum (MEF) CE 2.0-compliant and are able to support all carrier Ethernet services, including E-Line, E-LAN, E-Tree, and E-Access.

Full Feature Set of L2, L3, IP/MPLS

ACX Series routers support a full feature set of L2, L3, and IP/ MPLS, enabling service providers to not only monetize Layer 2 Ethernet services, but also Layer 3, IP/IP-VPN, and other services.

Features ACX5048 ACX5096 ACX5448 ACX5448-D ACX5448-M
Throughput 1.44 Tbps 1.44 Tbps 800 Gbps 800 Gbps 800 Gbps
IEEE 802.3 bridging
IEEE 802.1q
IEEE 802.1ad (Q-in-Q)
VLAN ID manipulation for outer/inner: swap/pop/push
Rapid Spanning Tree Protocol (RSTP)/VLAN Spanning Tree
Protocol (VSTP)/Multiple Spanning Tree Protocol (MSTP)
ERPS G.8032v1 - - -
ERPS G8032v2 - - -
Link Aggregation Control Protocol (LACP)
Enhanced load balancing based on L2-L4 header info
Link Layer Discovery Protocol (LLDP)
Layer 2 bridge protocol data unit (BPDU) tunneling/MAC rewrite
IPv4
IPv6
RPF
Equal-cost multipath (ECMP)
Enhanced load balancing based on L2-L4 header info
OSPF
IS-IS
BGP
Indirect/composite next hop
RSVP
LDP
RSVP-TE
BGP-LU
RSVP fast reroute (FRR)
Segment routing - -
IEEE 802.3 bridge domain
PWE (T-LDP)
L2VPN (BGP)
VPLS (T-LDP/BGP/LDP autodiscovery)
EVPN E-Line (PWE) - -
EVPN E-Line (FXC) - -
EVPN over MPLS - -
Layer 3 VPN
Integrated routing and bridging (IRB)
Stateless filters L2-L4
8 queues per port with schedulers and shaping
Classification based on 802.1p, DiffServ code point (DSCP),
IP-precedence, EXP bit
Single-rate policer ingress/egress
Two-rate three-color policer ingress/egress
Per-port egress shaping
H-QoS 1 1 1
Bidirectional Forwarding Detection (BFD)
Connectivity fault management (CFM)
Y.1731
RFC2544 2 1,2 1,2
TWAMP - -
Protocol Independent Multicast (PIM)
Internet Group Management Protocol (IGMP)
IGMP snooping
BITS/1pps/10 MHz - -
(1 PPS and 10
MHz-out only)

(1 PPS and 10
MHz-out only)

(1 PPS and 10
Mhz-out only)
1588v2 BC - -
1588v2 Transparent
1588v2 over IP
1588v2 over Ethernet 1 1 1
Synchronous Ethernet - -
L2 storm control
IEEE 802.1AE/802.1X industry-compliant 256AES MACsec - - - -
CLI
NETCONF
SNMP v2/v3
SLAX/Python on-box scripting tools
ZTD
YANG

1 Planned for future release.
2 Supports RFC2544 reflector mode only generator in future release..

Specifications:

Model: ACX5048 ACX5096 ACX5448 ACX5448-D ACX5448-M
Dimensions (W x H x D) 17.36 x 1.72 x 20.48 in
(44.09 x 4.37 x 52.02 cm)
17.36 x 3.46 x 22.44 in
(44.09 x 8.8 x 57 cm)
17.26 x 1.7 x 21.81 in
(43.84 x 4.33 x 55.41 cm)
17.26 x 1.7 x 21.81 in
(43.84 x 4.33 x 55.41 cm)
17.26 x 1.7 x 25.50 in
(43.84 x 4.33 x 64.77 cm)
Weight (lb/kg) fully configured 21.8 lb (9.9 kg) 32.5 lb (14.74 kg) 22.45 lb (10.18 kg) 23 lb (10.43 kg) 26.12 lb (11.85 kg)
Power (DC) -36 to -72 VDC power -36 to -72 VDC power -44 VDC min, -72 VDC max; 7.5 A min, -12 A max -44 VDC min, -72 VDC max; 7.5 A min, -12 A max -44 VDC min, -72 VDC max; 7.5 A min, -12 A max
Power (AC) 110-240 VAC 110-240 VAC 100 VAC (min) to 240 VAC (max); 47 Hz (min) to 60 Hz (max); 3.5 A (min) to 5 A (max) 100 VAC (min) to 240 VAC (max); 47 Hz (min) to 60 Hz (max); 3.5 A (min) to 5 A (max) 100 VAC (min) to 240 VAC (max); 47 Hz (min) to 60 Hz (max); 3.5 A (min) to 5 A (max)
Maximum power draw ~350 W (with optical SFPs) ~550 W (with optical SFPs) ~450 W (with optical SFPs) ~525 W (with optical SFPs) ~550 W (with optical SFPs)
Operating temperature 32° to 104° F (0° to 40° C) 32° to 104° F (0° to 40° C) 32° to 104° F (0° to 40° C)1
32° to 131° F (0° to 55° C)2
32° to 104° F (0° to 40° C)1
32° to 131° F (0° to 55° C)2
32° to 104° F (0° to 40° C)1
32° to 131° F (0° to 55° C)2
Humidity 5%-90% RH noncondensing 5%-90% RH noncondensing 5%-90% RH noncondensing 5%-90% RH noncondensing 5%-90% RH noncondensing

1 Long term operating range.
2 Short term operating range.

Approvals:


  ACX5048 ACX5096 ACX5448 ACX5448-D ACX5448-M
Safety Approvals
CAN/CSA-C22.2 No. 60950-1 Yes Yes Yes Yes Yes
UL 60950-1 Yes Yes Yes Yes Yes
EN 60950-1 Yes Yes Yes Yes Yes
IEC 60950-1—CB Scheme Yes Yes Yes Yes Yes
EN 60825-1 Yes Yes Yes Yes Yes
EMC
AS/NZS CISPR22 Class A Yes Yes Yes Yes Yes
VCCI Class A Yes Yes Yes Yes Yes
FCC Part 15 Class A Yes Yes Yes Yes Yes
IECS-003 Issue 4  Yes Yes Yes Yes Yes
BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions Yes Yes Yes Yes Yes
KN 22, Class A Yes Yes Yes Yes Yes
CISPR 32/EN55032: 2012 European Radiated Emissions Class A Yes Yes Yes Yes Yes
AS/NZS CISPR22 Class B - - Yes Yes Yes
IECS-003 Issue 4 Class B - - Yes - -
BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions - - Yes - -
CISPR 32/EN55032: 2012 European Radiated Emissions Class B - - Yes - -
EN-61000-4-6 Low Frequency Common Immunity Yes Yes Yes Yes Yes
EN-61000-4-11 Voltage Dips and Sags Yes Yes Yes Yes Yes
CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics Yes Yes Yes Yes Yes
ETSI (European Telecommunications Standardization Institute)
EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements  Yes Yes Yes Yes Yes
ETSI EN 300 019-2-1 (2000)—Storage, Class T1.2 Yes Yes Yes Yes Yes
ETSI EN 300 019-2-2 (1999)—Transportation, Class T2.3 Yes Yes Yes Yes Yes
ETSI EN 300 019-2-3 (2003)—Stationary Use at Weather Protected Locations, Class T3.4 Yes Yes Yes Yes Yes
ETSI EN 300 019-2-3 (2003)—Stationary Use at Weather Protected Locations, Class T3.2 Yes Yes Yes Yes Yes
ETSI 300753 (1997)—Acoustic Noise Emitted by Telecommunications Equipment Yes Yes Yes Yes Yes
Other EMC Requirements
Deutsche Telekom 1TR9 (2008) EMC Specification Yes Yes Yes Yes Yes
British Telecom EMC Immunity Requirements (2007) Yes Yes Yes Yes Yes
NEBS
SR-3580 NEBS Criteria Levels (Level 3 Compliance) Yes Yes Yes Yes Yes
GR-63-CORE: NEBS, Physical Protection Yes Yes Yes Yes Yes
GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant) Yes Yes Yes Yes Yes
Telecomm Compliance
Device management: NETCONF, CLI, SNMP v1/v2/v3 Yes Yes Yes Yes Yes
End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS) Yes Yes Yes Yes Yes
Device and service-level fault management Yes Yes Yes Yes Yes
Device and service-level performance management Yes Yes Yes Yes Yes
Metro Ethernet Forum (MEF)
MEF CE2.0 compliant  Yes Yes Yes* Yes* Yes*

*Planned for MEF 3.0 certification in future release

Views:

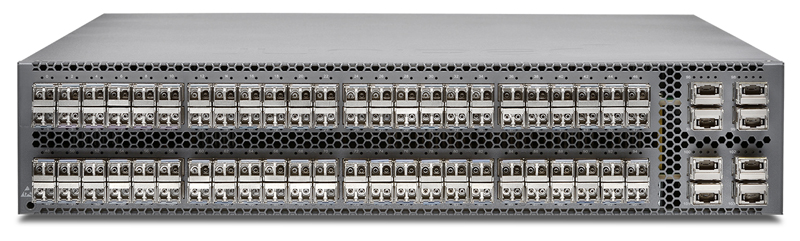

Top Front View
Top Front View

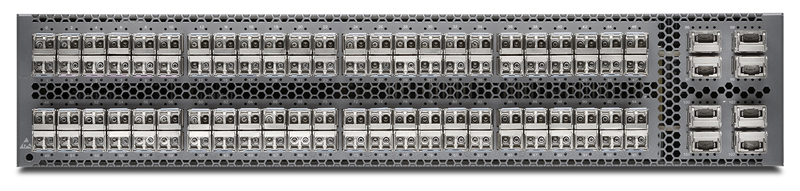

Front View
Front View

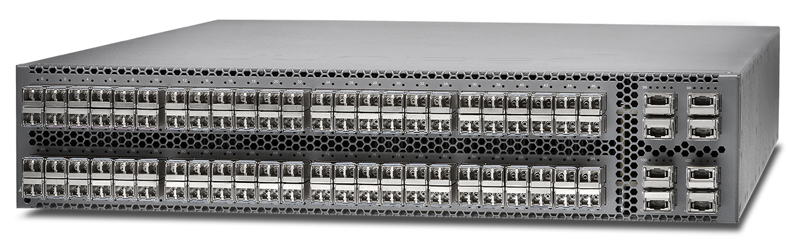

Left Angle View
Left Angle View

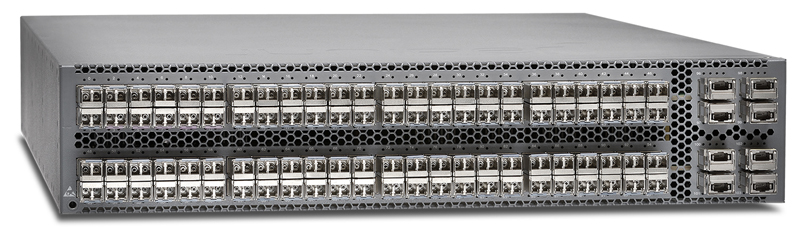

Right Angle View
Right Angle View
