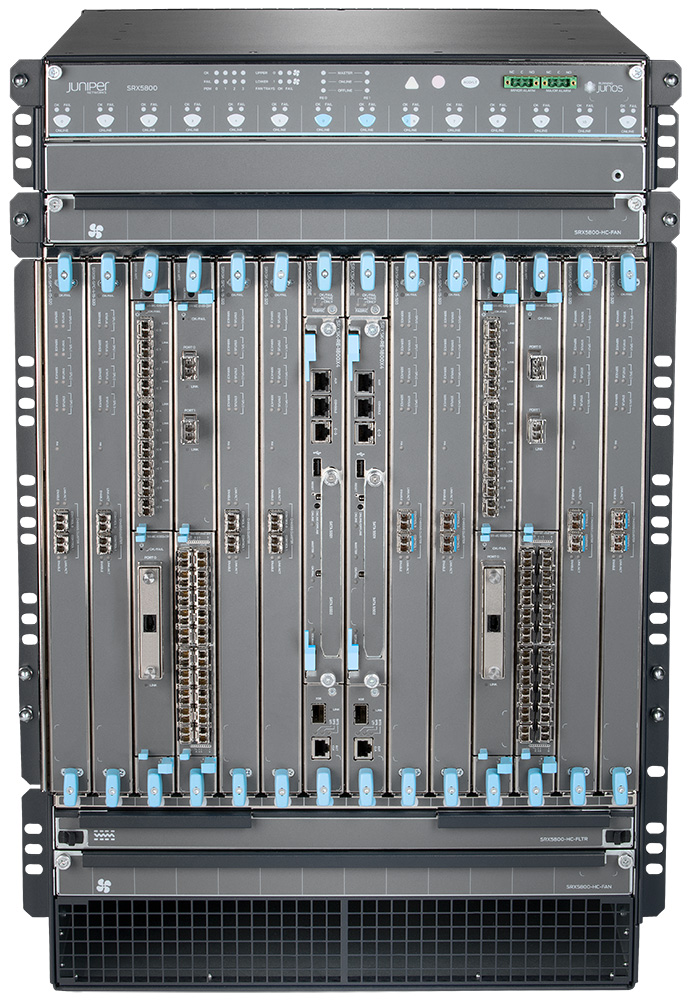

Juniper Networks SRX5800 Services Gateway
Uses Dynamic Services Architecture provided by Junos to scale integrated security and network capabilities


Juniper Networks SRX5800 Services Gateway

Juniper Networks Products
SRX Series Services Gateways
SRX5800 Base includes Chassis, Midplane, SRX5K-RE-1800X4, 2x SRX5K-SCBE, 2x AC HC PEM, 2x HC fan tray
Note: Supported by JUNOS release 12.1x47-D15 onwards
#SRX5800E-BASE-AC
List Price: $89,000.00
Our Price: $71,645.00
SRX 5800 Chassis includes Chassis, Midplane, SRX5K-RE-1800X4, 2x SRX5K-SCBE, 2x DC HC PEM, 2x HC fan tray
Note: Supported by JUNOS release 12.1x47-D15 onwards
#SRX5800E-BASE-DC
List Price: $89,000.00
Our Price: $71,645.00

More pricing below, click here!

SRX5800 Overview:

The award-winning SRX5800 Services Gateway supports more than 120 Gbps firewall and 30 Gbps IPS, as well as 350,000 connections per second and an industry record-breaking 10 million concurrent user sessions. Equipped with a full range of integrated security features, the massively scalable SRX5800 Services Gateway is ideal for securing large enterprise data centers, hosted or co-located data centers, and service provider infrastructures.

The SRX5800 Services Gateway is the market-leading security solution supporting up to 300 Gbps firewall, 100 million concurrent sessions, 100 Gbps IPS, and 450,000 connections per second. Equipped with the full range of security services, SRX5800 is ideally suited for securing large enterprise, hosted or co-located data centers, service provider core and cloud provider infrastructures, and mobile operator environments. The massive performance, scalability, and flexibility of the SRX5800 makes it ideal for densely consolidated processing environments, and the service density make it ideal for cloud and managed service providers.

Juniper Networks SRX Series Services Gateways are next-generation security platforms based on a revolutionary architecture offering outstanding protection, performance, scalability, availability, and security service integration. Custom designed for flexible processing scalability, I/O scalability, and services integration, the SRX Series exceeds the security requirements of data center consolidation and services aggregation. The SRX Series is powered by Junos OS, the same industry-leading operating system platform that keeps the world's largest networks available, manageable, and secure for the data center.

The Juniper Networks SRX5400, SRX5600, and SRX5800 Services Gateways are next-generation security platforms based on a revolutionary architecture that provides marketleading performance, scalability, and service integration. These devices are ideally suited for service provider, large enterprise, and public sector networks, including:

  • Cloud and hosting provider data centers
  • Mobile operator environments
  • Managed service providers
  • Core service provider infrastructures
  • Large enterprise data centers

Based on Juniper's dynamic services architecture, the SRX5000 line provides unrivaled scalability and performance. Each services gateway can support near linear scalability, with the addition of Services Processing Cards (SPCs) enabling a fully equipped SRX5800 to support up to 300 Gbps firewall throughput. The SPCs are designed to support a wide range of services, enabling future support of new capabilities without the need for servicespecific hardware. Using SPCs on all services ensures that there are no idle resources based on specific services being used—maximizing hardware utilization.

The scalability and flexibility of the SRX5000 line is supported by equally robust interfaces. The SRX5000 line employs a modular approach to interfaces, where each platform can be equipped with a flexible number of input/output cards (IOCs) that offer a wide range of connectivity options—from 1GbE to 100GbE interfaces. With the IOCs sharing the same interface slot as the SPCs, the gateway can be configured as needed to support the ideal balance of processing and I/O. Hence, each deployment of the SRX Series can be tailored to specific network requirements. With this flexibility, the SRX5800 can be configured to support more than 400GbE ports, or 220 10GbE, 22 100GbE, or 44 40GbE ports.

The scalability of both SPCs and IOCs in the SRX5000 line is enabled by the custom designed switch fabric. Supporting up to 960 Gbps of data transfer, the fabric enables realization of maximum processing and I/O capability available in any particular configuration. This level of scalability and flexibility facilitates future expansion and growth of the network infrastructure, providing unrivaled investment protection.

The tight service integration on the SRX Series is enabled by Juniper Networks Junos operating system. By combining the routing heritage of Junos OS and the security heritage of ScreenOS, the SRX Series is equipped with a robust list of services that include firewall, intrusion prevention system (IPS), denial of service (DoS), application security, Network Address Translation (NAT), and quality of service (QoS). In addition to the benefit of individual services, incorporating multiple security and networking services within one OS greatly optimizes the flow of traffic through the platform. Network traffic no longer needs to be routed across multiple data paths/cards or even disparate operating systems within a single gateway.

Junos OS also delivers carrier-class reliability to the already redundant SRX Series. The SRX Series enjoys the benefit of a single source OS, and single integrated architecture traditionally available on Juniper's carrier-class routers and switches.

Architecture and Key Components:


Service Processing Cards

As the "brains" behind the SRX5000 line, SPCs are designed to process all available services on the platform. Without the need for dedicated hardware for specific services or capabilities, there are no instances in which a piece of hardware is taxed to the limit while other hardware is sitting idle. SPCs are designed to be pooled together, allowing the SRX5000 line to expand performance and capacities with the introduction of additional SPCs, drastically reducing management overhead and complexity. The same SPCs are supported on both SRX5600 and SRX5800 Services Gateways.

Juniper offers the SPCII, a newer SPC with superior performance and scale. The SPCII also features in-service software and inservice hardware upgrades to ensure that security is always on. The SPCII is supported on the SRX5400, SRX5600, and SRX5800 Services Gateways.

Input Output Cards

To provide the most flexible solution, the SRX5000 line employs the same modular architecture for SPCs and IOCs. The SRX5000 line can be equipped with one or several IOCs, supporting the ideal mix of interfaces. With the flexibility to install an IOC or an SPC on any available slot, the SRX5000 line can be equipped to support the perfect blend of interfaces and processing capabilities to meet the needs of the most demanding environments.

Juniper offers the IOCII, a newer card with superior connectivity options. The IOCII offers the industry's first 100GbE as well as 40GbE and high-density 10GbE connectivity options. These options reduce the need for link aggregation when connecting high throughput switches to the firewall, as well as enabling increased throughput in the firewall itself. The IOCII is supported on all three platforms in the SRX5000 line of services gateways.

Features & Benefits:

Networking and Security

Juniper Networks SRX5000 line has been designed from the ground up to offer robust networking and security services.

Features Features Description Benefits
Purpose-built platform Built from the ground up on dedicated hardware designed for networking and security services. Delivers unrivaled performance and flexibility to protect high-speed network environments.
Scalable performance Offers scalable processing based on the Dynamic Services Architecture. Simple and cost-effective solution to leverage new services with appropriate processing.
System and network resiliency Provides carrier-class hardware design and proven OS. Offers the reliability needed for any critical high-speed network deployments without service interruption.
High availability (HA) Active/passive and active/active HA configurations using dedicated high availability interfaces. Achieve availability and resiliency necessary for critical networks.
Interface flexibility Offers flexible I/O options with modular cards based on the Dynamic Services Architecture. Offers flexible I/O configuration and independent I/O scalability to meet the port density requirements of demanding network environments.
Network segmentation Security zones, virtual LANs (VLANs), and virtual routers that allow administrators to deploy security policies to isolate subnetworks and use overlapping IP address ranges. Features the capability to tailor unique security and networking policies for various internal, external, and demilitarized zone (DMZ) subgroups.
Robust routing engine Dedicated routing engine that provides physical and logical separation to data and control planes. Enables deployment of consolidated routing and security devices, as well as ensuring the security of routing infrastructure—all via a dedicated management environment.
AppSecure Tightly integrated services on Junos OS including multi-gigabit firewall, IPsec VPN, IPS, DoS, application security, and other networking and security services. Unmatched integration ensuring network security against all level of attacks.
Stateful GPRS inspection Support for GPRS firewall in mobile operator networks. Enables the SRX5000 line to provide stateful firewall capabilities for protecting key GPRS nodes within mobile operator networks.
User identity-based access control enforcement Secure access to data center resources via tight integration of standards-based access control capabilities of Juniper Networks Junos Pulse Access Control Service and SRX5000 line. Enables agent-based and agentless identity security services for enterprise data centers by integrating the SRX5000 line with the standards-based access control capabilities of Junos Pulse Access Control Service. This integration enables administrative flexibility to manage a variety of user access, including corporate, guest, and mobile.
Unified threat management (UTM) Strong UTM capabilities, including IPS, antivirus, antispam, Web, and content filtering. Available on-box with preinstalled, expanding and adaptive capabilities that are quickly activated for zero-day, easy, and instant protection. Antivirus options are available from Sophos and Kaspersky, Web filtering from Websense, and antispam from Sophos. Best-in-class UTM protection with strong, highperformance content security leveraging intelligence from multiple expert security companies.
I/O card II The first firewall I/O card in the industry to offer 100GbE connectivity. The card includes a choice of ten 10GbE, two 40GbE, or one 100GbE I/O interfaces. Pairs well with SPCIIs for maximized firewall performance in any of the SRX5000 line of gateways. Increases connectivity efficiency with high throughput I/O interfaces. Reduces the need for link aggregation to the firewall and enables higher firewall throughput.
SPC card II Enables performance and scale with full, backwards compatibility to SRX5000 chassis and cards. Like current SPCs, these cards support in-service software and in-service hardware upgrades Delivers always-on security resiliency to meet your growing network performance needs.
AutoVPN One time hub configuration for site-to-site VPN for all spokes, even newly added ones. Configuration options include: routing, interfaces, IKE, and IPsec. Enables IT administrative time and cost savings with easy, no-touch deployment for IPsec VPN networks.


Traffic Inspection Methods

Juniper Networks SRX Series Services Gateways support various detection methods to accurately identify the application and traffic flow through the network.

Features Features Description Benefits
Application identification Identifies applications and tunneled applications independent of protocol and port numbers. Granular control over application traffic through smart FW policies.
Protocol anomaly detection Protocol usage against published RFCs is verified to detect any violations or abuse. Proactively protect network from undiscovered vulnerabilities.
Traffic anomaly detection Heuristic rules detect unexpected traffic patterns that may suggest reconnaissance or attacks. Proactively prevent reconnaissance activities or block distributed denial of service (DDoS) attacks.
IP spoofing detection The validity of allowed addresses inside and outside the network are checked. Permit only authentic traffic while blocking disguised source.
DoS detection Protection against SYN flood, IP, ICMP, and application attacks. Protect your key network assets from being overwhelmed by denial of service attacks.


Unified Threat Management Capabilities

Juniper Networks unified threat management (UTM) assures the highest level of network security with best-in-class protection and high performance content security leveraging intelligence from multiple expert security companies. Juniper UTM includes AppSecure, IPS, antivirus, antispam, Web filtering, and content filtering.

AppSecure

Juniper Networks AppSecure is a suite of next-generation security capabilities that utilize advanced application identification and classification to deliver greater visibility, enforcement, control and protection over the network.

Features Features Description Benefits
AppTrack Detailed analysis on application volume/usage throughout the network based on bytes, packets and sessions. Provides the ability to track application usage to help identify high-risk applications and analyze traffic patterns for improved network management and control.
AppFirewall Fine grained application control policies to allow or deny traffic based on dynamic application name or group names. Enhances security policy creation and enforcement based on applications and user roles rather than traditional port and protocol analysis.
AppQoS Set prioritization of traffic based on application information and contexts. Provides the ability to prioritize traffic as well as limit and shape bandwidth based on application information and contexts for improved application and overall network performance.
AppDoS Multi-stage detection methods used to identify and mitigate distributed denial of service attacks targeting applications. Prevent service disruptions due to targeted attacks at applications by filtering and blocking malicious traffic while allowing legitimate traffic.
Application signatures More than 700 signatures for identifying applications and nested applications. Applications are accurately identified and the resulting information can be used for visibility, enforcement, control and protection.
SSL inspection Inspection of HTTP traffic encrypted in SSL on any TCP/UDP port. Combined with application identification, provides visibility and protection against threats embedded in SSL encrypted traffic.


IPS Capabilities

Juniper Networks IPS capabilities offer several unique features that assure the highest level of network security.

Features Features Description Benefits
Stateful signature inspection Signatures are applied only to relevant portions of the network traffic determined by the appropriate protocol context. Minimize false positives and offer flexible signature development.
Protocol decodes More than 65 protocol decodes are supported along with more than 500 contexts to enforce proper usage of protocols. Accuracy of signatures is improved through precise contexts of protocols.
Signatures There are more than8,500 signatures for identifying anomalies, attacks, spyware, and applications. Attacks are accurately identified and attempts at exploiting a known vulnerability are detected.
Traffic normalization Reassembly, normalization, and protocol decoding are provided. Overcome attempts to bypass other IPS detections by using obfuscation methods.
Zero-day protection Protocol anomaly detection and same-day coverage for newly found vulnerabilities are provided. Your network is already protected against any new exploits.
Recommended policy Group of attack signatures are identified by Juniper Networks Security Team as critical for the typical enterprise to protect against. Installation and maintenance are simplified while ensuring the highest network security.
Active/active traffic monitoring IPS monitoring on active/active SRX5000 line chassis clusters. Support for active/active IPS monitoring including advanced features such as low impact chassis upgrades.
Packet capture IPS policy supports packet capture logging per rule. Conduct further analysis of surrounding traffic and determine further steps to protect target.


Content Security UTM Capabilities

The UTM services offered on the SRX5000 line of gateways include industry-leading antivirus, antispam, content filtering, and additional content security services.

Features Features Description Benefits
Antivirus Antivirus includes reputation-enhanced, cloud-based antivirus capabilities that detect and block spyware, adware, viruses, keyloggers, and other malware over POP3 HTTP, SMTP, IMAP, and FTP protocols. This service is provided in cooperation with Sophos Labs, a dedicated security company. Sophisticated protection from respected antivirus experts against malware attacks that can lead to data breaches and lost productivity.
Antispam Multilayered spam protection, up-to-date phishing URL detection, standards-based S/MIME, Open PGP and TLS encryption, MIME type and extension blockers are provided in cooperation with Sophos Labs, a dedicated security company. Protection against advanced persistent threats perpetrated through social networking attacks and the latest phishing scams with sophisticated e-mail filtering and content blockers.
Integrated Web filtering Enhanced Web filtering includes extensive category granulation (90+ categories) and a real-time threat score delivered with Websense, an expert Web security provider. Protection against lost productivity and the impact of malicious URLs as well as helping to maintain network bandwidth for business essential traffic.
Content filtering Effective content filtering based on MIME type, file extension, and protocol commands. Protection against lost productivity and the impact of extraneous or malicious content on the network to help maintain bandwidth for business essential traffic.


Centralized Management

Juniper Networks Junos Space Security Director delivers scalable and responsive security management that improves the reach, ease, and accuracy of security policy administration. It lets administrators manage all phases of the security policy lifecycle through a single Webbased interface, accessible via standard browsers. Junos Space Security Director centralizes application identification, firewall, IPS, NAT, and VPN security management for intuitive and quick policy administration.

Junos Space Security Director runs on the Junos Space Network Management Platform for highly extensible, network-wide management functionality, including ongoing access to Juniper and third-party Junos Space ecosystem innovations.

Modules:

Switch Fabric and Control Board (SCB)
At the heart of the Dynamic Services Architecture is the switch fabric and control board (SCB). The SCB transforms the chassis from a simple module enclosure into a highly effective mesh network. The purpose of the SCB is to allow all modules in the chassis to send traffic at extremely high bandwidth.

The Route Engine (RE)
The routing engine (RE) is tightly coupled with the functionality of the SCB and can be considered the central nervous system of the architecture. The RE is the control plane of the chassis, and provides overall management and communications to and from system administrators, as well as calculating route tables for routing network traffic.

Services Processing Card (SPC)
If the RE is the central nervous system of the chassis, the Service Processing Card (SPC), is the brain.SPCs are blades that provide the capacity to perform the heavy lifting of processing network packets.The chassis must have at least one SPC to operate.

The true elegance of this design is realized when more than one SPC is installed.Rather than the chassis now having two or more “brains,” as in traditional network architecture, the addition of a new SPC essentially results in a larger system that can perform many more tasks at a given time.

Input/Output Cards (IOC)
The chassis slots in the Dynamic Services Architecture are unique in that they are card-agnostic, allowing administrators to configure the architecture for their specific needs up to the limits of the chassis itself.For example, an organization that requires more processing capability, such as a military installation, may include more SPCs and fewer Input/Output cards (IOCs).An Internet service provider, on the other hand, may choose to provide a great deal of I/O for its customer traffic, while needing less raw processing power. As business requirements change, administrators may easily add IOCs and SPCs to reconfigure the architecture as needed.

Based on this agnostic slot design, the IOC can therefore scale independently — the chassis may be equipped with as many IOCs as there are available slots (with at least one slot for the SPC).The dynamic nature of the architecture then automatically maps each session to a SPC in real time as new sessions are received to be processed.

Technical Specifications:


Model: SRX5400 SRX5600 SRX5800
  SRX5400 SRX5600 SRX5800
Maximum Layer 3 Performance and Capacity1
Junos OS version tested Junos OS 12.1 Junos OS 12.1 Junos OS 12.1
Firewall performance (large packets) 65 Gbps 130 Gbps 300 Gbps
Firewall performance (IMIX) 30 Gbps 65 Gbps 130 Gbps
Firewall packets per second (64 bytes) 9.8 Mpps 20 Mpps 50 Mpps
Maximum AES256+SHA-1 VPN performance 43 Gbps 75 Gbps 150 Gbps
Maximum 3DES+SHA-1 VPN performance 43 Gbps 75 Gbps 150 Gbps
Maximum IPS performance 22 Gbps 50 Gbps 100 Gbps
Maximum AppFW performance 50 Gbps 80 Gbps 160 Gbps
Maximum concurrent sessions 28 Million 100 million 100 million
New sessions/second (sustained, tcp, 3way) 450,000 450,000 450,000
Maximum security policies 80,000 80,000 80,000
Maximum users supported Unrestricted Unrestricted Unrestricted
Network Connectivity SRX5400 SRX5600 SRX5800
Maximum available slots for IOCs 2 5 11
LAN interface options 10 x 10-Gigabit Ethernet IOCII
2 x 40-Gigabit Ethernet IOCII
1 x 100-Gigabit Ethernet IOCII
40 x 1-Gigabit Ethernet SFP
4 x 10-Gigabit Ethernet XFP (SR or LR)
16 x 1-Gigabit Ethernet Flex IOC
4 x 10-Gigabit Ethernet XFP Flex IOC
40 x 1- Gigabit Ethernet SFP
4 x 10-Gigabit Ethernet XFP (SR or LR)
16 x 1-Gigabit Ethernet Flex IOC
4 x 10-Gigabit Ethernet XFP Flex IOC
Processing Scalability SRX5400 SRX5600 SRX5800
Maximum available slots for SPCs 2 5 5
SPC options SPCII: Quad CPU with 128 GB memory SPC: Dual CPU with 8 GB memory
SPCII: Quad CPU with 128 GB memory
SPC: Dual CPU with 8 GB memory
SPCII: Quad CPU with 128 GB memory
Dimensions SRX5400 SRX5600 SRX5800
Dimensions (W x H x D) 17.45 x 8.7 x 24.5 in
(44.3 x 22.1 x 62.2 cm)
17.5 x 14 x 23.8 in
(44.5 x 35.6 x 60.5 cm)
17.5 x 27.8 x 23.5 in
(44.5 x 70.5 x 59.7 cm)
Weight (device and power supply) Fully configured 128 lb
(58.1 kg)
Fully Configured: 180 lb
(81.7 kg)
Fully Configured: 334 lb
(151.6 kg)
Power SRX5400 SRX5600 SRX5800
Power supply (AC) 100 to 240 VAC 100 to 240 VAC 200 to 240 VAC
Power supply (DC) -40 to -60 VDC -40 to -60 VDC -40 to -60 VDC
Maximum power 4,100 watts (AC high capacity) 3,180 watts (AC standard capacity)
4,100 watts (AC high capacity)
5,100 watts (AC standard capacity)
8,200 watts (AC high capacity)
Environment SRX5400 SRX5600 SRX5800
Operating temperature – long term 41° to 104° F (5° to 40° C) 41° to 104° F (5° to 40° C) 41° to 104° F (5° to 40° C)
Operating temperature – short term2 23° to 131° F (-5° to 55° C) 23° to 131° F (-5° to 55° C) 23° to 131° F (-5° to 55° C)
Humidity – long term 5% to 85% noncondensing 5% to 85% noncondensing 5% to 85% noncondensing
Humidity – short term2 5% to 93% noncondensing but not to exceed 0.026kg water/kg of dry air 5% to 93% noncondensing but not to exceed 0.026kg water/kg of dry air 5% to 93% noncondensing but not to exceed 0.026kg water/kg of dry air
Certifications SRX5400 SRX5600 SRX5800
Safety certifications Yes Yes Yes
Electromagnetic compatibility (EMC) certifications Yes Yes Yes
Designed for NEBS Level 3 Yes Yes Yes
NIST FIPS-140-2 Level 2 No Yes (with Junos OS 10.4R4) Yes (with Junos OS 10.4R4)
ISO Common Criteria NDPP+TFFW EP No Yes (with Junos OS 12.1x44) Yes (with Junos OS 12.1x44)
ICSA Network Firewall No Yes Yes
ICSA IPsec No Yes Yes
USGv6 No Yes (with Junos OS 11.4R1) Yes (with Junos OS 11.4R1)
3GPP TS 20.060 Compliance* SRX5400 SRX5600 SRX5800
R6: 3GPP TS 29.060 version 6.21.0 Yes Yes Yes
R7: 3GPP TS 29.060 version 7.3.0 Yes Yes Yes
R8: 3GPP TS 29.060 version 8.3.0 Yes Yes Yes
1. Performance, capacity and features listed are based on systems runninng Junos OS 10.2 and are measured under ideal testing conditions. Actual results may vary based on Junos OS releases and by deployments.
2. Short term is not greater than 96 consecutive hours, and not greater than 15 days in 1 year

* SRX5000 line gateways operating with Junos software release 10.0 and later are compliant with the R6, R7, and R8 releases of 3GPP TS 20.060 with the following exceptions (not supported on the SRX5000 line):
- Section 7.5A Multimedia Broadcast and Multicast Services (MBMS) messages
- Section 7,5B Mobile Station (MS) info change messages
- Section 7.3.12 Initiate secondary PDP context from GGSN

Additional Features and Comparison:

Model: SRX5400 SRX5600 SRX5800
  SRX5400 SRX5600 SRX5800
Firewall
Network attack detection Yes Yes Yes
DoS and DDoS protection Yes Yes Yes
TCP reassembly for fragmented packet protection Yes Yes Yes
Brute-force attack mitigation Yes Yes Yes
SYN cookie protection Yes Yes Yes
Zone-based IP spoofing Yes Yes Yes
Malformed packet protection Yes Yes Yes
IPsec VPN SRX5400 SRX5600 SRX5800
Site-to-site tunnels 15,000 15,000 15,000
Tunnel interfaces 15,000 15,000 15,000
DES (56-bit), 3DES (168-bit), and AES encryption Yes Yes Yes
MD5 and SHA-1 authentication Yes Yes Yes
Manual key, IKE, PKI (X.509) Yes Yes Yes
Perfect forward secrecy (DH groups) 1,2,5 1,2,5 1,2,5
Prevent replay attack Yes Yes Yes
Remote access VPN Yes Yes Yes
Redundant VPN gateways Yes Yes Yes
Intrusion Prevention System SRX5400 SRX5600 SRX5800
Modes of operation: In-line and in-line tap Yes Yes Yes
Active/active traffic monitoring Yes Yes Yes
Stateful protocol signatures Yes Yes Yes
Attack detection mechanisms Stateful signatures, protocol anomaly detection (zero-day coverage), application identification Stateful signatures, protocol anomaly detection (zero-day coverage), application identification Stateful signatures, protocol anomaly detection (zero-day coverage), application identification
Attack response mechanisms Drop connection, close connection,
session packet log, session summary, email
Drop connection, close connection,
session packet log, session summary, email
Drop connection, close connection,
session packet log, session summary, email
Attack notification mechanisms Structured Syslog Structured Syslog Structured Syslog
Worm protection Yes Yes Yes
Simplified installation through recommended policies Yes Yes Yes
Trojan protection Yes Yes Yes
Spyware/adware/keylogger protection Yes Yes Yes
Other malware protection Yes Yes Yes
Application denial of service protection Yes Yes Yes
Protection against attack proliferation from infected systems Yes Yes Yes
Reconnaissance protection Yes Yes Yes
Request and response-side attack protection Yes Yes Yes
Compound attacks—combines stateful signatures and protocol anomalies Yes Yes Yes
Create custom attack signatures Yes Yes Yes
Access contexts for customization 500+ 500+ 500+
Attack editing (port range, other) Yes Yes Yes
Stream signatures Yes Yes Yes
Protocol thresholds Yes Yes Yes
Stateful protocol signatures Yes Yes Yes
Approximate number of attacks covered 8,000+ 8,000+ 8,000+
Detailed threat descriptions and remediation/patch info Yes Yes Yes
Create and enforce appropriate application-usage policies Yes Yes Yes
Attacker and target audit trail and reporting Yes Yes Yes
Frequency of updates Daily and emergency Daily and emergency Daily and emergency
GPRS Security SRX5400 SRX5600 SRX5800
GPRS stateful firewall Yes Yes Yes
GTP tunnels 1,000,000 1,000,000 1,000,000
Destination Network Address Translation SRX5400 SRX5600 SRX5800
Destination NAT with PAT Yes Yes Yes
Destination NAT within same subnet as ingress interface IP Yes Yes Yes
Destination addresses and port numbers to one single address and a specific port number (M:1P) Yes Yes Yes
Destination addresses to one single address (M:1) Yes Yes Yes
Destination addresses to another range of addresses (M:M) Yes Yes Yes
Source Network Address Translation SRX5600 SRX5800
Static Source NAT – IP-shifting DIP Yes Yes Yes
Source NAT with PAT – port-translated Yes Yes Yes
Source NAT without PAT – fix-port Yes Yes Yes
Source NAT – IP address persistency Yes Yes Yes
Source pool grouping Yes Yes Yes
Source pool utilization alarm Yes Yes Yes
Source IP outside of the interface subnet Yes Yes Yes
Interface source NAT – interface DIP Yes Yes Yes
Oversubscribed NAT pool with fallback to PAT when the address pool is exhausted Yes Yes Yes
Symmetric NAT Yes Yes Yes
Allocate multiple ranges in NAT pool Yes Yes Yes
Proxy ARP for physical port Yes Yes Yes
Source NAT with loopback grouping – DIP loopback grouping Yes Yes Yes
User Authentication and Access Control SRX5400 SRX5600 SRX5800
Built-in (internal) database Yes Yes Yes
RADIUS accounting Yes Yes Yes
Web-based authentication Yes Yes Yes
Public Key Infrastructure (PKI) Support SRX5400 SRX5600 SRX5800
PKI certificate requests (PKCS 7 and PKCS 10) Yes Yes Yes
Automated certificate enrollment (SCEP) Yes Yes Yes
Certificate authorities supported Yes Yes Yes
Self-signed certificates Yes Yes Yes
Virtualization SRX5400 SRX5600 SRX5800
Maximum number of security zones 2,000 2,000 2,000
Maximum number of virtual routers 2,000 2,000 2,000
Maximum number of VLANs 4,096 4,096 4,096
Logical Systems 32 32 32
Routing SRX5400 SRX5600 SRX5800
BGP instances 1,000 1,000 1,000
BGP peers 2,000 2,000 2,000
BGP routes 1,000,0002 1,000,0002 1,000,0002
OSPF instances 400 400 400
OSPF routes 1,000,0002 1,000,0002 1,000,0002
RIP v1/v2 instances 50 50 50
RIP v2 table size 30,000 30,000 30,000
Dynamic routing Yes Yes Yes
Static routes Yes Yes Yes
Source-based routing Yes Yes Yes
Policy-based routing Yes Yes Yes
Equal-cost multipath (ECMP) Yes Yes Yes
Reverse path forwarding (RPF) Yes Yes Yes
Multicast Yes Yes Yes
IPv6 SRX5400 SRX5600 SRX5800
Firewall/stateless filters Yes Yes Yes
Dual stack IPv4/IPv6 firewall Yes Yes Yes
RIPng Yes Yes Yes
BFD, BGP Yes Yes Yes
ICMPv6 Yes Yes Yes
OSPFv3 Yes Yes Yes
Class of service Yes Yes Yes
Mode of Operation SRX5400 SRX5600 SRX5800
Layer 2 (transparent) mode Yes Yes Yes
Layer 3 (route and/or NAT) mode Yes Yes Yes
IP Address Assignment SRX5400 SRX5600 SRX5800
Static Yes Yes Yes
Dynamic Host Configuration Protocol (DHCP) Yes Yes Yes
Internal DHCP server Yes Yes Yes
DHCP relay Yes Yes Yes
Traffic Management QoS SRX5400 SRX5600 SRX5800
Maximum bandwidth Yes Yes Yes
RFC2474 IP DiffServ in IPv4 Yes Yes Yes
Firewall filters for COS Yes Yes Yes
Classification Yes Yes Yes
Scheduling Yes Yes Yes
Shaping Yes Yes Yes
Intelligent Drop Mechanisms (WRED) Yes Yes Yes
Three-level scheduling Yes Yes Yes
Weighted round-robin for each level of scheduling Yes Yes Yes
Priority of routing protocols Yes Yes Yes
Traffic management/policing in hardware Yes Yes Yes
High Availability SRX5400 SRX5600 SRX5800
Active/passive, active/active Yes Yes Yes
Low impact chassis cluster upgrades Yes Yes Yes
Configuration synchronization Yes Yes Yes
Session synchronization for firewall and IPsec VPN Yes Yes Yes
Session failover for routing change Yes Yes Yes
Device failure detection Yes Yes Yes
Link and upstream failure detection Yes Yes Yes
Dual control links Yes Yes Yes
Interface link aggregation/LACP Yes Yes Yes
Redundant data and control links* Yes Yes Yes
Management SRX5400 SRX5600 SRX5800
WebUI (HTTP and HTTPS) Yes Yes Yes
Command-line interface (console) Yes Yes Yes
Junos Space Security Director Yes Yes Yes
Administration SRX5400 SRX5600 SRX5800
Local administrator database support Yes Yes Yes
External administrator database support Yes Yes Yes
Restricted administrative networks Yes Yes Yes
Root admin, admin, and read-only user levels Yes Yes Yes
Software upgrades Yes Yes Yes
Configuration rollback Yes Yes Yes
Logging/Monitoring SRX5400 SRX5600 SRX5800
Structured System Log Yes Yes Yes
SNMP (v2) Yes Yes Yes
Traceroute Yes Yes Yes
1. Performance, capacity and features listed are based on systems runninng Junos OS 10.2 and are measured under ideal testing conditions. Actual results may vary based on Junos OS releases and by deployments.
2. Maximum number of BGP and OSPF routes recommended is 100,000.

*To enable dual control links on the SRX5000 line, two SRX5K-RE-13-20 modules must be installed on each cluster member.

Pricing Notes:

SRX Series Services Gateways
SRX5800 Base includes Chassis, Midplane, SRX5K-RE-1800X4, 2x SRX5K-SCBE, 2x AC HC PEM, 2x HC fan tray
Note: Supported by JUNOS release 12.1x47-D15 onwards
#SRX5800E-BASE-AC
List Price: $89,000.00
Our Price: $71,645.00
SRX 5800 Chassis includes Chassis, Midplane, SRX5K-RE-1800X4, 2x SRX5K-SCBE, 2x DC HC PEM, 2x HC fan tray
Note: Supported by JUNOS release 12.1x47-D15 onwards
#SRX5800E-BASE-DC
List Price: $89,000.00
Our Price: $71,645.00
AppSecure Subscriptions for SRX5800 -Learn More
1-year subscription for AppSecure and IPS updates for SRX5800
#SRX5800-APPSEC-A-1
List Price: $75,000.00
Our Price: $71,587.00
3-year subscription for AppSecure and IPS updates for SRX5800
#SRX5800-APPSEC-A-3
List Price: $180,000.00
Our Price: $171,810.00
5-year subscription for AppSecure and IPS updates for SRX5800
#SRX5800-APPSEC-A-5
List Price: $300,000.00
Our Price: $286,350.00
Juniper Care
Juniper Care Core Support for SRX5800E-BASE
#SVC-COR-SRX5800E
List Price: $5,806.00
Our Price: $5,542.00
Juniper Care CorePlus Support for SRX5800E-BASE
#SVC-CP-SRX5800E
List Price: $6,366.00
Our Price: $6,076.00
Juniper Care NextDay Onsite Support for SRX5800E-BASE
#SVC-NDCE-SRX5800E
List Price: $9,094.00
Our Price: $8,680.00
Juniper Care NextDay Support for SRX5800E-BASE
#SVC-ND-SRX5800E
List Price: $6,995.00
Our Price: $6,677.00
Juniper Care SameDay Onsite Support for SRX5800E-BASE
#SVC-SDCE-SRX5800E
List Price: $15,320.00
Our Price: $14,623.00
Juniper Care SameDay Support for SRX5800E-BASE
#SVC-SD-SRX5800E
List Price: $12,242.00
Our Price: $11,685.00
Line Components
40x1Gig SFP Ethernet I/O Card for SRX 5000, no transceivers
#SRX5K-40GE-SFP
List Price: $100,000.00
Our Price: $80,500.00
4x10Gig XFP Ethernet I/O Card for SRX 5000, no transceivers
#SRX5K-4XGE-XFP
List Price: $100,000.00
Our Price: $80,500.00
Blank Panel for SRX5K-FPC-IOC
#SRX5K-FPC-BLANK
List Price: $300.00
Our Price: $246.00
SRX 5000 Flex IOC
- Supports 2 pluggable port modules
#SRX5K-FPC-IOC
List Price: $40,000.00
Our Price: $32,200.00
SRX5K Route Engine, 1.3Ghz, 2GB DRAM
#SRX5K-RE-13-20
List Price: $22,000.00
Our Price: $17,710.00
SRX5K Switch Control Board
#SRX5K-SCB
List Price: $15,000.00
Our Price: $12,075.00
SRX5K Service Processing Card
#SRX5K-SPC-2-10-40
List Price: $100,000.00
Our Price: $80,500.00
SRX 5000 Flex IOC 16 port gig SFP port module
#SRX-IOC-16GE-SFP
List Price: $15,000.00
Our Price: $12,075.00
SRX 5000 Flex IOC 16 port gig RJ-45 10/100/1000 port module
#SRX-IOC-16GE-TX
List Price: $15,000.00
Our Price: $12,075.00
SRX 5000 Flex IOC 4 port 10 Gig XFP port module
Note: Transceivers not included
#SRX-IOC-4XGE-XFP
List Price: $25,000.00
Our Price: $20,125.00
MIC with 10x10GE SFP+ Interfaces, Optics sold separately
#SRX-MIC-10XG-SFPP
List Price: $45,000.00
Our Price: $36,225.00
MIC with 1x100GE CFP Interface, Optics sold separately
#SRX-MIC-1X100G-CFP
List Price: $52,000.00
Our Price: $41,860.00
MIC with 2x40GE QSFP+ Interfaces, Optics sold separately
#SRX-MIC-2X40G-QSFP
List Price: $37,500.00
Our Price: $30,187.00
Spares
SRX5800 chassis, backplane installed - no Fan
Note: Fan tray not included.
#SRX5800-CHAS
List Price: $25,000.00
Our Price: $20,125.00
SRX5800 Craft Interface
#SRX5800-CRAFT
List Price: $3,000.00
Our Price: $2,415.00
SRX5800 high capacity fan tray
#SRX5800-HC-FAN
List Price: $3,000.00
Our Price: $2,415.00
SRX5800 high capacity fan filter
#SRX5800-HC-FLTR
List Price: $1,500.00
Our Price: $1,207.00
SRX5800 High Capacity AC Power Supply
Note: Requires Junos 10.4 or later
#SRX5800-PWR-4100-AC
List Price: $5,000.00
Our Price: $4,025.00
SRX 5800 High Capacity DC Power supply for 4200W
#SRX5800-PWR-4100-DC-S
List Price: $5,000.00
Our Price: $4,025.00
SRX/SSG Spares
25 tamper evident labels for FIPS140-2 deployments
#JNPR-FIPS-TAMPER-LBLS
List Price: $100.00
Our Price: $80.00
Power Cables
AC Power Cord, US (NEMA LOCKING), C19, 20A/250V, 2.5m, Right Angle
#CBL-M-PWR-RA-TWLK-US
List Price: $75.00
Our Price: $60.00
AC Power Cord, USA/Canada (N6/20), C19, 20A/250V, 2.5m, Right Angle
#CBL-M-PWR-RA-US
List Price: $75.00
Our Price: $60.00
Transceivers
Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module
Note: Substitute with JX-SFP-1GE-LH if necessary.
#SRX-SFP-1GE-LH
List Price: $6,000.00
Our Price: $4,830.00
Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module
Note: Substitute with JX-SFP-1GE-LX if necessary.
#SRX-SFP-1GE-LX
List Price: $1,000.00
Our Price: $805.00
Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module
Note: Substitute with JX-SFP-1GE-SX if necessary.
#SRX-SFP-1GE-SX
List Price: $500.00
Our Price: $402.00
Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable)
Note: Substitute with JX-SFP-1GE-T if necessary.
#SRX-SFP-1GE-T
List Price: $400.00
Our Price: $322.00
10GE 40km single-mode pluggable interface
Note: Substitute with XFP-10GE-ER if necessary.
#SRX-XFP-10GE-ER
List Price: $10,000.00
Our Price: $8,050.00
10GE XFP pluggable transceiver; singlemode 1310nm 10km reach
Note: Substitute with XFP-10GE-LR if necessary.
#SRX-XFP-10GE-LR
List Price: $4,000.00
Our Price: $3,220.00
10GE short reach multi-mode pluggable interface
Note: Substitute with XFP-10GE-SR if necessary.
#SRX-XFP-10GE-SR
List Price: $3,000.00
Our Price: $2,415.00
