Juniper Networks SRX3400 Services Gateway
Uses Dynamic Services Architecture provided by Junos to scale integrated security and network capabilities

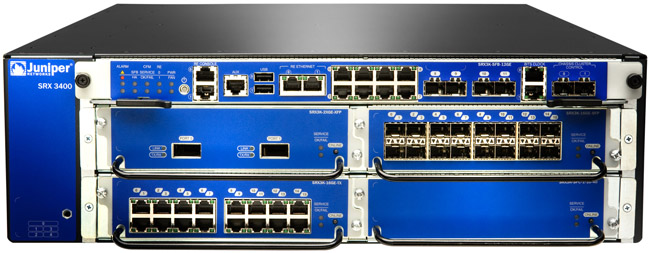

Juniper Networks SRX3400 Services Gateway

Juniper Networks Products
SRX Series Services Gateways
SRX3400 Chassis, Midplane, Fan, RE, SFB-12GE, AC PEM - no power cord - no SPC - no NPC
Note: C19 straight power cord required. Optics (SFP) not included. HA-control requires SFP.
#SRX3400BASE-AC
List Price: $18,000.00
Our Price: $17,100.00
SRX3400 Chassis, Midplane, Fan, RE, SFB-12GE, DC2 PEM - no SPC - no NPC
Note: Do not mix DC and DC2 power supplies in one chassis. Optics (SFP) not included. HA-control requires SFP.
#SRX3400BASE-DC2
List Price: $19,000.00
Our Price: $18,050.00

More pricing below, click here!

SRX3400 Overview:

The SRX3400 Services Gateway supports up to 20 Gbps firewall, 6 Gbps firewall and IPS, or 6 Gbps of IPsec VPN, and up to 175,000 new connections per second. This SRX Services Gateway is ideal for securing and segmenting data center network infrastructures, aggregating a variety of different security solutions, and enforcing unique per-zone security policies in small to midsize server farms and hosting sites.

The SRX3400 Services Gateway uses the same SPCs, IOCs and NPCs as the SRX3600 and can support up to 20 Gbps firewall, 6 Gbps firewall and IPS, or 6 Gbps of IPsec VPN, along with up to 175,000 new connections per second. The SRX3400 is ideally suited for securing and segmenting enterprise data centers/network infrastructure as well as aggregation of various security solutions. The capability to support unique security policies per zones and its ability to scale with the growth of the network makes the SRX3400 an ideal deployment for small to midsized server farms , hosting sites, or mobile operators. The SRX3400 Services Gateway is also managed by Juniper Networks Network and Security Manager.

Juniper Networks SRX3000 line of services gateways is the next-generation solution for securing the ever-increasing network infrastructure and applications requirements for both enterprise and service provider environments. Designed from the ground up to provide flexible processing scalability, I/O scalability, and high integration, the SRX3000 line can meet the network and security requirements of data center hyperconsolidation, rapid managed services deployments, and aggregation of security solutions. Incorporating the routing heritage and service provider reliability of Junos OS with the rich security heritage of ScreenOS, the SRX3000 line offers the high-feature/ service integration necessary to secure modern network infrastructure and applications.

Juniper Networks® SRX3400 Services Gateway and SRX3600 Services Gateway are next-generation security platforms that deliver market-leading performance, scalability and service integration in a mid-sized form factor. These devices are ideally suited for medium to large enterprise, public sector and service provider networks, including:

  • Enterprise server farms/data centers
  • Securing mobile operator environments
  • Aggregation of departmental or segmented security solutions
  • Cloud and hosting provider data centers
  • Managed services deployments

Based on an innovative mid-plane design and Juniper’s dynamic services architecture, the SRX3000 line resets the bar in price/performance for enterprise and service provider environments. Each services gateway can support near linear scalability with each additional Services Processing Card (SPC), enabling the SRX3600 to support up to 30 Gbps of firewall throughput. The SPCs are designed to support a wide range of services enabling future support of new capabilities without the need for service-specific hardware. Using SPCs on all services ensures that there are no idle resources based on specific services in operation—maximizing hardware utilization.

Market leading flexibility and price/performance of the SRX3000 line comes from the modular architecture. Based on Juniper’s dynamic services architecture, the gateway can be equipped with a flexible number of I/O cards (IOCs), network processing cards (NPCs) and service processing cards (SPCs)—allowing the system to be configured to support the ideal balance of performance and port density enabling each deployment of the Juniper Networks SRX Series Services Gateways to be tailored to specific network requirements. With this flexibility, the SRX3600 can be configured to support more than 100 Gbps interfaces with choices of Gigabit Ethernet or 10-Gigabit Ethernet ports; firewall performance from 10 to 30 Gbps; and services processing to match specific business needs.

The switch fabric employed in the SRX3000 line enables the scalability of SPCs, NPCs and IOCs. Supporting up to 320 Gbps of data transfer, the fabric enables the realization of maximum processing and I/O capability available in any particular configuration. This level of scalability and flexibility facilitates future expansion and growth of the network infrastructure, providing unrivaled investment protection.

The flexibility of the SRX3000 line extends beyond the innovation and proven benefit of the dynamic services architecture. Enabling the installation of SPCs on both the front and the back of the SRX3000 line, the mid-plane design delivers market-leading flexibility and scalability. By doubling the number of SPCs supported in half the rack space needed, the SRX3000 line offers not only underlying architectural innovation but also an innovative physical design.

The tight service integration on SRX Series Services Gateways is enabled by Juniper Networks Junos® operating system. By combining the routing heritage of Junos OS and the security heritage of ScreenOS®, the SRX Series Services Gateways are equipped with a robust list of features that include firewall, intrusion prevention system (IPS), denial of service (DoS), application security, Network Address Translation (NAT), and quality of service (QoS). In addition, incorporating multiple networking and security services under a single OS greatly optimizes the flow of traffic through the platform. With Junos OS, the SRX Series enjoys the benefit of a single source OS, single release train, and one architecture that is also available across Juniper’s carrier-class routers and switches.

Architecture and Key Components:

The SRX3400 Services Gateway uses the same SPCs, IOCs and NPCs as the SRX3600 and can support up to 20 Gbps firewall, 6 Gbps firewall and IPS, or 6 Gbps of IPsec VPN, along with up to 175,000 new connections per second. The SRX3400 is ideally suited for securing and segmenting enterprise data centers/network infrastructure as well as aggregation of various security solutions. The capability to support unique security policies per zones and its ability to scale with the growth of the network makes the SRX3400 an ideal deployment for small to midsized server farms , hosting sites, or mobile operators. The SRX3400 Services Gateway is also managed by Juniper Networks Network and Security Manager.

SRX3000 Line Service Processing Cards*

As the “brains” behind the SRX3000 line, SPCs are designed to process all available services on the platform. By eliminating the need for dedicated hardware for specific services or capabilities, there are no instances in which any piece of hardware is taxed to the limit while other hardware sits idle. SPCs are designed to be pooled together, allowing the SRX3000 line to expand performance and capacities with the introduction of additional SPCs, drastically reducing management overhead and complexity. The same SPCs are supported on both the SRX3600 and SRX3400. (Note: A minimum of one NPC and one SPC is required for proper system functionality.)

SRX3000 Line I/O Cards*

In addition to supporting an ideal mix of built-in copper, small form-factor pluggable transceiver (SFP) and high availability (HA) ports, the SRX3000 line allows the greatest I/O port density of any comparable offering in the same class. Each services gateway in the SRX3000 line can be equipped with one or several IOCs, each supporting either 16-gigabit interfaces (16 x 1 copper or fiber Gigabit Ethernet), or 20-gigabit interfaces (2 x 10 Gigabit XFP Ethernet). With the flexibility to provide multiple IOCs, the SRX3000 line can be equipped to support an ideal balance between interfaces and processing capabilities. (Note: A minimum of one NPC and one SPC is required for proper system functionality.)

SRX3000 Line Network Processing Cards*

To ensure maximum processing performance and flexibility, the SRX3000 line utilizes NPCs to distribute inbound and outbound traffic to the appropriate SPCs and IOCs, apply QoS, and enforce DoS/distributed denial of service (DDoS) protections. The SRX3600 can be configured to support one to three NPCs, while the SRX3400 can be configured to support one or two NPCs. Providing additional NPCs to the SRX3000 line allows organizations to tailor the solution to fit their specific performance requirements. (Note: A minimum of one NPC and one SPC is required for proper system functionality.)

*The Juniper Networks SRX3000 line utilizes the same market leading, high-performance dynamic architecture as the SRX5000 line, but in a mid-plane form factor. The SRX3000 line SPCs, IOCs, and NPCs are based on a common form-factor module (CFM) design and are not compatible with the SRX5000 line. Likewise, all SRX5000 line modules are not compatible with the SRX3000 line.

Features & Benefits:

Networking and Security

The SRX3000 line has been designed from the ground up to offer robust networking and security services.

Features Features Description Benefits
Purpose-built platform Built from the ground up on dedicated hardware— designed for networking and security services. Delivers unrivaled performance and flexibility to protect high-speed network environments.
Scalable performance Offers scalable processing based on the Dynamic Services Architecture. Provides a simple and cost-effective solution to leverage new services with appropriate processing.
System and network resiliency Provides carrier-class hardware design and proven OS. Offers reliability needed for any critical high-speed network deployments.
High availability (HA) Active/passive and active/active HA configurations using dedicated HA-control interfaces. Achieve availability and resiliency necessary for critical networks.
Interface flexibility Offers flexible I/O options including on-board ports and modular CFM I/O cards. Offers flexible I/O configuration and independent I/O scalability to meet the port density requirements of multiple network environments.
Network segmentation Provides security zones, VLANs, and virtual routers that allow administrators to deploy security policies to isolate guests and regional servers or databases. Features the capability to tailor unique security and networking policies for various internal, external, and DMZ subgroups.
Robust routing engine Dedicated routing engine that provides physical and logical separation to data and control planes. Enables deployment of consolidated routing and security devices, as well as ensuring the security of routing infrastructure—all via a dedicated management environment.
Comprehensive threat protection Tightly integrated services on Junos OS including multi-gigabit firewall, IPsec VPN, IPS, DoS, application security, and other networking and security services. Offers unmatched integration, ensuring network security against all level of attacks.
Stateful GPRS inspection Support for GPRS firewall in mobile operator networks. Enables the SRX3000 line to provide stateful firewall capabilities for protecting key GPRS nodes within mobile operator networks.
Role-based/identity-based access control enforcement Secure access to data center resources via tight integration of Juniper Networks Unified Access Control and SRX3000 line. Enables user- and identity-based security services for enterprise data centers by integrating the SRX3000 line with the standards-based access control capabilities of Juniper Networks Unified Access Control.


Traffic Inspection Methods

The SRX Series supports various detection methods to accurately identify the application and traffic flow through the network.

Features Features Description Benefits
Protocol anomaly detection Protocol usage against published RFCs is verified to detect any violations or abuse. Proactively protect network from undiscovered vulnerabilities.
Traffic anomaly detection Heuristic rules detect unexpected traffic patterns that may suggest reconnaissance or attacks. Proactively prevent reconnaissance activities or block DDoS attacks.
IP spoofing detection Validate IP addresses by checking allowed addresses inside and outside the network. Permit only authentic traffic while blocking disguised sources.
DoS detection Protection against SYN flood, IP, ICMP, and application attacks. Protect your key network assets from being overwhelmed by denial of service attacks.


AppSecure

Juniper Networks AppSecure is a suite of next-generation security capabilities that utilize advanced application identification and classification to deliver greater visibility, enforcement, control and protection over the network.

Features Features Description Benefits
AppTrack Detailed analysis on application volume/usage throughout the network based on bytes, packets and sessions. Provides the ability to track application usage to help identify high-risk applications and analyze traffic patterns for improved network management and control.
AppFW* Fine grained application control policies to allow or deny traffic based on dynamic application name or group names. Enhances security policy creation and enforcement based on applications and user roles rather than traditional port and protocol analysis.
AppQoS** Set prioritization of traffic based on application information and contexts. Provides the ability to prioritize traffic as well as limit and shape bandwidth based on application information and contexts for improved application and overall network performance.
AppDoS Multi-stage detection methods used to identify and mitigate distributed denial of service attacks targeting applications. Prevent service disruptions due to targeted attacks at applications by filtering and blocking malicious traffic while allowing legitimate traffic.
Application signatures More than 700 signatures for identifying applications and nested applications. Applications are accurately identified and the resulting information can be used for visibility, enforcement, control and protection.
SSL inspection Inspection of HTTP traffic encrypted in SSL on any TCP/UDP port. Combined with application identification, provides visibility and protection against threats embedded in SSL encrypted traffic.


IPS Capabilities

Juniper Networks IPS capabilities offer several unique features that assure the highest level of network security.

Features Features Description Benefits
Stateful signature inspection Signatures are applied only to relevant portions of the network traffic determined by the appropriate protocol context. Minimize false positives and offer flexible signature development.
Protocol decodes More than 65 protocol decodes are supported along with more than 500 contexts to enforce proper usage of protocols. Accuracy of signatures is improved through precise contexts of protocols.
Signatures1 There are more than 6,000 signatures for identifying anomalies, attacks, spyware, and applications. Attacks are accurately identified and attempts at exploiting a known vulnerability are detected.
Traffic normalization Reassembly, normalization, and protocol decoding are provided. Overcome attempts to bypass other IPS detections by using obfuscation methods.
Zero-day protection Protocol anomaly detection and same-day coverage for newly found vulnerabilities are provided. Your network is already protected against any new exploits.
Recommended policy Group of attack signatures are identified by Juniper Networks Security Team as critical for the typical enterprise to protect against. Installation and maintenance are simplified while ensuring the highest network security.
Active/active traffic monitoring IPS monitoring on active/active SRX3000 line chassis clusters. Support for active/active IPS monitoring including advanced features such as low impact chassis cluster upgrades.


Centralized Management

Network and Security Manager—the common management solution for all Juniper Networks firewall, IDP Series, SA Series SSL VPN Appliances, UAC, and EX Series—manages the SRX Series Services Gateways.

Features Features Description Benefits
Role-based administration More than 100 different activities can be assigned as unique permissions for different administrators. Streamline business operations by logically separating and enforcing roles of various administrators.
Scheduled security update SRX Series Services Gateways can be automatically updated with new attack objects/signatures. Get up-to-the-minute security coverage without manual intervention.
Domains Logical separation of devices, policies, reports, and other management activities are permitted. Conform to business operations by grouping devices based on business practices.
Object locking Safe concurrent modification to the management settings is allowed. Avoid incorrect configuration due to overwritten management settings.
Scheduled database backup Automatic backup of NSM database is provided. Provide configuration redundancy
Job manager View pending and completed jobs. Simplify update of multiple devices.
1 As of May 2010, there are 6,200 signatures with approximately 10 new signatures added every week. Subscription to signature update service is required to receive new signatures.
* AppFW is targeted for 1H2011
** AppQoS is targeted for 2H2011

Modules:

Switch Fabric and Control Board (SCB)
At the heart of the Dynamic Services Architecture is the switch fabric and control board (SCB). The SCB transforms the chassis from a simple module enclosure into a highly effective mesh network. The purpose of the SCB is to allow all modules in the chassis to send traffic at extremely high bandwidth.

The Route Engine (RE)
The routing engine (RE) is tightly coupled with the functionality of the SCB and can be considered the central nervous system of the architecture. The RE is the control plane of the chassis, and provides overall management and communications to and from system administrators, as well as calculating route tables for routing network traffic.

Services Processing Card (SPC)
As the "brains" behind the SRX3000 services gateways, services processing cards (SPCs) are designed to process all available services on the gateway. By eliminating the need for dedicated hardware for specific services or capabilities, no piece of hardware is ever taxed to the limit while other hardware sits idle. All of the processing capabilities of the SPCs are used to support any and all services and capabilities of the gateway. The same SPCs are supported on both the SRX3600 and the SRX3400 services gateways.(Note: A minimum of one NPC and one SPC is required for proper system functionality.)

Network Processing Cards (NPC)
To ensure maximum processing performance and flexibility, the SRX3000 line of services gateways utilize network processing cards (NPCs) to distribute inbound and outbound traffic to the appropriate SPCs and IOCs, apply QoS, and enforce DoS/DDoS protections. The SRX3600 can be configured to support one to three NPCs, while the SRX3400 can be configured to support one or two NPCs. Adding additional NPCs to these gateways allows organizations to tailor the solution to fit their specific performance requirements.(Note: A minimum of one NPC and one SPC is required for proper system functionality.)

Input/Output Cards (IOC)
In addition to supporting an ideal mix of built-in copper, small form-factor pluggable (SFP), and high-availability (HA) ports, the SRX3000 line allows the greatest I/O port density of any comparable offering. Each SRX3000 services gateway can be equipped with one or several input/output cards (IOCs), each supporting either 16 gigabit interfaces (16 x 1 copper or fiber Gigabit Ethernet), or 20 gigabit interfaces (2 x 10 Gigabit XFP Ethernet). With the flexibility to add additional IOCs, the SRX3000 line of services gateways can be equipped to support an ideal balance between interfaces and processing capabilities. (Note: A minimum of one NPC and one SPC is required for proper system functionality.)

SRX Cluster Module
The SRX Cluster Module is a hardware module that can be installed in the SRX3400 gateway to enable dual, or redundant, H/A control links for chassis clustering. When deploying SRX3400's in H/A clusters, the SRX Cluster Module utilizes the redundant architecture design of the SRX3000 line to provide full control link resiliency for mission critical environments.

SRX3K-SPC-1-10-40 SRX 3000 services processing card with 1Ghz processor and 4GB memory
SRX3K-NPC SRX 3000 network processing card
SRX3K-16GE-TX 16x1 10/100/1000 copper CFM I/O card for SRX3000
SRX3K-16GE-SFP 16x1 Gigabit SFP Ethernet I/O card for SRX3000, no transceivers
SRX3K-2XGE-XFP 2x10 Gigabit XFP Ethernet I/O card for SRX3000, no transceivers

Technical Specifications:


Model: SRX3400 SRX3600
  SRX3400 SRX3600
Maximum Layer 3 Performance and Capacity1
Junos OS version tested Junos OS 10.2 Junos OS 10.2
Firewall performance (large packets) 20 Gbps 30 Gbps
Firewall performance (IMIX) 8 Gbps 18 Gbps
Firewall packets per second (64 bytes) 3 Mpps 6 Mpps
Maximum AES256+SHA-1 VPN performance 6 Gbps 10 Gbps
Maximum 3DES+SHA-1 VPN performance 6 Gbps 10 Gbps
Maximum IPS performance (NSS 4.2.1) 6 Gbps 10 Gbps
Maximum AppTrack performance 16 Gbps 25 Gbps
Maximum concurrent sessions 2.25 million 2.25 million
New sessions/second, (sustained, TCP, three-way) 175,000 175,000
Maximum security policies 40,000 40,000
Maximum users supported Unrestricted Unrestricted
Network Connectivity SRX3400 SRX3600
Fixed I/O 8 10/100/1000 + 4 SFP 8 10/100/1000 + 4 SFP
LAN interface options 16 x 1 10/100/1000 copper
16 x 1-Gigabit Ethernet SFP
2 x 10-Gigabit Ethernet XFP
16 x 1 10/100/1000 copper
16 x 1-Gigabit Ethernet SFP
2 x 10-Gigabit Ethernet XFP
Maximum available slots for IOCs Four (front slots) Six (front slots)
Processing Scalability SRX3400 SRX3600
Maximum available slots for SPCs2 Up to four SPCs supported per chassis3
(any slot)
Up to seven SPCs supported per chassis
(any slot)
Maximum available slots for NPCs2 Up to two NPCs supported per chassis3
(three rear slots)
Up to three NPCs supported per chassis
(three rear-right slots)
Dimensions SRX3400 SRX3600
Dimensions (W x H x D) 17.5 x 5.25 x 25.5 in
(44.5 x 13.3 x 64.8 cm)
17.5 x 8.75 x 25.5 in
(44.5 x 22.2 x 64.8 cm)
Weight (device and power supply) Chassis: 32.3 lb (14.7 kg)
Fully configured: 75 lb (34.1 kg)
Chassis: 43.6 lb (19.8 kg)
Fully configured: 115.7 lb (52.6 Kg)
Power SRX3400 SRX3600
Power supply (AC) 100 to 240 VAC 100 to 240 VAC
Power supply (DC) -40 to -72 VDC -40 to -72 VDC
Maximum power draw 1,100 W (AC power)
1,050 W (DC power)
1,750 W (AC power)
1,850 W (DC power)
Power supply redundancy 1 + 1 2 + 1 / 2 + 2
Environment SRX3400 SRX3600
Operational temperature 32° to 104° F (0° to 40° C) 32° to 104° F (0° to 40° C)
Humidity 5% to 90% noncondensing humidity 5% to 90% noncondensing humidity
Certifications SRX3400 SRX3600
Safety certifications Yes Yes
Electromagnetic compatibility (EMC) certifications Yes Yes
3GPP TS 20.060 Compliance* SRX3400 SRX3600
R6: 3GPP TS 29.060 version 6.21.0 Yes Yes
R7: 3GPP TS 29.060 version 7.3.0 Yes Yes
R8: 3GPP TS 29.060 version 8.3.0 Yes Yes
1. Performance, capacity, and features listed are based upon systems running Junos OS 10.2 and are measured under ideal testing conditions. SRX3400 DC-powered systems achieve lower performance levels as fewer cards can be supported. Actual results may vary based on Junos OS releases and by deployment. For a complete list of supported Junos OS versions for the SRX Series Services Gateways, please visit the Juniper Customer Support Center (www.juniper.net/customers/support/).
2. Each SRX3000 line of Services Gateways employ multiple common form-factor module (CFM) expansion slots on the front and rear of the chassis to allow custom configurations of I/O and processing capacities based on customer requirements. SPCs and NPCs are supported on all available CFM slots. However, for proper system functionality and allowing for I/O expansion, the SRX3400 supports a maximum of up to four SPCs and two NPCs per chassis, and the SRX3600 supports a maximum of up to seven SPCs and three NPCs per chassis. Please refer to the respective hardware guides for more information on SPCs and NPCs as well as for guidelines on placements.
3. Refer to user guide for guidelines when using DC power supplies.

* SRX3000 line gateways operating with Junos software release 10.0 and later are compliant with the R6, R7, and R8 releases of 3GPP TS 20.060 with the following exceptions (not supported on the SRX3000 line):
- Section 7.5A Multimedia Broadcast and Multicast Services (MBMS) messages
- Section 7,5B Mobile Station (MS) info change messages
- Section 7.3.12 Initiate secondary PDP context from GGSN

Additional Features and Comparison:

Model: SRX3400 SRX3600
  SRX3400 SRX3600
Firewall
Network attack detection Yes Yes
DoS and DDoS protection Yes Yes
TCP reassembly for fragmented packet protection Yes Yes
Brute-force attack mitigation Yes Yes
SYN cookie protection Yes Yes
Zone-based IP spoofing Yes Yes
Malformed packet protection Yes Yes
IPsec VPN SRX3400 SRX3600
Site-to-site tunnels 10,000 10,000
Tunnel interfaces 10,000 10,000
DES (56-bit), 3DES (168-bit), and AES encryption Yes Yes
MD5 and SHA-1 authentication Yes Yes
Manual key, IKE, PKI (X.509) Yes Yes
Perfect forward secrecy (DH groups) 1,2,5 1,2,5
Prevent replay attack Yes Yes
Remote access VPN Yes Yes
Redundant VPN gateways Yes Yes
Intrusion Prevention System SRX3400 SRX3600
Modes of operation: In-line and in-line tap Yes Yes
Active/active traffic monitoring Yes Yes
Stateful protocol signatures Yes Yes
Attack detection mechanisms Stateful signatures, protocol anomaly detection (zero-day coverage), application identification Stateful signatures, protocol anomaly detection (zero-day coverage), application identification
Attack response mechanisms Drop connection, close connection, session packet log, session summary, email, custom session Drop connection, close connection, session packet log, session summary, email, custom session
Attack notification mechanisms Structured Syslog Structured Syslog
Worm protection Yes Yes
Simplified installation through recommended policies Yes Yes
Trojan protection Yes Yes
Spyware/adware/keylogger protection Yes Yes
Other malware protection Yes Yes
Application denial of service protection Yes Yes
Protection against attack proliferation from infected systems Yes Yes
Reconnaissance protection Yes Yes
Request and response-side attack protection Yes Yes
Compound attacks—combines stateful signatures and protocol anomalies Yes Yes
Create custom attack signatures Yes Yes
Access contexts for customization 500+ 500+
Attack editing (port range, other) Yes Yes
Stream signatures Yes Yes
Protocol thresholds Yes Yes
Stateful protocol signatures Yes Yes
Approximate number of attacks covered 6,000+ 6,000+
Detailed threat descriptions and remediation/patch info Yes Yes
Create and enforce appropriate application-usage policies Yes Yes
Attacker and target audit trail and reporting Yes Yes
Frequency of updates Daily and emergency Daily and emergency
GPRS Security SRX3400 SRX3600
GPRS stateful firewall Yes Yes
GTP tunnels 250,000 500,000
Destination Network Address Translation SRX3400 SRX3600
Destination NAT with PAT Yes Yes
Destination NAT within same subnet as ingress interface IP Yes Yes
Destination addresses and port numbers to one single address and a specific port number (M:1P) Yes Yes
Destination addresses to one single address (M:1) Yes Yes
Destination addresses to another range of addresses (M:M) Yes Yes
Source Network Address Translation SRX3400 SRX3600
Static Source NAT – IP-shifting DIP Yes Yes
Source NAT with PAT – port-translated Yes Yes
Source NAT without PAT – fix-port Yes Yes
Source NAT – IP address persistency Yes Yes
Source pool grouping Yes Yes
Source pool utilization alarm Yes Yes
Source IP outside of the interface subnet Yes Yes
Interface source NAT – interface DIP Yes Yes
Oversubscribed NAT pool with fallback to PAT when the address pool is exhausted Yes Yes
Symmetric NAT Yes Yes
Allocate multiple ranges in NAT pool Yes Yes
Proxy ARP for physical port Yes Yes
Source NAT with loopback grouping – DIP loopback grouping Yes Yes
User Authentication and Access Control SRX3400 SRX3600
Built-in (internal) database Yes Yes
RADIUS accounting Yes Yes
Web-based authentication Yes Yes
UAC enforcement point Yes Yes
Public Key Infrastructure (PKI) Support SRX3400 SRX3600
PKI certificate requests (PKCS 7 and PKCS 10) Yes Yes
Automated certificate enrollment (SCEP) Yes Yes
Certificate authorities supported Yes Yes
Self-signed certificates Yes Yes
Virtualization SRX3400 SRX3600
Maximum number of security zones 256 256
Maximum number of virtual routers 256 256
Maximum number of VLANs per interface 4,096 4,096
Maximum number of L3 subinterfaces 16,3844 16,3844
Routing SRX3400 SRX3600
BGP instances 128 128
BGP peers 2,000 2,000
BGP routes 1,000,0005 1,000,0005
OSPF instances 256 256
OSPF routes 1,000,0005 1,000,0005
RIP v1/v2 instances 50 50
RIP v2 table size 30,000 30,000
Dynamic routing Yes Yes
Static routes Yes Yes
Filter-based forwarding (FBF) Yes Yes
Equal-cost multipath (ECMP) Yes Yes
Reverse path forwarding (RPF) Yes Yes
Multicast Yes Yes
IPv6 SRX3400 SRX3600
Firewall/stateless filters Yes Yes
Dual stack IPv4/IPv6 firewall Yes Yes
RIPng Yes Yes
BFD, BGP Yes Yes
ICMPv6 Yes Yes
OSPFv3 Yes Yes
Class of service Yes Yes
Mode of Operation SRX3400 SRX3600
Layer 2 (transparent) mode Yes Yes
Layer 3 (route and/or NAT) mode Yes Yes
IP Address Assignment SRX3400 SRX3600
Static Yes Yes
Dynamic Host Configuration Protocol (DHCP) Yes Yes
Internal DHCP server Yes Yes
DHCP relay Yes Yes
Traffic Management QoS SRX3400 SRX3600
Maximum bandwidth Yes Yes
RFC2474 IP DiffServ in IPv4 Yes Yes
Filters for CoS Yes Yes
Classification Yes Yes
Scheduling Yes Yes
Shaping Yes Yes
Intelligent Drop Mechanisms (WRED) Yes Yes
Three-level scheduling Yes Yes
Weighted round-robin for each level of scheduling Yes Yes
Priority of routing protocols Yes Yes
High Availability SRX3400 SRX3600
Active/passive, active/active Yes Yes
Low impact chassis cluster upgrades Yes Yes
Configuration synchronization Yes Yes
Session synchronization for firewall and IPsec VPN Yes Yes
Session failover for routing change Yes Yes
Device failure detection Yes Yes
Link and upstream failure detection Yes Yes
Interface link aggregation/LACP Yes Yes
Redundant data and control links* Yes Yes
Management SRX3400 SRX3600
WebUI (HTTP and HTTPS) Yes Yes
Command-line interface (console) Yes Yes
Command-line interface (telnet) Yes Yes
Command-line interface (SSH) Yes Yes
Network and Security Manager version 2008.2 or later Yes Yes
Administration SRX3400 SRX3600
Local administrator database support Yes Yes
External administrator database support Yes Yes
Restricted administrative networks Yes Yes
Root admin, admin, and read-only user levels Yes Yes
Software upgrades Yes Yes
Configuration rollback Yes Yes
Logging/Monitoring SRX3400 SRX3600
Structured System Log Yes Yes
SNMP (v2/v3) Yes Yes
Traceroute Yes Yes
1. Performance, capacity, and features listed are based upon systems running Junos OS 10.2 and are measured under ideal testing conditions. SRX3400 DC-powered systems achieve lower performance levels as fewer cards can be supported. Actual results may vary based on Junos OS releases and by deployment. For a complete list of supported Junos OS versions for the SRX Series Services Gateways, please visit the Juniper Customer Support Center (www.juniper.net/customers/support/).
2. Each SRX3000 line of Services Gateways employ multiple common form-factor module (CFM) expansion slots on the front and rear of the chassis to allow custom configurations of I/O and processing capacities based on customer requirements. SPCs and NPCs are supported on all available CFM slots. However, for proper system functionality and allowing for I/O expansion, the SRX3400 supports a maximum of up to four SPCs and two NPCs per chassis, and the SRX3600 supports a maximum of up to seven SPCs and three NPCs per chassis. Please refer to the respective hardware guides for more information on SPCs and NPCs as well as for guidelines on placements.
3. Refer to user guide for guidelines when using DC power supplies.
4. Maximum number of supported L3 subinterfaces in HA configuration is 1,000.
5. Maximum number of BGP and OSPF routes recommended is 100,000.

* To enable dual control links on the SRX3000 line, the SRX3K CRM module must be installed on each cluster member.

Pricing Notes:

SRX Series Services Gateways
SRX3400 Chassis, Midplane, Fan, RE, SFB-12GE, AC PEM - no power cord - no SPC - no NPC
Note: C19 straight power cord required. Optics (SFP) not included. HA-control requires SFP.
#SRX3400BASE-AC
List Price: $18,000.00
Our Price: $17,100.00
SRX3400 Chassis, Midplane, Fan, RE, SFB-12GE, DC2 PEM - no SPC - no NPC
Note: Do not mix DC and DC2 power supplies in one chassis. Optics (SFP) not included. HA-control requires SFP.
#SRX3400BASE-DC2
List Price: $19,000.00
Our Price: $18,050.00
AppSecure Subscriptions for SRX3400 -Learn More
1-year subscription for AppSecure and IPS updates for SRX3400
#SRX3400-APPSEC-A-1
List Price: $14,000.00
Our Price: $13,363.00
3-year subscription for AppSecure and IPS updates for SRX3400
#SRX3400-APPSEC-A-3
List Price: $35,000.00
Our Price: $33,407.00
5-year subscription for AppSecure and IPS updates for SRX3400
#SRX3400-APPSEC-A-5
List Price: $56,000.00
Our Price: $53,352.00
Juniper Care
Juniper Care Core Support for SRX3400
(includes PS, SCB, RE)
#SVC-COR-SRX3400
List Price: $1,170.00
Our Price: $1,117.00
Juniper Care CorePlus Support for SRX3400
(includes PS, SCB, RE)
#SVC-CP-SRX3400
List Price: $1,290.00
Our Price: $1,231.00
Juniper Care NextDay Onsite Support for SRX3400
(includes PS, SCB, RE)
#SVC-NDCE-SRX3400
List Price: $1,850.00
Our Price: $1,766.00
Juniper Care NextDay Support for SRX3400
(includes PS, SCB, RE)
#SVC-ND-SRX3400
List Price: $1,420.00
Our Price: $1,355.00
Juniper Care SameDay Onsite Support for SRX3400
(includes PS, SCB, RE)
#SVC-SDCE-SRX3400
List Price: $3,110.00
Our Price: $2,968.00
Juniper Care SameDay Support for SRX3400
(includes PS, SCB, RE)
#SVC-SD-SRX3400
List Price: $2,490.00
Our Price: $2,377.00
User Licenses
Expanded Performance and Capacity License for SRX 3000
Note: Requires Junos 10.4 or later
#SRX3K-EXTREME-LTU
List Price: $45,000.00
Our Price: $42,750.00
Line Components
16x1GE SFP CFM for SRX 3000
Note: Optics (SFP) not included.
#SRX3K-16GE-SFP
List Price: $12,000.00
Our Price: $9,660.00
16x10/100/1000 Copper CFM for SRX 3000
#SRX3K-16GE-TX
List Price: $12,000.00
Our Price: $9,660.00
2x10GE XFP CFM for SRX 3000
Note: Optics (XFP) not included.
#SRX3K-2XGE-XFP
List Price: $12,000.00
Our Price: $9,660.00
Clustering Module for SRX 3000
Note: Requires Junos 10.2 or later
#SRX3K-CRM
List Price: $4,000.00
Our Price: $3,220.00
Network Processing Card for SRX 3000
Note: One required for SRX3000 Base System to function.
#SRX3K-NPC
List Price: $12,000.00
Our Price: $9,660.00
Routing Engine with 1200MHz processor and 1GB memory for SRX 3000
Note: One included with Base System
#SRX3K-RE-12-10
List Price: $16,000.00
Our Price: $12,880.00
Services Processing Card for SRX 3000, Single Processor, 1Ghz, 4GB Memory/CPU
Note: One required for SRX3000 Base System to function.
#SRX3K-SPC-1-10-40
List Price: $20,000.00
Our Price: $16,100.00
Spares
SRX3400 chassis, midplane installed - no Fan
Note: Fan tray not included.
#SRX3400-CHAS
List Price: $8,000.00
Our Price: $6,440.00
SRX3400 Air Deflector Kit
#SRX3400-ADEF
List Price: $12,000.00
Our Price: $9,660.00
SRX3400 Fan Tray
#SRX3400-FAN
List Price: $2,000.00
Our Price: $1,610.00
SRX3400 Fan Tray cover/door
#SRX3400-FAN-BLANK
List Price: $300.00
Our Price: $241.00
SRX3400 replacement fan filter kit
#SRX3400-FLTR
List Price: $300.00
Our Price: $241.00
Replacement double-wide CFM tray holder for two single-wide CFMs for SRX 3000
#SRX3K-2CFM-TRAY
List Price: $600.00
Our Price: $483.00
Blank CFM for SRX 3000
#SRX3K-BLANK
List Price: $300.00
Our Price: $241.00
AC Power Entry Module for SRX 3000 - no power cord
Note: C19 straight power cord required.
#SRX3K-PWR-AC
List Price: $3,000.00
Our Price: $2,415.00
Blank Power Supply Cover for SRX 3000
#SRX3K-PWR-BLANK
List Price: $300.00
Our Price: $241.00
Enhanced DC Power Entry Module for SRX 3000
Note: Do not mix DC and DC2 power supplies in one chassis.
#SRX3K-PWR-DC2
List Price: $4,000.00
Our Price: $3,220.00
Blank RE cover for SRX 3000
#SRX3K-RE-BLANK
List Price: $300.00
Our Price: $241.00
Switch Fabric Board with 8x10/100/1000 Copper and 4xGE SFP for SRX 3000
- Included with Base System
#SRX3K-SFB-12GE
List Price: $15,000.00
Our Price: $12,075.00
Transceivers
Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module
Note: Substitute with JX-SFP-1GE-LH if necessary.
#SRX-SFP-1GE-LH
List Price: $6,000.00
Our Price: $4,830.00
Extended Temperature Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module
#SRX-SFP-1GE-LH-ET
List Price: $7,000.00
Our Price: $5,635.00
Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module
Note: Substitute with JX-SFP-1GE-LX if necessary.
#SRX-SFP-1GE-LX
List Price: $1,000.00
Our Price: $805.00
Extended Temperature Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module
#SRX-SFP-1GE-LX-ET
List Price: $1,200.00
Our Price: $966.00
Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module
Note: Substitute with JX-SFP-1GE-SX if necessary.
#SRX-SFP-1GE-SX
List Price: $500.00
Our Price: $402.00
Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable)
Note: Substitute with JX-SFP-1GE-T if necessary.
#SRX-SFP-1GE-T
List Price: $400.00
Our Price: $322.00
Extended Temperature Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable)
#SRX-SFP-1GE-T-ET
List Price: $500.00
Our Price: $382.00
10GE 40km single-mode pluggable interface
Note: Substitute with XFP-10GE-ER if necessary.
#SRX-XFP-10GE-ER
List Price: $10,000.00
Our Price: $8,050.00
Extended Temperature 10GE 40km single-mode pluggable interface
#SRX-XFP-10GE-ER-ET
List Price: $12,000.00
Our Price: $9,660.00
10GE XFP pluggable transceiver; singlemode 1310nm 10km reach
Note: Substitute with XFP-10GE-LR if necessary.
#SRX-XFP-10GE-LR
List Price: $4,000.00
Our Price: $3,220.00
Extended Temperature 10GE XFP pluggable transceiver; singlemode 1310nm 10km reach
#SRX-XFP-10GE-LR-ET
List Price: $5,000.00
Our Price: $4,025.00
10GE short reach multi-mode pluggable interface
Note: Substitute with XFP-10GE-SR if necessary.
#SRX-XFP-10GE-SR
List Price: $3,000.00
Our Price: $2,415.00
Extended Temperature 10GE short reach multi-mode pluggable interface
#SRX-XFP-10GE-SR-ET
List Price: $3,500.00
Our Price: $2,817.00
