Juniper Networks PTX1000
Distributed applications within the Converged Supercore architecture


Juniper Networks PTX1000

Juniper Networks Products
PTX1000 Network Services Platform
PTX1000 Base system with 72-port 100GbE QSFP28 / 72-port 40GbE QSFP+ / 288-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-72Q-AC
List Price: $600,000.00
Our Price: $483,000.00
PTX1000 Full IP system with 72-port 100GbE QSFP28 / 72-port 40GbE QSFP+ / 288-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-72Q-AC-R
List Price: $600,000.00
Our Price: $483,000.00
PTX1000 LSR/Peering system with 36-port 100GbE QSFP28 / 36-port 40GbE QSFP+ / 144-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-36Q-AC-IR
List Price: $570,000.00
Our Price: $458,850.00
PTX1000 Full IP system with 36-port 100GbE QSFP28 / 36-port 40GbE QSFP+ / 144-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-36Q-AC-R
List Price: $780,000.00
Our Price: $627,900.00
PTX1000 LSR/Peering system with 18-port 100GbE QSFP28 / 18-port 40GbE QSFP+ / 72-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
#PTX1K-18Q-DC-IR
List Price: $300,000.00
Our Price: $241,500.00
PTX1000 Full IP system with 18-port 100GbE QSFP28 / 18-port 40GbE QSFP+ / 72-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-18Q-AC-R
List Price: $370,000.00
Our Price: $297,850.00
PTX1000 Full IP system with 18-port 100GbE QSFP28 / 18-port 40GbE QSFP+ / 72-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
#PTX1K-18Q-DC-R
List Price: $400,000.00
Our Price: $322,000.00

Click here to jump to more pricing!

Overview:

The PTX1000 Packet Transport Router provides high-density 10GbE, 40GbE, and 100GbE interfaces for distributed core networks and network applications, meeting the demands of Internet service providers and high-volume content providers.

Occupying only two rack units, the PTX1000 is the industry’s first fixed-configuration core router that enables service providers to organically distribute peering points throughout the network. It uses a rich IP/MPLS feature set without sacrificing performance or deployability, two factors on which total cost of ownership (TCO) pivots for service providers.

With 2.88 Tbps of forwarding capacity, the PTX1000 supports flexible interface configuration options ranging from 288 10GbE interfaces using a quad small form-factor pluggable plus (QSFP+) breakout module, 72 GbE interfaces at 40 Gbps using a QSFP+ breakout module, and 24 100GbE interfaces using QSFP28.

Like other routers in the PTX Series, the PTX1000 is powered by Juniper Networks ExpressPlus™ custom silicon to deliver predictable IP/MPLS packet performance and functionality.

Increased interactions between people and machines are creating huge volumes of traffic with increasingly unpredictable patterns. These dynamics have intensified the challenge of accommodating growth with traditional network products and architectures. A new approach, based on both physical and virtual innovation, will help service providers stay ahead of growing traffic demands while remaining profitable. PTX Series Packet Transport Routers with custom ExpressPlus silicon, built from the ground up with SDN in mind, deliver an architecture that reduces TCO with highly flexible, high-performance innovations that are easy to deploy.

Product Description

Juniper Networks® PTX Series Packet Transport Routers transform the core network with physical and virtual innovations that deliver unprecedented scale at a low cost. Two fixedconfiguration platforms are available: the PTX1000 Packet Transport Router, the industry’s first 2 U packet transport routing device; and the PTX10002 Packet Transport Router, a second-generation device that doubles the density of the PTX1000 with Juniper Networks ExpressPlus™ silicon. These packet transport routers give cloud and communication providers the freedom to develop and deliver new virtualized services anywhere in the network. They can also create an elastic architecture with precise traffic control without compromising the service experience.

The Evolving Landscape

New traffic dynamics such as mobility, video, and cloud-based services are transforming traditional network patterns and topologies. Stratified, statically designed, and manually operated networks must evolve to support the constantly growing volumes of traffic quickly and economically. Many operators have seen their profits stagnate and TCO grow under the burden that these growing traffic volumes are imposing. Service providers need to become more agile in order to optimize their existing network resources, shorten planning cycles, and remove rigid network layers.

Operators are facing the following challenges under the current environment:

  • Static scale: The cloud and communication providers’ backbone handles the full weight of network traffic. Therefore, it is paramount that the core network be able to grow organically along with traffic to meet escalating demands. Silicon, system, and SDN innovations for the core empower service providers to scale faster than the traffic in an elegant, elastic, redundant package—without requiring forklift upgrades.
  • Static architecture: Virtualized services and the explosion of cloud-based applications are creating increasingly unpredictable traffic patterns. To handle this unpredictability, service providers need a dynamic, scale-out architecture across all layers to create programmable, traffic-optimized networks that support any service, anywhere.
  • Power costs: For cloud and communication providers, the operational cost of transmitting a packet through the core is less than the cost of the power required to move that packet. In fact, projections suggest that over a few short years, the total power draw will exceed the cost of deploying the entire network infrastructure. Efficient power utilization by the core router requires a holistic ground-up engineering approach.
  • Facility limitations: Service providers cannot grow their facilities exponentially forever. They need innovations that provide a low-touch deployment model optimized around space availability, facility power requirements, and floor weight thresholds. Transport-oriented central office locations have the added burden of meeting European Telecommunications Standards Institute (ETSI) standard depth. Any transit router innovation must operate within these constraints.

In order to address these challenges, cloud and communication providers need an innovative core router that satisfies three defining principles: performance, deployability, and SDN programmability. PTX1000 and PTX10002 fixed-configuration packet transport routers provide the foundation for a scaleout core backbone architecture, ensuring a consistent user experience across geographies. Both the PTX1000 and PTX10002 meet all existing traditional core requirements, easily fitting into cloud and communication provider networks that require transit focused IP/MPLS applications such as: Internet peering, scale-out metro and backbone topologies, and labelswitching router (LSR) optimized deployments.

Architecture and Key Components:

The PTX1000 and PTX10002 fixed-configuration packet transport routers bring physical and virtual innovation to the service provider core network. These core routers directly address concerns about operational expenditures while scaling organically to keep pace with growing traffic demands.

Physical innovations at the core silicon level enable the PTX Series fixed-configuration routers to lower OpEx. Powered by ExpressPlus silicon, these devices build upon the Juniper Networks Junos® Express silicon concepts of low consistent latency and wire-rate packet performance for both IP traffic and MPLS transport, without sacrificing the optimized system power profile. These concepts are incorporated into the PTX Series design along with full IP functionality, preserving the spirit of the original Junos Express chipset. The ExpressPlus silicon is the first purpose-built telecommunications silicon to engineer a 3D memory architecture into the base design for more than 1.6 billion filter operations per second, dynamic table memory allocation for mammoth IP routing scale, and enormous power efficiency gains.

While the ability to meet service provider needs for performance, deployability, and SDN control begins with the silicon, the integration of optical transport with 100GbE-coherent technology further improves the economics of the core network. With PTX Series Packet Transport Routers powered by ExpressPlus silicon, service providers can now deploy an architecture with the efficiency of a lean-core network featuring Juniper Networks NorthStar Controller, a robust, full-featured Internet backbone router. The ExpressPlus silicon also allows service providers to deploy a converged regional IP/MPLS core router with integrated 100GbE coherent transport for superior performance, elegant deployment, and SDN programmability.

PTX1000

The PTX1000, with its rich IP/MPLS feature set, lets service providers organically distribute peering points throughout the network without sacrificing performance and deployability—the main contributors to eroding TCO for service providers when peering. The PTX1000 expands the applications scope that the PTX Series architecture addresses, enabling service providers to implement a distributed core architecture for interconnecting growing cloud services. Service providers can distribute peering points to match traffic demand with an optimized core router without sacrificing performance or deployability. The PTX1000 is a first-generation fixed-configuration core router in a compact, 2 U form factor, making it easily deployable in space-constrained Internet exchange locations, remote central offices, and embedded peering points anywhere in the network, including cloud-hosted services.

The PTX1000 operates at 2.88 Tbps in a fixed core router configuration and supports flexible interface configuration options, including 288 10GbE ports via a quad small form-factor pluggable plus transceiver (QSFP+) breakout, 72 40GbE ports via QSFP+, and 24 100GbE ports via QSFP28.

PTX10002

The PTX10002 is a second-generation PTX Series fixedconfiguration core router, featuring a compact, 2 U form factor that is easy to deploy in space-constrained Internet exchange locations, remote central offices, and embedded peering points throughout the network, including cloud-hosted services.

The PTX10002 operates at 6 Tbps in a fixed core router configuration. It supports flexible interface configuration options, offering 60 physical quad small form-factor pluggable 28 (QSFP28) 100GbE ports, 72 QSFP+ 40GbE ports, and 192 10GbE ports via QSFP+ breakout cables.

ExpressPlus Silicon

Like the rest of the PTX Series, the PTX1000 and PTX10002 are powered by ExpressPlus silicon, delivering predictable IP/ MPLS packet performance and functionality. ExpressPlus silicon also eliminates the complex sawtooth packet profile found in elaborate over-engineered network processing units (NPUs) deployed in other core routers. This delivers the distributed peering scale (more than 2 million forwarding information base [FIB] and 5 million routing information base [RIB], also known as forwarding and routing tables, respectively), required to match expanding traffic demands.

Features and Benefits:

Performance is one of the guiding design principles for the PTX Series Packet Transport Routers. This focus empowers service providers with superior scale to match increased traffic levels and network engineering challenges with predictable system latency to improve the overall service experience, deliver best-in-class resiliency, and ensure that services meet strict customer servicelevel agreements (SLAs).

Deployability is the other guiding design principle for the PTX Series routers, focusing on power, space, and weight—fundamental concerns that impact service providers’ operational budget with respect to growing traffic.

SDN programmability brings virtual innovations to the service provider core, while the NorthStar Controller is an open, standards-based solution that optimizes both the IP layer and the transport layer with precise SDN control, allowing service providers to automate and scale operations.

Table 1 summarizes the features available on the fixedconfiguration PTX Series Packet Transport Routers.

Table 1: Fixed-Configuration PTX Series Features and Benefits

Feature Feature Description Benefit
System capacity The PTX1000 scales to 3 Tbps in a single chassis,
breaking out into 288 10GbE, 72 40GbE, and 24
100GbE interfaces.
The PTX10002 scales to 6 Tbps in a single chassis,
breaking out into 192 10GbE, 60 40GbE, and 60
100GbE interfaces.
Both the PTX1000 and PTX10002 give cloud and
service providers the performance and scalability
needed to outpace increased traffic demands.
High availability hardware Both the PTX1000 and PTX10002 are engineered
with hardware redundancy for cooling, power
supplies, and forwarding.
HA is critical for service providers to maintain an
always-on infrastructure base and meet stringent
SLAs across the core.
Packet performance Groundbreaking ExpressPlus silicon empowers PTX
Series routers with unparalleled packet processing
for both full IP functionality and MPLS transport,
leveraging a revolutionary 3D memory architecture.
Exceptional packet processing capabilities help
alleviate the challenge of scaling the network as
traffic levels increase while optimizing IP/MPLS
transit functionality around superior performance
and elegant deployability.
Ultra-compact 2 U form factor With cutting-edge innovation in power and cooling
technology, the PTX10002 is the only fixedconfiguration
core router that provides 6 Tbps of
capacity in a 2 U form factor. The PTX1000 provides
2.88 Tbps of capacity in a 2 U form factor.
Space efficiency is a critical requirement for peering
Internet exchange points, peering collocations,
central offices, and regional networks, especially in
emerging markets.

Specifications:

Juniper Networks PTX1000 Specifications
Specification PTX1000 PTX10002
System throughput 3 Tbps 6 Tbps
Forwarding capacity Up to 2 Bpps Up to 4 Bpps
Max. 10GbE port density 288 192
Max. 40GbE port density 72 60
Max. 100GbE port density 24 60
Dimension (WxHxD) 17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm) 17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
Rack units 2 U 2 U
Weight 68 lb (31 kg) 68 lb (31 kg)
CPU Intel Quad Core Ivy Bridge 2.5 GHz CPU Intel Quad Core Ivy Bridge 2.5 GHz CPU
RAM 32 Gb SDRAM 32 Gb SDRAM
SSD 64Gx2 64Gx2
Maximum power draw 1425 W (AC, DC), 4862 BTU/hr 2425 W (AC, DC), 4862 BTU/hr
Typical power draw 1050 W (AC, DC), 3583 BTU/hr 1850 W (AC, DC), 3583 BTU/hr

Views:

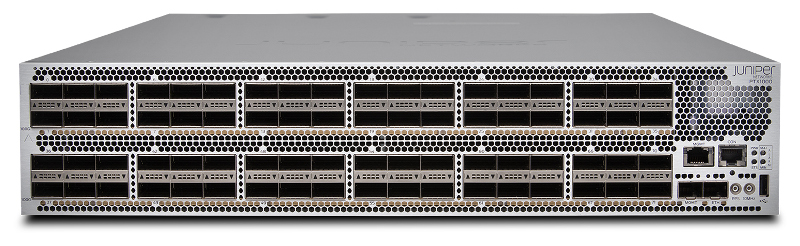

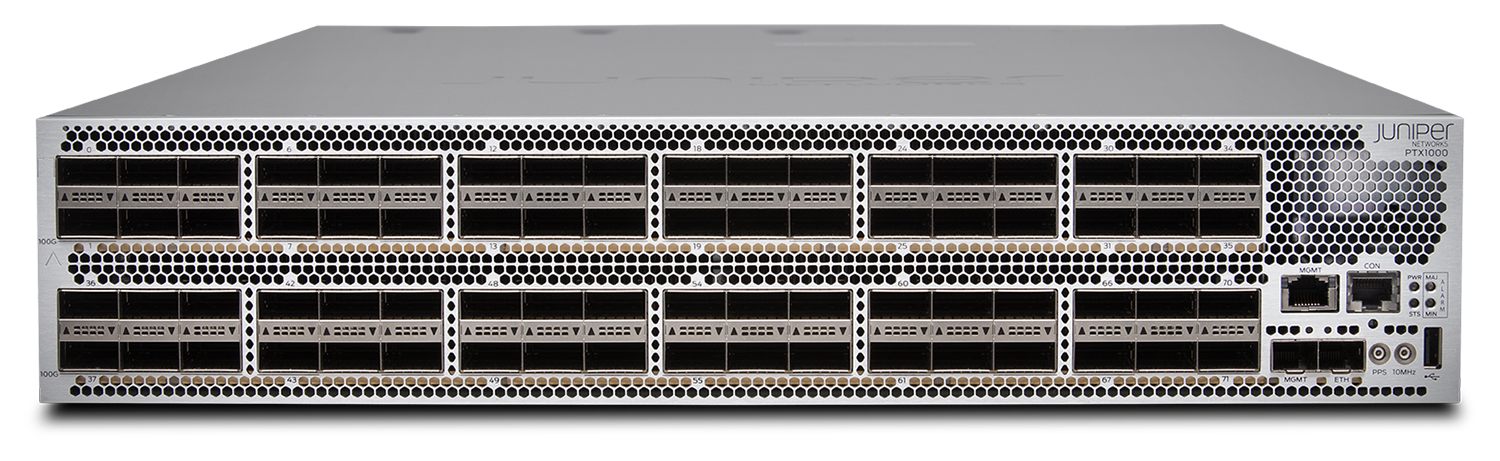

Top Front View
Top Front View

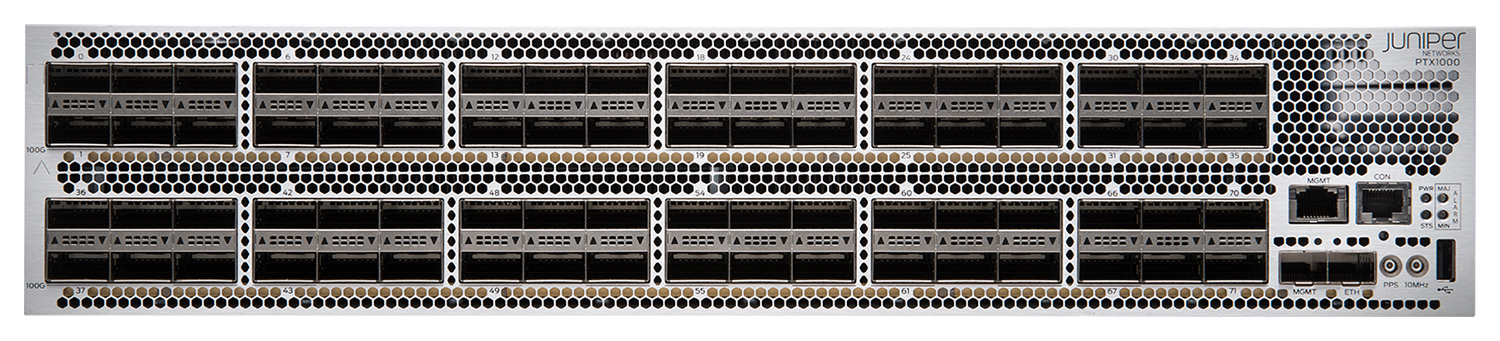

Front View
Front View

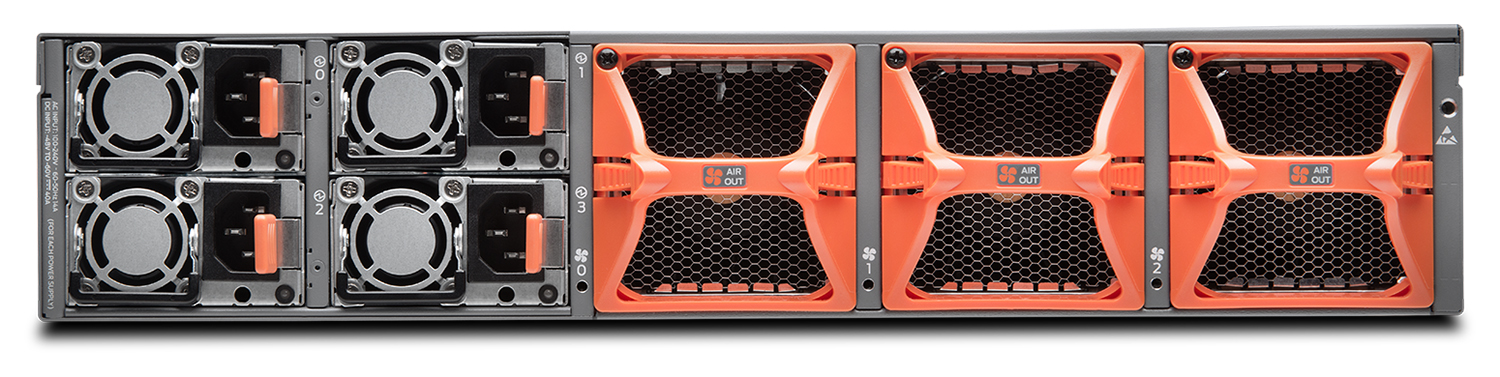

Rear View
Rear View

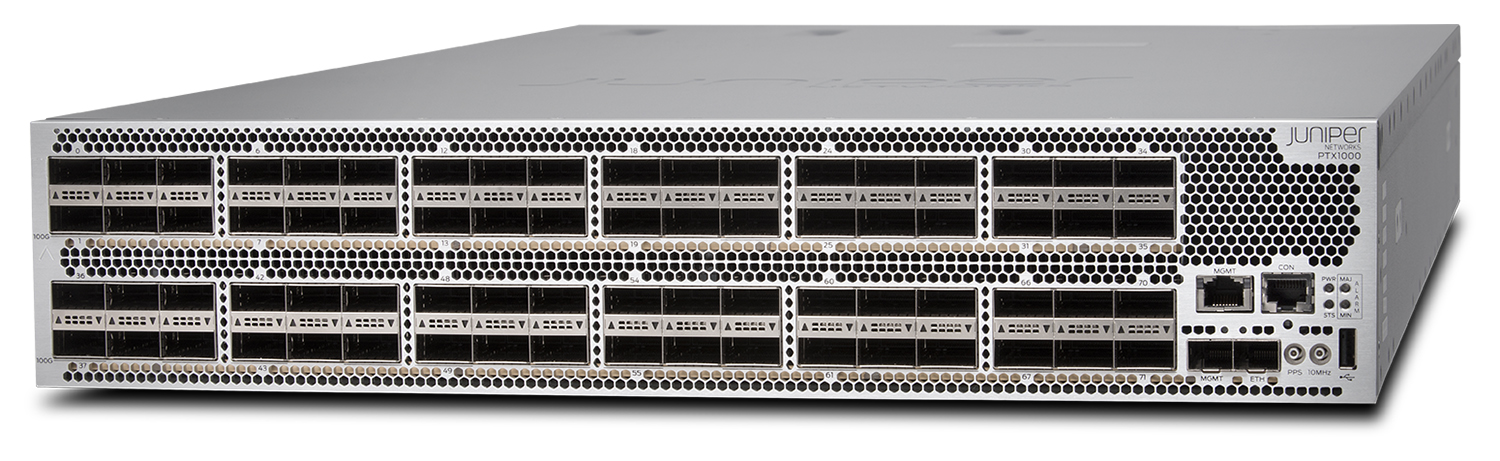

Left View
Left View

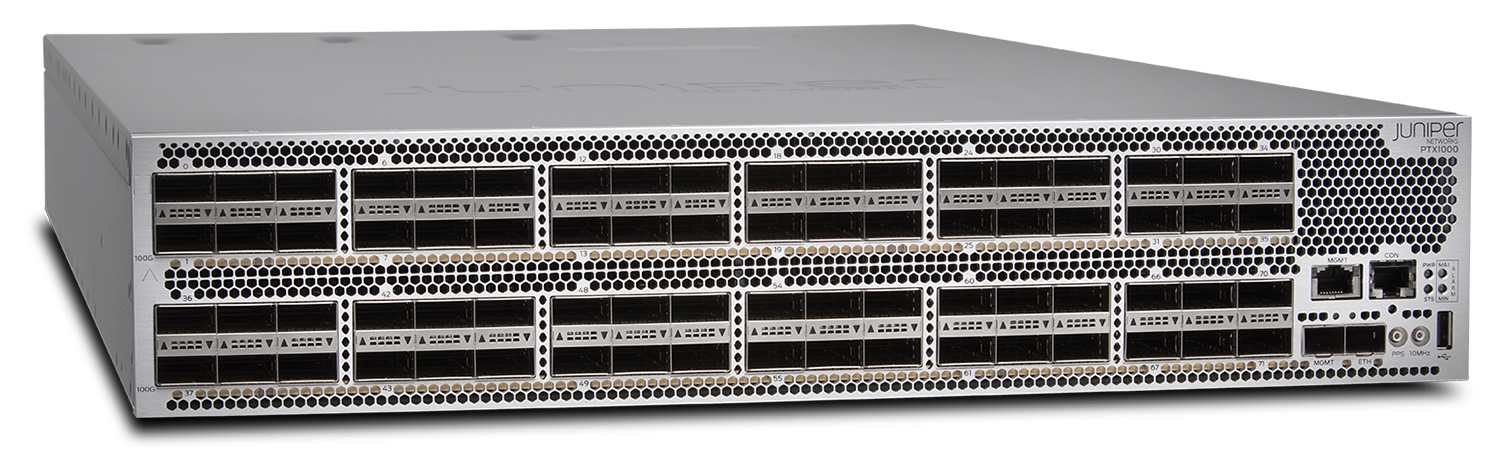

Right View
Right View

Pricing Notes:

PTX1000 Network Services Platform
PTX1000 Base system with 72-port 100GbE QSFP28 / 72-port 40GbE QSFP+ / 288-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-72Q-AC
List Price: $600,000.00
Our Price: $483,000.00
PTX1000 Full IP system with 72-port 100GbE QSFP28 / 72-port 40GbE QSFP+ / 288-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-72Q-AC-R
List Price: $600,000.00
Our Price: $483,000.00
PTX1000 LSR/Peering system with 36-port 100GbE QSFP28 / 36-port 40GbE QSFP+ / 144-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-36Q-AC-IR
List Price: $570,000.00
Our Price: $458,850.00
PTX1000 Full IP system with 36-port 100GbE QSFP28 / 36-port 40GbE QSFP+ / 144-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-36Q-AC-R
List Price: $780,000.00
Our Price: $627,900.00
PTX1000 LSR/Peering system with 18-port 100GbE QSFP28 / 18-port 40GbE QSFP+ / 72-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
#PTX1K-18Q-DC-IR
List Price: $300,000.00
Our Price: $241,500.00
PTX1000 Full IP system with 18-port 100GbE QSFP28 / 18-port 40GbE QSFP+ / 72-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
#PTX1K-18Q-AC-R
List Price: $370,000.00
Our Price: $297,850.00
PTX1000 Full IP system with 18-port 100GbE QSFP28 / 18-port 40GbE QSFP+ / 72-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
#PTX1K-18Q-DC-R
List Price: $400,000.00
Our Price: $322,000.00
PTX1000 Junos Software
PTX1000 1600 W AC power supply
#JPSU-1600W-AC-AFO
List Price: $5,000.00
Our Price: $4,025.00
PTX1000 1600 W DC power supply
#JPSU-1600W-DC-AFO
List Price: $6,000.00
Our Price: $4,830.00
