Juniper Networks OCX1100
48-port Open Networking Switch


Juniper Networks OCX1100

Juniper Networks Products
OCX1100 Open Networking Switch
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, AC power supply, back-to-front airflow
#OCX1100-48SX-AFI
List Price: $32,000.00
Our Price: $25,760.00
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, AC power supply, front-to-back airflow
#OCX1100-48SX-AFO
List Price: $32,000.00
Our Price: $25,760.00
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, 48 V DC power supply, back-tofront airflow
#OCX1100-48SX-D-AFI
List Price: $33,000.00
Our Price: $26,565.00
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, 48 V DC power supply, front-toback airflow
#OCX1100-48SX-D-AFO
List Price: $33,000.00
Our Price: $26,565.00

Click here to jump to more pricing!

Overview:

The OCX1100 is an open networking switch backed by the Open Compute Project (OCP) Foundation. It is designed for large cloud builders looking to capitalize on innovations derived from real-world massive-scale data center customer environments.

Combined with the power of Junos operating system software, the OCX1100 is cloud-optimized, open-source switching hardware built on commercially sourced components. Featuring an OCP-submitted design, the OCX1100 ensures that customers are running a consistent and open hardware platform.

By offering a single-source solution, the OCX1100 offers the economies of an open hardware design while providing a level of support and reliability not typically available with other white box solutions.

Offering 48 small form-factor pluggable and pluggable plus (SFP/SFP+) transceiver ports and six quad SFP+ (QSFP+) ports in a compact 1 U platform, the OCX1100 is designed for cloud builders who want an open source hardware platform but won’t compromise on performance, reliability, or support. Featuring an aggregate throughput of 1.44 Tbps or 1.08 Bpps per switch, the OCX1100 is an ideal high-density, top-of-rack solution for large-scale Layer 3 Clos deployments.

Product Description

Large-scale cloud-based data centers require a new set of networking capabilities that set them apart from traditional IT data centers. With the help of organizations such as the Open Compute Project (OCP), a new breed of switching platform is emerging based on these minimalistic design requirements.

Juniper Networks OCX1100 is an open networking switch based on hardware specifications ratified by the OCP. Combining a cloud-optimized OCP-submitted hardware design with the industry-proven and feature-rich Juniper Networks Junos operating system, the OCX1100 gives customers all of the benefits of an open source hardware design with none of the compromises.

The Juniper Networks OCX1100 open networking switch is designed for large Cloud Builders looking to capitalize on innovations derived from real-world, massive scale, data center customer environments and backed by the industry recognized Open Compute Project (OCP) Foundation.

Running the hardened, carrier-class Juniper Networks Junos operating system, the OCX1100 combines the power, performance, and reliability of a proven network OS with cloudoptimized, open source switching hardware built on commercially sourced components.

The OCX1100 is based on OCP-submitted design specifications, ensuring that customers are leveraging a consistent and open hardware platform. By offering a single source solution, the OCX1100 offers customers the economies of an open hardware design while providing a level of software features, support, and reliability not typically available with other white box solutions.

Architecture and Key Components:

The OCX1100 offers 48 small form-factor pluggable and pluggable plus (SFP/ SFP+) transceiver ports and six quad SFP+ (QSFP+) ports in a compact 1 U platform. It is designed for Cloud Builders who want an open source hardware platform but won’t compromise on performance, reliability, or support. Featuring an aggregate throughput of 1.44 Tbps per switch, the OCX1100 is an ideal high-density top-of-rack solution for largescale IP Fabric deployments.

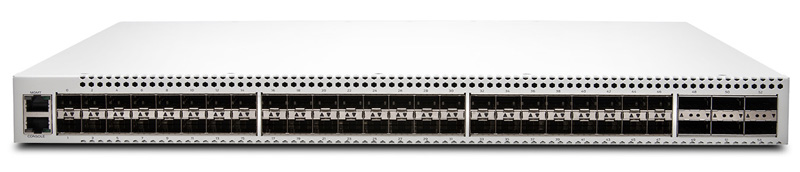

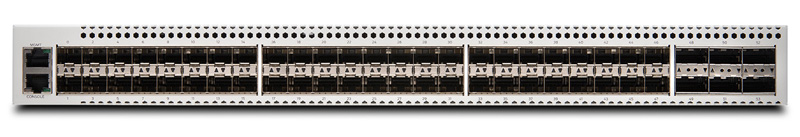

Front Panel

The OCX1100 front panel features the following ports:

Port (Form Factor) Quantity Speed Description
Reset button 1 N/A Located inside the pinhole on the switch’s front panel, pressing and holding this button for 3-5 seconds restores factory settings.
Management port (RJ-45) 1 10/100/1000 Mbps Used to configure software features on the switch.
Console port (RJ-45) 1 115,200 bps (Bauds) An out-of-band console port used to configure software features on the switch.
Storage port (microUSB, type-A) 1 480 Mbps An external storage port used to back up and load system-related files.
SFP+ ports 48 10 Gbps 10GbE SFP+ wire-speed ports.
QSFP+ ports 6 10 Gbps/40 Gbps 10/40GbE Gbps QSFP+ wirespeed ports.

Back Panel

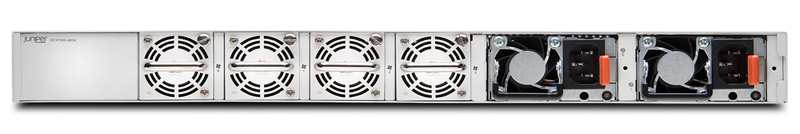

The OCX1100 back panel features the following modules:

Port (Form Factor) Quantity Speed Description
Fan modules 4 Front-to-back or back-tofront The OCX1100 includes four fan module slots. Four fan modules are included in the base unit.
Power supply modules 2 Front-to-back or back-tofront The OCX1100 includes two power supply module slots. Two power supply modules (AC or DC) are included in the base unit.

Junos OS

The OCX1100 switch runs Junos OS, Juniper’s feature-rich, powerful, and robust network operating system. The following key Junos OS features enhance the functionality and capabilities of the OCX1100:

  • A powerful set of scripts for on-box problem detection, reporting, and resolution • Rich automation capabilities that address the need for more automation and programmability in large data centers, including support for Python, Chef, Puppet, and zero-touch provisioning (ZTP) • Commit and rollback functionality that ensures error-free network configurations • Software modularity, with process modules running independently in their own protected memory space and the ability to do process restarts • A rich set of Layer 3 features for IPv4 and IPv6 deployments, including BGP, OSPF, IS-IS, and BGP add path (see the Software Features section for a detailed list)

Data Center Deployments

The OCX1100 is ideal for top-of-rack Layer 3 deployments. It supports 48 ports of native 10GbE for server connectivity and up to six 40GbE ports for uplink connectivity, providing very low 2:1 oversubscription from access to aggregation. Each 40GbE port can also be broken out into four 10GbE ports, providing additional options for server connectivity.

Running the Junos OS, which features the most advanced and robust routing capabilities in the industry, the OCX1100 includes support for RIP, OSPF, IS-IS, and BGP for both IPv4 and IPv6 in the base software. With additional capabilities like 64-way equal-cost multipath (ECMP) and BGP add path, the OCX1100 is an optimized building block for deploying IP fabrics.1

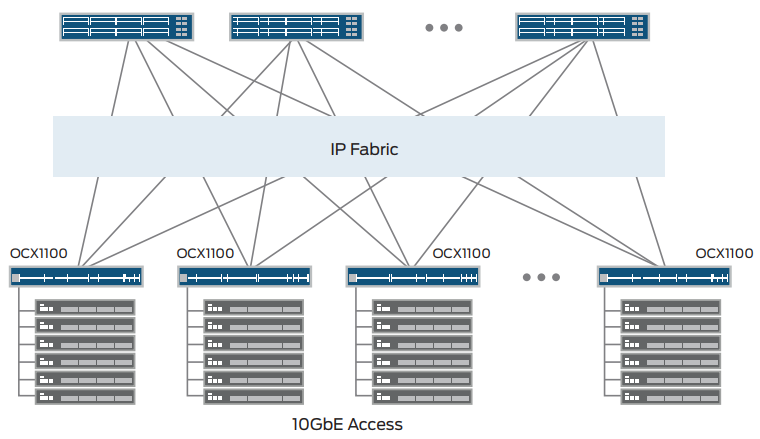

IP fabric deployment using the OCX1100
IP fabric deployment using the OCX1100

1 Since the OCX1100 platform is optimized for Layer 3 data centers, certain enterprise features such MC-LAG and Virtual Chassis Fabric are not supported on this platform.

Features and Benefits:

OCX1100 Switch Benefits

  • Cloud-optimized solution: The OCX1100 offers a costeffective, open source switching solution for large-scale cloud deployments that value the simplicity and reliability of the carrier-class Junos operating system.
  • Open architecture: The OCX1100 is based on OCPsubmitted design specifications, allowing customers to leverage the open source hardware design community.
  • Superior reliability: Combining the carrier-class Junos operating system with an open source hardware architecture, the OCX1100 delivers a highly reliable, cost-effective switching solution.
  • Consistent operating environment: Running Junos OS on the cloud-optimized OCX1100 switch lowers the learning curve for customers who already use Juniper switches, routers, or security appliances in other parts of their network.
  • Investment protection: Compatible with Juniper Networks QFX5100 Ethernet Switches, the OCX1100 can be easily deployed in existing Juniper network environments.
  • Single source solution: Both the switching platform and operating system come from the same vendor, providing a single point of contact for software and hardware support.

Specifications:


Model: OCX1100 Switch
Dimensions (H x W x D) 17.3 x 1.72 x 19.2 in (44.0 x 4.4 x 48.7 cm); 1 U
Weight 9.07 kg (with 2 AC PSUs and 4 fans installed)
Power Options 100 to 240 V AC (single phase) at 50/60 Hz or -40.5 to -60 V DC
Cooling Four hot-swappable fan modules with reversible air flow
Operating Temperature 0° to 40°C
Storage Temperature -40° to 70°C (-40° to 158°F)
Operating Relative Humidity 0% to 95% (noncondensing)
Storage Relative Humidity 0% to 95% (noncondensing)
Altitude 0 to 3,000 meters (0 to 9,850 feet)
Throughput 1.44 Tbps
Form Factor Fixed-configuration platform
Data Rate (switching capacity) 1.08 Bpps
Port Densities 48 1GbE/10GbE SFP/SFP+ ports; 6 40GbE QSFP+ ports
Maximum 10GbE Density 72 ports (48 10GbE SFP/SFP+ ports + 24 10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics)
Maximum 40GbE Density 6 ports
Resiliency Dual hot-swappable AC or DC power supplies for 1+1 redundancy (two included); four hot-swappable redundant fan module ports (for fan modules included)
Power Consumption 185 W
Operating System Junos OS
Buffer Size 12 MB Shared
Media Access Control (MAC) Addresses 288,000
Jumbo Frames 9,216 bytes
IPv4 Hosts 112,000
IPv4 Unicast Routes 112,000
IPv4 Multicast Routes 104,000
IPv6 Hosts 56,000
IPv6 Unicast Routes 56,000
IPv6 Multicast Routes 52,000
Warranty Juniper standard one year warranty

Additional Feature Specifications:

Software Features

Layer 3 Features (IPv4)

  • Static routing
  • Routing policy
  • Routing protocols (RIP, OSPF, IS-IS, BGP)
  • Bidirectional Forwarding Detection (BFD) protocol
  • Dynamic Host Configuration Protocol (DHCP) relay
  • Proxy Address Resolution Protocol (ARP)

Layer 3 Features (IPv6)

  • BGP for IPv6
  • IPv6 static routing
  • IS-IS for IPv6
  • Neighbor Discovery Protocol
  • Open Shortest Path First version 3 (OSPFv3) for IPv6

Multicast Features

  • Internet Group Management Protocol (IGMP): v1, v2, v3
  • IGMP snooping: v1, v2, v3
  • IGMP filter
  • PIM-SM
  • Multicast Source Discovery Protocol (MSDP)
  • IPv6 Multicast Listener Discovery protocols (MLDv1/v2)

Security and Filters

  • Secure interface login and password
  • RADIUS
  • TACACS+
  • Ingress and egress filters: Allow and deny routed filters, including management port filters
  • Filter actions: Logging, system logging, reject, counters, assign forwarding class, permit, drop, police, mark
  • SSH v1, v2
  • Static ARP support
  • Storm control, port error disable, and autorecovery
  • Control plane denial-of-service (DoS) protection
  • IP Source Guard
  • Dynamic ARP Inspection (DAI)
  • Sticky MAC address
  • DHCP snooping

Quality of Service (QoS)

  • L3 QoS: Classification, rewrite, queuing
  • Rate limiting:
    - Ingress policing: 1 rate 2 color, 2 rate 3 color
    - Egress policing: Policer, policer mark down action
    - Egress shaping: Per queue, per port
  • Strict priority queuing (LLQ), shaped-deficit weighted roundrobin (SDWRR), weighted random early detection (WRED), weighted tail drop
  • 802.1p remarking
  • Congestion avoidance capabilities: WRED

Management and Operations

  • Role-based CLI management and access
  • CLI via console, telnet, or SSH
  • Extended ping and traceroute
  • Junos OS configuration rescue and rollback
  • Image rollback
  • SNMP v1/v2/v3
  • Junos XML management protocol
  • sFlow v5
  • High frequency statistics collection
  • Beacon LED for port and system
  • Automation and orchestration
  • Zero-touch provisioning (ZTP)
  • OpenStack Neutron Plug-in
  • Puppet
  • Chef
  • Python
  • Junos OS event, commit, and OP scripts

Standards Compliance

Supported RFCs

  • RFC 768 UDP
  • RFC 783 Trivial File Transfer Protocol (TFTP)
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 854 Telnet client and server
  • RFC 894 IP over Ethernet
  • RFC 903 RARP
  • RFC 906 TFTP Bootstrap
  • RFC 951 1542 BootP
  • RFC 1058 Routing Information Protocol
  • RFC 1112 IGMP v1
  • RFC 1122 Host requirements
  • RFC 1142 OSI IS-IS Intra-domain Routing Protocol
  • RFC 1256 IPv4 ICMP Router Discovery (IRDP)
  • RFC 1492 TACACS+
  • RFC 1519 Classless Interdomain Routing (CIDR)
  • RFC 1587 OSPF not-so-stubby area (NSSA) Option
  • RFC 1591 Domain Name System (DNS)
  • RFC 1745 BGP4/IDRP for IP—OSPF Interaction
  • RFC 1772 Application of the Border Gateway Protocol in the Internet
  • RFC 1812 Requirements for IP Version 4 routers
  • RFC 1997 BGP Communities Attribute
  • RFC 2030 SNTP, Simple Network Time Protocol
  • RFC 2068 HTTP server
  • RFC 2131 BOOTP/DHCP relay agent and Dynamic Host
  • RFC 2138 RADIUS Authentication
  • RFC 2139 RADIUS Accounting
  • RFC 2154 OSPF w/Digital Signatures (Password, MD-5)
  • RFC 2236 IGMP v2
  • RFC 2267 Network ingress filtering
  • RFC 2328 OSPF v2 (edge mode)
  • RFC 2362 PIM-SM (edge mode)
  • RFC 2370 OSPF Opaque link-state advertisement (LSA) Option
  • RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option
  • RFC 2439 BGP Route Flap Damping
  • RFC 2453 RIP v2
  • RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers
  • RFC 2597 Assured Forwarding PHB (per-hop behavior) Group
  • RFC 2598 An Expedited Forwarding PHB
  • RFC 2697 A Single Rate Three Color Marker
  • RFC 2698 A Two Rate Three Color Marker
  • RFC 2796 BGP Route Reflection—An Alternative to Full Mesh Internal BGP (IBGP)
  • RFC 2918 Route Refresh Capability for BGP-4
  • RFC 3065 Autonomous System Confederations for BGP
  • RFC 3376 IGMP v3 (source-specific multicast include mode only)
  • RFC 3392 Capabilities Advertisement with BGP-4
  • RFC 3446, Anycast RP
  • RFC 3569 SSM
  • RFC 3618 MSDP
  • RFC 3623 Graceful OSPF Restart
  • RFC 4271 Border Gateway Protocol 4 (BGP-4)
  • RFC 4360 BGP Extended Communities Attribute
  • RFC 4456 BGP Route Reflection: An Alternative to Full Mesh IBGP
  • RFC 4486 Subcodes for BGP Cease Notification Message
  • RFC 4724 Graceful Restart Mechanism for BGP
  • RFC 4812 OSPF Restart Signaling
  • RFC 4893 BGP Support for Four-octet AS Number Space
  • RFC 5176 Dynamic Authorization Extensions to RADIUS
  • RFC 5396 Textual Representation of Autonomous System (AS) Numbers
  • RFC 5668 4-Octet AS Specific BGP Extended Community
  • RFC 5880 Bidirectional Forwarding Detection (BFD)
  • Configuration Protocol (DHCP) server

Supported MIBs

  • RFC 1155 SMI
  • RFC 1157 SNMPv1
  • RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs
  • RFC 1850 OSPFv2 MIB
  • RFC 1901 Introduction to Community-based SNMPv2
  • RFC 2011 SNMPv2 for Internet protocol using SMIv2
  • RFC 2012 SNMPv2 for transmission control protocol using SMIv2
  • RFC 2013 SNMPv2 for user datagram protocol using SMIv2
  • RFC 2233, The Interfaces Group MIB using SMIv2
  • RFC 2287 System Application Packages MIB
  • RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework
  • RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access)
  • RFC 2572 Message Processing and Dispatching for the SNMP (read-only access)
  • RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3
  • RFC 2578 SNMP Structure of Management Information MIB
  • RFC 2579 SNMP Textual Conventions for SMIv2
  • RFC 2580 Conformance Statements for SMIv2
  • RFC 2665 Ethernet-like interface MIB
  • RFC 2790 Host Resources MIB
  • RFC 2819 RMON MIB
  • RFC 2863 Interface Group MIB
  • RFC 2932 IPv4 Multicast MIB
  • RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
  • RFC 3411 An architecture for describing SNMP Management Frameworks
  • RFC 3412 Message Processing and Dispatching for the SNMP
  • RFC 3413 Simple Network Management Protocol (SNMP)— (all MIBs are supported except the Proxy MIB)
  • RFC 3414 User-based Security Model (USM) for version 3 of SNMPv3
  • RFC 3415 View-based Access Control Model (VACM) for the SNMP
  • RFC 3416 Version 2 of the Protocol Operations for the SNMP
  • RFC 3417 Transport Mappings for the SNMP
  • RFC 3418 Management Information Base (MIB) for the SNMP
  • RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
  • RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model

Approvals

Safety

  • CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment—Safety
  • UL 60950-1 (2nd Ed.) Information Technology Equipment— Safety
  • EN 60950-1 (2005) Information Technology Equipment— Safety
  • IEC 60950-1 (2005) Information Technology Equipment— Safety (All country deviations): CB Scheme report
  • CNS 14336-1
  • GB4943.1

EMC

  • EN 55022/EN 55024, Class A
  • FCC CFR47, Part 15B, Class A
  • ICES-003, Class A
  • CNS 13438, Class A
  • GB9254
  • YDT993

Regulatory Compliance

  • Comply with CE Markings per directives 2004/108/EC and 2006/95/EC
  • FCC/IC Report Class A
  • BSMI
  • UL/cUL Listed Mark
  • CCC
  • CB

Views:


Top Front View
Top Front View

Front View
Front View
Rear View
Rear View

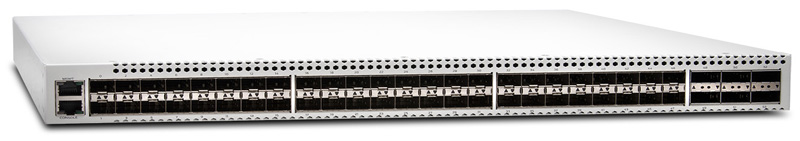

Left Angle View
Left Angle View
Right Angle View
Right Angle View

Pricing Notes:

OCX1100 Open Networking Switch
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, AC power supply, back-to-front airflow
#OCX1100-48SX-AFI
List Price: $32,000.00
Our Price: $25,760.00
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, AC power supply, front-to-back airflow
#OCX1100-48SX-AFO
List Price: $32,000.00
Our Price: $25,760.00
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, 48 V DC power supply, back-tofront airflow
#OCX1100-48SX-D-AFI
List Price: $33,000.00
Our Price: $26,565.00
OCX1100 48x10GbE SFP+ and 6x40GbE ports, 1U system, 48 V DC power supply, front-toback airflow
#OCX1100-48SX-D-AFO
List Price: $33,000.00
Our Price: $26,565.00
Juniper Care for OCX1100
Juniper Care Core Support for OCX1100-48SX, AC/DC, AFI/AFO
#SVC-COR-OCX1100
List Price: $672.00
Our Price: $641.00
Juniper Care Core Plus Support for OCX1100-48SX, AC/DC, AFI/AFO
#SVC-CP-OCX1100
List Price: $896.00
Our Price: $855.00
Juniper Care Next Day Support for OCX1100-48SX, AC/DC, AFI/AFO
#SVC-ND-OCX1100
List Price: $1,120.00
Our Price: $1,069.00
Juniper Care Next Day Onsite Support for OCX1100-48SX, AC/DC, AFI/AFO
#SVC-NDCE-OCX1100
List Price: $1,456.00
Our Price: $1,390.00
Juniper Care Same Day Support for OCX1100-48SX, AC/DC, AFI/AFO
#SVC-SD-OCX1100
List Price: $1,960.00
Our Price: $1,871.00
Juniper Care Same Day Onsite Support for OCX1100-48SX, AC/DC, AFI/AFO
#SVC-SDCE-OCX1100
List Price: $2,453.00
Our Price: $2,341.00
Power Supply Unit
AC power supply unit, back-to-front airflow
#OCX-460W-X-AC-AFI
List Price: $1,500.00
Our Price: $1,208.00
AC power supply unit, front-to-back airflow
#OCX-460W-X-AC-AFO
List Price: $1,500.00
Our Price: $1,208.00
DC power supply unit, back-to-front airflow
#OCX-460W-X-DC-AFI
List Price: $2,000.00
Our Price: $1,610.00
DC power supply unit, front-to-back airflow
#OCX-460W-X-DC-AFO
List Price: $2,000.00
Our Price: $1,610.00
Fan Module
Fan module, back-to-front airflow
#OCX-FAN-X-AFI
List Price: $300.00
Our Price: $242.00
Fan module, front-to-back airflow
#OCX-FAN-X-AFO
List Price: $300.00
Our Price: $242.00
Pluggable Optics
SFP+ 10GBASE-SR 10GbE optics, 850nm for up to 300m transmission on multimode fiber (MMF)
#QFX-SFP-10GE-SR
List Price: $1,500.00
Our Price: $1,208.00
SFP+ 10GBASE-LR 10 GbE optics, 1,310nm for 10 km transmission on single mode fiber-optic (SMF)
#QFX-SFP-10GE-LR
List Price: $4,000.00
Our Price: $3,220.00
SFP+ 10GbE Direct Attach Copper (twinax copper cable), 1m
#QFX-SFP-DAC-1M
List Price: $150.00
Our Price: $121.00
SFP+ 10GbE Direct Attach Copper (twinax copper cable), 3m
#QFX-SFP-DAC-3M
List Price: $210.00
Our Price: $169.00
QSFP+ 40GBASE-SR4 40GbE optics, 850nm for up to 150m transmission on MMF
#QFX-QSFP-40G-SR4
List Price: $4,000.00
Our Price: $3,220.00
