Juniper Networks NSMXpress

NSMXpress Overview:

Now more than ever, network operators need the ability to easily manage security policies and to have visibility into potential security concerns in the network. At the same time, they need to invest their time in monitoring and operating secure networks. Juniper Networks NSMXpress enables IT departments not only to control the entire device life cycle with a single, centralized solution, but also provides visibility with a complete set of investigative and reporting tools.

Juniper Networks® NSMXpress and NSM3000 are purpose built security hardened appliance versions of Juniper Networks Network and Security Manager (NSM) optimized towards providing a single centralized management solution to effectively manage Juniper Networks family of devices including routers, switches, and firewalls.

While the NSMXpress is primarily geared towards small to mid market, the NSM3000 scales to the requirements of large enterprise customers with the capability to manage up to 1,500 devices. These appliances, which install in minutes with high availability (HA) support, not only simplify the complexity of device administration by providing a single integrated management interface that controls every device parameter, but also eliminate the need to have dedicated resources for maintaining the management solution.

NSM3000 and NSMXpress have the following features:

• Provides appliance version of NSM
• Offers centralized, end-to-end device life cycle management for granular control of configuration, network settings and security policies
• Allows for delegation of administrative roles, which provides relevant access to those who need it
• Offers easy installation with operational efficiency that delivers lower total cost of ownership (TCO)
• Provides dedicated HA support

Features & Benefits:

Architecture and Key Components:

Managed Juniper Networks devices

Technical Specifications:

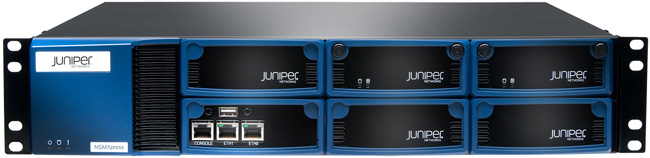

Front View

Rear View

Model:	NSMXpress	NS M3000
Dimensions and Power
Dimensions (W x H x D)	17.26 x 3.5 x 17.72 in (43.84 x 8.8 x 45 cm)	17.26 x 3.5 x 17.72 in (43.8 x 8.8 x 45 cm)
Weight	26 lb 6 oz	27 lb 10 oz with 1 power supply 30 lb with 2 power supplies
Rack mountable	Yes, 19 in rack, front and rear or mid-mount, flush or recessed mounting	Yes, 19 in rack, front and rear or mid-mount
A/C power supply	90V to 264V 250W AC power module · Efficiency 80Plus certified · Peak inrush current is: - 40A max. at 115VAC and 25C - 80A max. at 240VAC and 25C	90V to 264V hot swap dual redundant 250W AC power module, 90V to 264V hot swap · Efficiency 80Plus certified · Peak inrush current is: - 40A max. at 115VAC and 25C - 80A max. at 240VAC and 25C
System battery	CR2032 3 V lithium coin cell	CR2032 3V lithium coin cell
Efficiency	65% minimum, at full load	80 PLUS Certified
MTBF	103,000 hours (1x power supply), 152,000 hours (2x power supply)	71,000 hours (1x power supply), 91,000 hours (2x power supply)
Material	18 gauge (.048”) cold-rolled steel	18 gauge (.048 in) cold-rolled steel
Fans	Two externally accessible, hot-swappable ball-bearing fans	2x80 mm hot swap
Panel display	LEDs: power, HD activity, hardware alert HD activity and fail LED on drive tray	LEDs: power, HD activity, hardware alert HD activity and fail LED on drive tray
Ports	Two externally accessible, hot-swappable ball-bearing fans	2x80 mm hot swap
Environment
Operating Temperature	41° F to 104° F (5° C to 40° C)	41° F to 104° F (5° C to 40° C)
Storage Temperature	-40° F to 158° F (-40° C to 70° C)	-40° F to 158° F (-40° C to 70° C)
Relative Humidity (Operating)	8% to 90% non-condensing	8% to 90% noncondensing
Relative Humidity (Storage)	5% to 95% non-condensing	5% to 95% non-condensing
Altitude (Operating)	10,000 ft (3,000 m) maximum	10,000 ft (3,000 m) maximum
Altitude (Storage)	40,000 ft (12,192 m) maximum	40,000 ft (12,192 m) maximum
Power Consumption
Thermal dissipation	416 BTU/hr (typical) 470 BTU/hr (max single power supply) 559 BTU/hr (max dual power supply)	Single power supply: • 89 W, 304 BTU/hr (typical) • 154 W, 526 BTU/hr (max) Dual power supplies: • 96 W, 327 BTU/hr (typical) • 162 W, 552 BTU/hr (max)
Peak inrush current	50A max @ 115 VAC, 80A max @ 230 VAC	40A max @ 115 VAC, 80A max @ 240 VAC
Certifications
Safety Certifications	CSA 60950-1 (2003) Safety of Information Technology Equipment UL 60950-1 (2003) Safety of Information Technology Equipment EN 60950-1 (2001) Safety of Information Technology Equipment IEC 60950-1 (2001) Safety of Information Technology Equipment (with country deviations) EN 60825-1 +A1+A2 (1994) Safety of Laser Products - Part 1: Equipment Classification EN 60825-2 (2000) Safety of Laser Products - Part 2: Safety of Optical Fiber Comm. Systems	CSA 60950-1 (2003) Safety of Information Technology Equipment UL 60950-1 (2003) Safety of Information Technology Equipment EN 60950-1 (2001) Safety of Information Technology Equipment IEC 60950-1 (2001) Safety of Information Technology Equipment (with country deviations) EN 60825-1 +A1+A2 (1994) Safety of Laser Products - Part 1: Equipment Classification EN 60825-2 (2000) Safety of Laser Products - Part 2: Safety of Optical Fiber Comm. Systems
EMC	EN 300 386 V1.3.3 (2005) Telecom Network Equipment - EMC requirements EN 300 386 V1.3.3 (2005) Telecom Network Equipment - EMC requirements	EN 300 386 V1.3.3 (2005) Telecom Network Equipment - EMC requirements EN 300 386 V1.3.3 (2005) Telecom Network Equipment - EMC requirements
EMI	FCC Part 15 Class A (2007) USA Radiated Emissions EN 55022 Class A (2006) European Radiated Emissions VCCI Class A (2007) Japanese Radiated Emissions FCC Part 15 Class A (2007) USA Radiated Emissions EN 55022 Class A (2006) European Radiated Emissions VCCI Class A (2007) Japanese Radiated Emissions	FCC Part 15 Class A (2007) USA Radiated Emissions EN 55022 Class A (2006) European Radiated Emissions VCCI Class A (2007) Japanese Radiated Emissions FCC Part 15 Class A (2007) USA Radiated Emissions EN 55022 Class A (2006) European Radiated Emissions VCCI Class A (2007) Japanese Radiated Emissions
Immunity	EN 55024 +A1+A2 (1998) Information Technology Equipment Immunity Characteristics EN-61000-3-2 (2006) Power Line Harmonics EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge EN-61000-4-3 +A1+A2 (2002) Radiated Immunity EN-61000-4-4 (2004) Electrical Fast Transients EN-61000-4-5 (2006) Surge EN-61000-4-6 (2007) Immunity to Conducted Disturbances EN-61000-4-11 (2004) Voltage Dips and Sags EN 55024 +A1+A2 (1998) Information Technology Equipment Immunity Characteristics EN-61000-3-2 (2006) Power Line Harmonics EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge EN-61000-4-3 +A1+A2 (2002) Radiated Immunity EN-61000-4-4 (2004) Electrical Fast Transients EN-61000-4-5 (2006) Surge EN-61000-4-6 (2007) Immunity to Conducted Disturbances EN-61000-4-11 (2004) Voltage Dips and Sags	EN 55024 +A1+A2 (1998) Information Technology Equipment Immunity Characteristics EN-61000-3-2 (2006) Power Line Harmonics EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge EN-61000-4-3 +A1+A2 (2002) Radiated Immunity EN-61000-4-4 (2004) Electrical Fast Transients EN-61000-4-5 (2006) Surge EN-61000-4-6 (2007) Immunity to Conducted Disturbances EN-61000-4-11 (2004) Voltage Dips and Sags EN 55024 +A1+A2 (1998) Information Technology Equipment Immunity Characteristics EN-61000-3-2 (2006) Power Line Harmonics EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge EN-61000-4-3 +A1+A2 (2002) Radiated Immunity EN-61000-4-4 (2004) Electrical Fast Transients EN-61000-4-5 (2006) Surge EN-61000-4-6 (2007) Immunity to Conducted Disturbances EN-61000-4-11 (2004) Voltage Dips and Sags

Performance-Enabling Services and Support

Juniper Networks is the leader in performance-enabling services and support, which are designed to accelerate, extend, and optimize your high-performance network. Our services allow you to bring revenue-generating capabilities online faster so you can realize bigger productivity gains, faster rollouts of new business models and ventures, and greater market reach, while generating higher levels of customer satisfaction. At the same time, Juniper Networks ensures operational excellence by optimizing your network to maintain required levels of performance, reliability, and availability.

Device & Software Support:

Documentation:

Download the Juniper Networks NSMXpress and NSM3000 Datasheet (PDF).
