Juniper Networks MAG2600 Junos Pulse Gateway

Single point of access convergence for the VAP and Network Access Control

Juniper Networks MAG2600 Junos Pulse Gateway

Juniper Networks Products
MAG Series Appliances
Juniper Networks Junos Pulse Gateway 2600 Base System
*Special Discount Available till 4/30/14!
#MAG2600
List Price: $1,500.00
Special: $966.00

More pricing below, click here!

MAG2600 Overview:

The MAG2600 gateway delivers SSL VPN and guest access capabilities to small and medium enterprise customers. With its quiet operation and tabletop form factor, the MAG2600 provides ultimate flexibility in deployment.

The MAG2600 comes with a single application engine in a fixed hardware configuration. It is designed to fulfill the niche of small to medium scale SSL VPN deployments of up to 100 concurrent users, or enterprise guest network and application access deployments of up to 200 guest users. The MAG2600's small form factor design measures a sleek four inches by seven inches in size (4" x 7"), and is one unit (1U) in height; it can be rack mounted or even placed on a desk.

The challenge for today’s technology leader is to build an infrastructure that provides easy, secure access to the corporate network for all workers— road warriors, telecommuters, mobile workers, office workers, contractors, guests, partners, etc.—with role-based access while minimizing costs. The Juniper Networks MAG Series Junos Pulse Gateways deliver SSL VPN connectivity and network access control (NAC) capabilities in a single, purpose designed gateway. With Junos Pulse integrated within the MAG Series, this unified client and gateway solution addresses enterprise access needs over a breadth of devices for all enterprise sizes, while granting user permissions at high speed and keeping hardware investment costs low.

The Juniper Networks® MAG Series Junos® Pulse Gateways is a family of modular, purpose designed gateways that meet the secure remote access and LAN access needs of enterprises from small to large. Deployed in combination and working in concert with the award-winning Juniper Networks Junos Pulse client, deployable on mobile devices, laptops, and desktops, the modular MAG Series delivers a single point of convergence for the SSL VPN and NAC needs of any enterprise.

The MAG Series gateways achieve a revolutionary reduction in OpEx and CapEx costs for the enterprise with a secure connectivity infrastructure that increases application density, adds massive scale, and provides easy reprogrammable ”personality” changes between SSL VPN and NAC mode. Additionally, these gateways help enterprises reduce operational, implementation, and provisioning expenses related to device management by replacing multiple disparate clients with a single, integrated, multiservice client—Junos Pulse. This combination of gateway features and functionality with the Junos Pulse client and its built-in support for mobile devices, laptops, and desktops has been specifically designed to change the economics of the enterprise’s secure access infrastructure.

Juniper Networks MAG2600 Left Angle

Features & Benefits:

The MAG Series Junos Pulse Gateways, in conjunction with Junos Pulse, provide a single enabling user interface and single gateway solution which lowers OpEx and CapEx costs significantly by reducing the number of management and software installations and updates required on end user devices. In large environments, the MAG Series gateways replace multiple hardware devices with a single converged device, further lowering the overall cost.

The simplified, integrated, multiservice Junos Pulse works in concert with the MAG Series Junos Pulse Gateways to enable optimized anytime, anywhere access to corporate networks and data from mobile and nonmobile devices alike.

Cross-platform SSL VPN capabilities allow users to access corporate resources from any type of device (i.e., desktop PCs, laptops, smartphones, tablets, other mobile devices) using nearly any type of operating system (Microsoft Windows, Apple Mac OS, Linux, Apple iOS, Google Android, Nokia Symbian, Microsoft Windows Mobile, etc.). Existing backend data stores and directories such as Microsoft Active Directory or Lightweight Directory Access Protocol (LDAP) in customer networks can be leveraged for authentication and authorization, simplifying network administration and maintenance.

Features Benefits
Single client, single gateway The MAG Series Junos Pulse Gateways in conjunction with the Junos Pulse client lower OpEx and CapEx costs dramatically, because they reduce the number of management and software installation updates required on corporate issued and personal devices used by employees. In large environments, the gateways replace multiple hardware devices with a single converged device, further bringing down costs.
High density modular design Modular design of the MAG Series allows the service modules to be mixed and matched to suit changing enterprise requirements in a flexible form factor.
Massive scalability The MAG Series can be used for a 100 concurrent user SSL VPN deployment up to a 40,000 concurrent SSL VPN user deployment, or a 200 concurrent guest user environment up to a 60,000 concurrent user NAC deployment.
Junos Pulse Simplified, integrated, multiservice network client works in concert with the MAG Series to enable optimized anytime, anywhere access to corporate data from mobile and nonmobile devices alike.
Host Checker Verifies and ensures that endpoint devices meet corporate security policy requirements before granting access, whether the user is remote, mobile, local, or a guest user, remediating devices, and quarantining users when necessary.
Identity- and role-based access Control user access based on the user’s identity or role, and grant access only authorized data.
Cross-platform support SSL VPN capabilities allow users to access corporate resources from any type of device (i.e., notebooks, netbooks, smartphones, tablet devices, other mobile devices, etc.) using nearly any type of operating system (Microsoft Windows, Apple Mac OS, Linux, Apple iOS, Google Android, Nokia Symbian, Microsoft Windows Mobile, etc.).
Leverages existing security infrastructure Existing backend data stores and directories such as Microsoft Active Directory or Lightweight Directory Access Protocol (LDAP) in customer networks can be leveraged for authentication and authorization, simplifying network administration and maintenance.


User License (Common Access License)

With the introduction of the MAG Series Junos Pulse Gateways, common access licenses are now available as user licenses. With common access licensing, licenses can either be used for SSL VPN user sessions or NAC user sessions. Please see the Ordering Information section for more details.

The common access user licenses provide functionality that allows users to access the network. They fully meet the needs of both basic and complex deployments with diverse audiences and use cases, and they require little or no client software or server changes, DMZ buildouts, or software agent deployments. For administrative ease of use when it comes to license counts, each license only enables as many users as specified in the license, and the licenses are additive. For example, if a 100 user license was originally purchased and the concurrent user count grows over the next year to exceed that amount, simply adding another 100 user license to the system will now allow for up to 200 concurrent users.

Junos Pulse Services for the MAG Series

Junos Pulse Secure Access Service
Enterprises and service providers have the difficult challenge of providing location- and device-independent network connectivity that is secure and capable of limiting resource access to authorized users. Breaches and threats continue to spiral out of control, and employees and users are seeking to use—or are encouraged by their employers to use—their own personal smartphones, and mobile and computing devices to access the enterprise network, applications, and corporate data, making this challenge even more difficult. Juniper Networks Junos Pulse Secure Access Service is a simple, intuitive service that provides secure, authenticated access for remote and mobile users from any web-enabled device to corporate resources—anytime and anywhere. Junos Pulse Secure Access Service uses SSL, the security protocol found in all standard Web browsers. The use of SSL eliminates the need for preinstalled client software, changes to internal servers, and costly ongoing maintenance and desktop support.

Junos Pulse Secure Access Service includes Juniper Networks Junos Pulse, a dynamic, integrated, multiservice network client for mobile and nonmobile devices. Junos Pulse enables optimized, accelerated anytime, anywhere access to corporate data. It enables secure SSL access from a wide range of mobile and nonmobile devices such as smartphones, tablet devices, netbooks, notebooks, desktops, Wi-Fi, or 3G-enabled devices. Junos Pulse delivers improved productivity and secure, ubiquitous access to corporate data and applications.

Junos Pulse Access Control Service
Junos Pulse Access Control Service enables safe, protected cloud and network access for mobile devices, whether they are remote or local. It provides network access control services across the enterprise, delivering a standards-based, comprehensive, network and application access control solution. The combination of the Junos Pulse client and the Junos Pulse Access Control Service delivers identity-based, location-aware, granular access control, as well as robust endpoint security and integrity checks.

When deployed in conjunction with MAG Series gateways, Junos Pulse and the Junos Pulse Access Control Service deliver fast, secure, anytime, anywhere network access, and they automatically migrate from one type of access (such as remote access) to another (local network access) based on the user’s location.

Junos Pulse, which is included with the Junos Pulse Access Control Service, delivers global identity-aware networking, complete with security and access control policies that follow users around the globe—regardless of how, from where, or from what device (smartphones, tablet devices, mobile devices) they are attempting network and application access. All user session data is shared in MAG Series gateways via the Trusted Network Connect (TNC) Interface to Metadata Access Point (IF-MAP) standard, enabling a seamless authentication flow.

Technical Specifications:

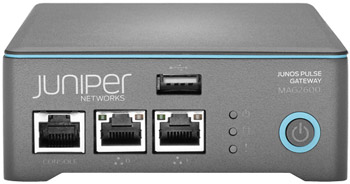

MAG2600 Front View
Front View
MAG2600 Rear View
Rear View

Model: MAG2600 MAG4610 MAG4611 MAG6610 MAG4611
  MAG2600 MAG4610 MAG4611 MAG6610 MAG4611
Dimensions and Power
Dimensions
(W x H x D)
4.31 x 1.65 x 7.73 in
(10.95 x 4.2 x 19.64 cm)
8.63 x 1.75 x 21.50 in
(21.92 x 4.45 x 54.61 cm)
8.63 x 1.75 x 21.50 in
(21.92 x 4.45 x 54.61 cm)
17.31 x 1.75 x 27.25 in
(43.97 x 4.45 x 69.22 cm)
17.31 x 3.5 x 27.25 in
(43.97 x 8.89 x 69.22 cm)
Weight 1.98 lb (900 g) 11.5 lb (5.2 kg) 11.5 lb (5.2 kg) 21 lb (9.5 kg) 31 lb (14.1 kg)
Rack mountable Yes, with optional tray Yes Yes Yes Yes
A/C power supply 100-240 VAC, 1A 50-60 Hz,
30 W maximum
100-240 VAC, 1A 50-60 Hz,
70 W maximum
100-240 VAC, 1A 50-60 Hz,
70 W maximum
100-240 VAC, 8A 50-60 Hz,
560 W maximum
100-240 VAC, 10A 50-60 Hz,
750 W maximum
System battery CR2032 3 V lithium coin cell CR2032 3 V lithium coin cell CR2032 3 V lithium coin cell CR2032 3 V lithium coin cell CR2032 3 V lithium coin cell
Efficiency 80% or greater at full load 80% or greater at full load 80% or greater at full load 80% or greater at full load 80% or greater at full load
Material Aluminum Steel Steel Steel Steel
Mean time between failure (MTBF) 212 khrs 142 khrs 142 khrs 707 khrs 428 khrs
LEDs Power, HDD activity, hardware alert Power, HDD activity, hardware alert Power, HDD activity, hardware alert On MAG Service Module: Power, HDD activity, hardware alert On MAG Service Module: Power, HDD activity, hardware alert
Ports • RJ45 serial (console port)
• Two RJ45 Ethernet 10/100/1000 (traffic)
• USB
• RJ45 serial (console port)
• Three RJ45 Ethernet 10/100/1000 (traffic)
• USB
• RJ45 serial (console port)
• Three RJ45 Ethernet 10/100/1000 (traffic)
• USB
• RJ45 serial (console port)
• Three RJ45 Ethernet 10/100/1000 (traffic)
• USB
• RJ45 serial (console port)
• Three RJ45 Ethernet 10/100/1000 (traffic)
• USB
Environment
Operating temperature 41° to 104° F
(5° to 40° C)
41° to 104° F
(5° to 40° C)
41° to 104° F
(5° to 40° C)
41° to 104° F
(5° to 40° C)
41° to 104° F
(5° to 40° C)
Storage temperature -40° to 158° F
(-40° to 70° C)
-40° to 158° F
(-40° to 70° C)
-40° to 158° F
(-40° to 70° C)
-40° to 158° F
(-40° to 70° C)
-40° to 158° F
(-40° to 70° C)
Relative humidity (operating) 8% to 90% noncondensing 8% to 90% noncondensing 8% to 90% noncondensing 8% to 90% noncondensing 8% to 90% noncondensing
Relative humidity (storage) 5% to 95% noncondensing 5% to 95% noncondensing 5% to 95% noncondensing 5% to 95% noncondensing 5% to 95% noncondensing
Altitude (operating) 10,000 ft maximum 10,000 ft maximum 10,000 ft maximum 10,000 ft maximum 10,000 ft maximum
Altitude (storage) 40,000 ft maximum 40,000 ft maximum 40,000 ft maximum 40,000 ft maximum 40,000 ft maximum
Certifications
Safety certifications EN 60950-1: 2006 (2nd Edition); CAN/CSA-C22.2 No. 60950-1 (2007); UL 60950-1 (2nd Ed.)
Emissions certifications EN 55022 (CISPR 22): 2006 +A1:2007; (ACMA) AS/NZS CISPR 22: 2006; FCC Part 15 Subpart B; Industry Canada ICES-003 Issue 4, February 2004; and VCCI V-3/2009.04 and V-4/2009.04 ETSI EN 300 386 V1.4.1 (2008-04) for a Class A Device
Warranty 90 days (Can be extended with support contract)

Juniper Networks Products
MAG Series Appliances
Juniper Networks Junos Pulse Gateway 2600 Base System
*Special Discount Available till 4/30/14!
#MAG2600
List Price: $1,500.00
Special: $966.00
License Options
User Licenses
Add 10 simultaneous users to MAG2600 Junos Pulse Gateway (SSL VPN or UAC)
*Special Discount Available till 4/30/14!
#ACCESSX600-ADD-10U
List Price: $1,996.00
Special: $1,170.00
Add 25 simultaneous users to MAG2600 Junos Pulse Gateway (SSL VPN or UAC)
*Special Discount Available till 4/30/14!
#ACCESSX600-ADD-25U
List Price: $3,956.00
Special: $2,320.00
Add 50 simultaneous users to MAG2600 Junos Pulse Gateway (SSL VPN or UAC)
*Special Discount Available till 4/30/14!
#ACCESSX600-ADD-50U
List Price: $7,476.00
Special: $4,384.00
Add 100 simultaneous users to MAG2600 Junos Pulse Gateway (SSL VPN or UAC)
*Special Discount Available till 4/30/14!
#ACCESSX600-ADD-100U
List Price: $13,596.00
Special: $7,974.00
Add 25 simultaneous Junos Pulse Collaboration users for MAG Series Junos Pulse Gateways #ACCESSX600-MTG-25U
List Price: $4,250.00
Our Price: $3,421.00
Add 50 simultaneous Junos Pulse Collaboration users for MAG Series Junos Pulse Gateways #ACCESSX600-MTG-50U
List Price: $7,999.00
Our Price: $6,439.00
Add 100 simultaneous Junos Pulse Collaboration users for MAG Series Junos Pulse Gateways #ACCESSX600-MTG-100U
List Price: $14,999.00
Our Price: $12,074.00
In Case of Emergency (ICE) license for MAG Series Junos Pulse Gateways #MAGX600-ICE
List Price: $21,995.00
Our Price: $17,706.00
ICE 25%: Burst to 25% of installed license count on MAG Series Junos Pulse Gateway #ACCESS-ICE-25PC
List Price: $7,699.00
Enterprise Guest Access License
*Special Discount Available till 4/30/14!
#MAGX600-GUEST-ACCESS
List Price: $5,000.00
Special: $2,932.00
Juniper Networks Support Options
Juniper Care (1-10 Users)
Juniper Care Core Support for MAG2600 (1-10 Users) #SVC-COR-MAG2600-S
List Price: $240.00
Our Price: $228.00
Juniper Care CorePlus Support for MAG2600 (1-10 Users) #SVC-CP-MAG2600-S
List Price: $300.00
Our Price: $285.00
Juniper Care NextDay Onsite Support for MAG2600 (1-10 Users) #SVC-NDCE-MAG2600-S
List Price: $420.00
Our Price: $399.00
Juniper Care NextDay Support for MAG2600 (1-10 Users) #SVC-ND-MAG2600-S
List Price: $320.00
Our Price: $304.00
Juniper Care SameDay Onsite Support for MAG2600 (1-10 Users) #SVC-SDCE-MAG2600-S
List Price: $900.00
Our Price: $855.00
Juniper Care SameDay Support for MAG2600 (1-10 Users) #SVC-SD-MAG2600-S
List Price: $690.00
Our Price: $656.00
Juniper Care (11-50 Users)
Juniper Care Core Support for MAG2600 (11-50 Users) #SVC-COR-MAG2600-L
List Price: $390.00
Our Price: $371.00
Juniper Care CorePlus Support for MAG2600 (11-50 Users) #SVC-CP-MAG2600-L
List Price: $480.00
Our Price: $456.00
Juniper Care NextDay Onsite Support for MAG2600 (11-50 Users) #SVC-NDCE-MAG2600-L
List Price: $680.00
Our Price: $646.00
Juniper Care NextDay Support for MAG2600 (11-50 Users) #SVC-ND-MAG2600-L
List Price: $520.00
Our Price: $494.00
Juniper Care SameDay Onsite Support for MAG2600 (11-50 Users) #SVC-SDCE-MAG2600-L
List Price: $1,460.00
Our Price: $1,387.00
Juniper Care SameDay Support for MAG2600 (11-50 Users) #SVC-SD-MAG2600-L
List Price: $1,120.00
Our Price: $1,064.00
Juniper Care (51-100 Users)
Juniper Care Core Support for MAG2600 (51-100 Users) #SVC-COR-MAG2600-M
List Price: $620.00
Our Price: $589.00
Juniper Care CorePlus Support for MAG2600 (51-100 Users) #SVC-CP-MAG2600-M
List Price: $760.00
Our Price: $722.00
Juniper Care NextDay Onsite Support for MAG2600 (51-100 Users) #SVC-NDCE-MAG2600-M
List Price: $1,080.00
Our Price: $1,026.00
Juniper Care NextDay Support for MAG2600 (51-100 Users) #SVC-ND-MAG2600-M
List Price: $830.00
Our Price: $789.00
Juniper Care SameDay Onsite Support for MAG2600 (51-100 Users) #SVC-SDCE-MAG2600-M
List Price: $2,320.00
Our Price: $2,204.00
Juniper Care SameDay Support for MAG2600 (51-100 Users) #SVC-SD-MAG2600-M
List Price: $1,790.00
Our Price: $1,701.00
Juniper Care (100+ Users)
Juniper Care Core Support for MAG2600 (100+ Users) #SVC-COR-MAG2600-H
List Price: $1040.00
Our Price: $988.00
Juniper Care CorePlus Support for MAG2600 (100+ Users) #SVC-CP-MAG2600-H
List Price: $1,280.00
Our Price: $1,216.00
Juniper Care NextDay Onsite Support for MAG2600 (100+ Users) #SVC-NDCE-MAG2600-H
List Price: $1,820.00
Our Price: $1,729.00
Juniper Care NextDay Support for MAG2600 (100+ Users) #SVC-ND-MAG2600-H
List Price: $1,400.00
Our Price: $1,330.00
Juniper Care SameDay Onsite Support for MAG2600 (100+ Users) #SVC-SDCE-MAG2600-H
List Price: $3,910.00
Our Price: $3,715.00
Juniper Care SameDay Support for MAG2600 (100+ Users) #SVC-SD-MAG2600-H
List Price: $3,010.00
Our Price: $2,860.00
Juniper Networks Accessories
Accessories
Rack Kit for MAG2600, 1RU x 4 units #MAG-RK1U4
List Price: $450.00
Power
AC Power Brick for MAG2600 #MAG-PS260
List Price: $100.00
