Automate Provisioning for Virtual Machines


Overview:

Innovative virtualization and cloud computing technologies can have a profoundly positive impact on the way organizations of all sizes deliver IT services. Cloud-based services are dynamic and cater to fluctuating consumption. Provisioning and decommissioning services frequently demand an automated approach to management. Junos Space Virtual Director optimizes operational efficiency and reliability by providing a lifecycle management application that enables organizations to automate provisioning and resource allocation of virtual machines associated with Juniper’s virtual security services via a simplified and intuitive user interface.

Product Description

Increasingly, organizations are looking at leveraging virtual and cloud computing technologies to enhance competitive differentiation. But as computing shifts to the cloud, the network, compute, storage, and application layers are abstracted from the physical servers creating workloads that are dynamically transitioning within a shared pool of resources. Aiming to reduce time to market and the overall cost associated with introducing new services, organizations are seeking solutions that will automate the creation and management of virtualized services and the virtual machines (VMs) associated with them, providing the speed and agility they need.

Security for virtualized assets should be as agile as the assets it protects. Juniper virtual security solutions enable organizations to fully benefit from the cloud by providing secure connectivity with multilevel policies that protect agile workloads and dynamic changes in traffic and content. Juniper Networks Junos Space Virtual Director automates the instantiation of VMs for Juniper’s virtual security services, expediting service rollouts and reducing errors. Virtual Director offers VM lifecycle management, real-time information on the virtual network, a GUI that is intuitive and easy to navigate, and task-oriented workflows. An open set of REST APIs provide a single interface to all third-party orchestration tools for end-to-end configuration and management.

Architecture and Key Components:

Junos Space Virtual Director is a key component of the Juniper Networks Firefly security suite. Junos Space Virtual Director provides an elegant, comprehensive, and automated VM management solution that enables administrators to automate the provisioning and resource allocation of Juniper Networks Firefly Perimeter virtual firewall. Key elements of Junos Space Virtual Director include:

  • Automated lifecycle management of Firefly Perimeter VMs from provisioning to decommissioning
  • Automated identification and categorization of VM groups
  • Open REST APIs for integration with third-party management platforms
  • Intuitive, easy-to-navigate user interface with task-oriented workflows and pre-tested configurations

Features and Benefits:

  • Lower operational and capital expenditures with VM lifecycle management functions from provisioning to decommissioning that are integrated into a single application
  • Scaling elastically based on demand, with automatic identification and categorization to appropriate monitoring groups
  • Security from the get-go with default bootstrap settings for the management IP address and root password assigned to the VMs when they are created
  • Faster service rollouts with zero touch and bulk provisioning of VMs, leveraging predefined templates, automated tasks, and pre-validated configurations
  • Reduced human error with a task-oriented workflow and web-based intuitive GUI
  • Comprehensive view with automated discovery, display, and management of all Juniper VMs through integration with Junos Space and VMware vCenter
  • Access and integration with dynamic hybrid cloud environments with a rich set of APIs for third-party applications and management platforms
  • Consistent security policy management across the entire IT environment, with automatic registration of Firefly Perimeter instances with the Juniper Networks Junos Space Platform and Junos Space Security Director, the same tools used to manage physical firewalls

Full Lifecycle Management

Junos Space Virtual Director is an application running on top of Juniper’s well-established Junos Space network management platform.

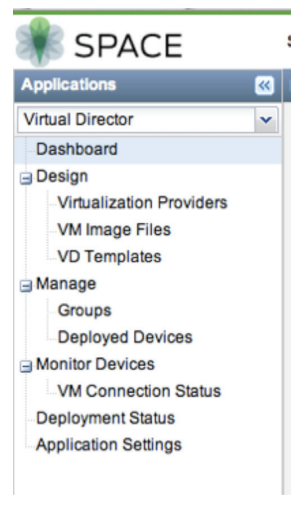

The Junos Space Virtual Director dashboard displays the system health of your network and provides a snapshot of the current status of objects managed and operations performed. As shown in Figure 1, the simple and intuitive user interface supports design, deployment, monitoring, grouping, and reporting of firewall VM instances. It can also be used to allocate resources and decommission VMs. VMware vCenter serves as a virtualization provider for Virtual Director.

Figure 1: Junos Space Virtual Director, a full lifecycle management application for virtual machines
Figure 1: Junos Space Virtual Director, a full lifecycle management application for virtual machines

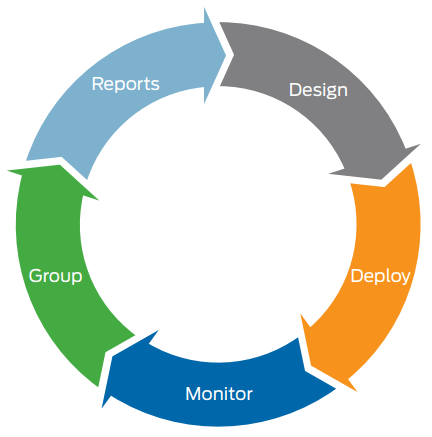

Each stage of the lifecycle is managed from Virtual Director as shown in Figure 2 and discussed in detail in the sections below

Figure 2: Junos Space Virtual Director management dashboard
Figure 2: Junos Space Virtual Director management dashboard

Design
Junos Space Virtual Director provides a single pane of glass to manage virtualized networks across multiple locations and multiple VMware vCenters. VMs can be created by selecting the desired image from the image library. Associating an image to a VM can be easily accomplished and the mapping can be applied to a single VM or a collection of VMs. Templates are provided to automate the configurations of VMs and reduce any human errors. Each template defines all the parameters a VM requires to execute an instance of Juniper’s virtual security service. Such parameters can be the number of CPUs, memory size, disk space, number of network interface cards (NICs), network address, etc. Figure 3 depicts choices of virtualization provider types.

Figure 3: Virtualization provider view
Figure 3: Virtualization provider view

Deploy
Built for the dynamic nature of cloud deployments, Junos Space Virtual Director provides organizations the ability to provision VMs in a matter of minutes. VMs can be deployed from a central location based on predefined configurations in the templates. These configurations can be fine-tuned to modify the password or IP address for customizing deployments. Junos Space Virtual Director is aware of the network and server configurations, offering an easy-to-use wizard with drop-down menus that guide the deployment and provide real-time information.

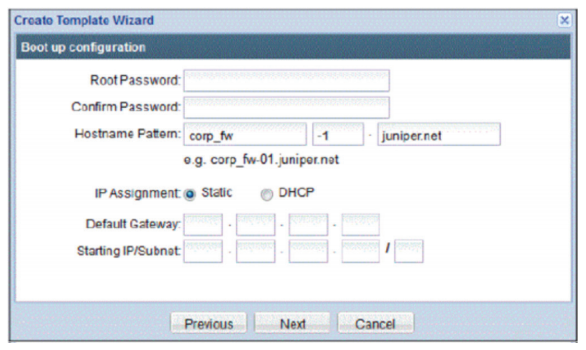

Virtual Director injects the settings into the newly instantiated VM so that it can be managed and automatically registered into the Junos Space Platform. Figure 4 shows the basic deployment options.

Figure 4: Deployment view
Figure 4: Deployment view

Monitor

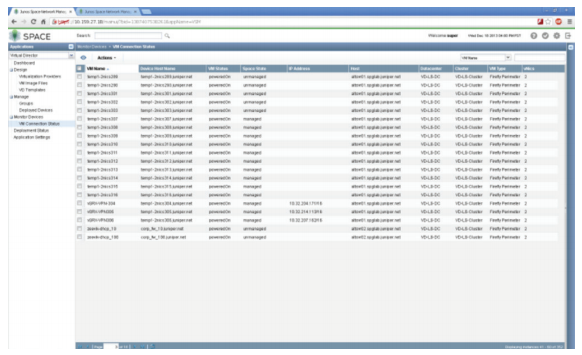

Once the virtual security instance is deployed within the virtual machine host provider, Virtual Director monitors and displays the characteristics of each instance such as VM deployment status, resource allocation, connection status, CPU and memory usage. This information is maintained in a database that can be sorted and filtered. The autodiscovery capabilities provide insight into Juniper’s security service VM inventory, regardless of whether or not VMs were provisioned via Junos Space Virtual Director. Figure 5 shows the status of VMs.

Figure 5: Monitor view
Figure 5: Monitor view

Group

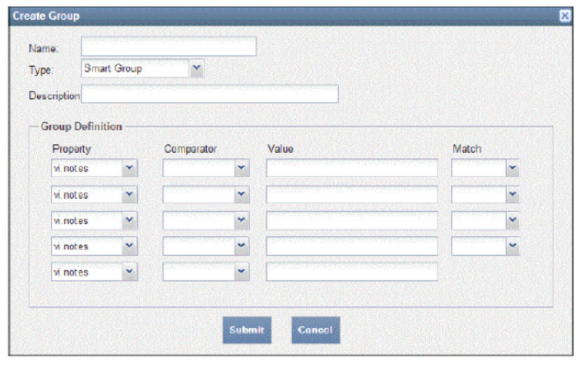

Monitoring groups of VMs rather than individual VMs significantly reduces administration overhead. Virtual Director supports two group types: static groups and smart groups. VMs can be assigned manually to static groups. Smart groups allow for dynamic association of VMs to groups by defining a set of rules based on content, network and custom attributes as shown in Figure 6. A VM that matches these rules automatically becomes a member of the smart group.

Figure 6: Task-oriented workflow, VM groups.
Figure 6: Task-oriented workflow, VM groups.

Report
Junos Space Virtual Director stores the historic deployment information in a database. Administrators can access this report to gain insight and use the status mode to receive e-mail alerts on deployment failures.

Managing Firefly Perimeter Security Policy via Security Director

Junos Space Security Director enables consistency in the creation, distribution, and management of security policies across the entire IT environment, both virtual and physical networks. This reach improves security policy consistency as networks scale. Administrators can use Junos Space Security Director for managing the security policy horizontally across multiple Juniper virtual and physical firewalls (Firefly Perimeter as well as Juniper Networks SRX Series Services Gateways).

As both applications run on the open Junos Space Network Management Platform, Junos Space Virtual Director with Junos Space Security Director provides security management building blocks with extensive security scale, policy control, and reach across the network.

Junos Space

Junos Space is Juniper’s comprehensive network management solution that simplifies and automates management of Juniper’s switching, routing, and security devices. The Junos Space Network Management Platform provides deep element management for extensive fault configuration, accounting, performance, and security management (FCAPS) capability, same day support for new devices and Junos releases, a taskspecific user interface, and northbound APIs to easily integrate into existing network management system (NMS) or operations and business support system (OSS/BSS) deployments.

Extending the breadth of the Junos Space Platform are multiple Junos Space management applications that optimize network management for various domains. With easy-to-use interfaces, these applications enable you to provision new services across thousands of devices, and they optimize work flow tasks for specific domains such as core, edge, data center, campus, security, mobile, and more.

Supported Virtualized Security Services

Juniper Networks Firefly Perimeter is a comprehensive virtual security product based on Juniper’s industry-proven Junos OSbased SRX Series Services Gateways code. It is delivered in a VM form factor and can be deployed on virtual servers and across software-defined networks (SDNs).

Firefly Perimeter offers virtual firewall with Junos OS Network Address Translation (NAT), routing, and VPN connectivity features—all in a flexible VM format, making it the perfect choice for protecting both the network and virtual assets.

By leveraging fast, highly available security and routing capabilities in a single virtual instance, enterprises and service providers alike can economically connect, secure, and manage workloads while delivering new value-added services, safe connectivity, and a satisfying end-user experience.

Integration APIs

Virtual Director REST APIs allow interoperability with a variety of systems and custom applications (billing systems, end-user portals, custom scripts, etc.). This flexibility allows the solution to be fully integrated into existing automation processes, which saves money and time.

Specifications:

Client Browser Support

Supports Internet Explorer version 8.0 or later; Mozilla Firefox version 20 or later; Google Chrome version 26 or later

VMware Version

  • Junos Space works with VMware vSphere 4.0 and above.
  • Virtual Director supports VMware vSphere 5.0 and 5.1.

Juniper Platforms

  • Virtual Director supports Firefly Perimeter running 12.1X46-D10 and above.
  • Virtual Director runs on Space server 13.1P1.14.
