48-port 10/100/1000BASE-T (48 PoE ports) + 930W AC PSU

Juniper Networks EX3200-48P Ethernet Switch

Juniper Networks Products
EX3200 Ethernet Switch
Juniper Networks EX3200 48-port 10/100/1000BaseT PoE + 930W AC PS Ethernet Switch #EX3200-48P
List Price: $7,000.00

More pricing below, click here

EX3200-48P Overview:

The EX3200 line of Ethernet switches offers a high-performance standalone solution for low-density access deployments in the wiring closets of remote offices and small LANs in large office buildings.

High-performance businesses demand high-performance networking solutions. The Juniper Networks EX3200 line of Ethernet switches offer a compact, high-performance solution for supporting today’s converged network access deployments.

The EX3200 line of fixed-configuration switches from Juniper Networks offer a high-performance standalone solution for access-layer deployments in branch and remote offices as well as campus networks.

Featuring complete Layer 2 and Layer 3 switching capabilities, the EX3200 satisfies the wiring closet connectivity requirements of today’s high-performance businesses. Four platform configurations are available offering 24 and 48 10/100/1000BASE-T ports with either full or partial Power over Ethernet (PoE). The base 24- and 48-port EX3200 switches deliver a full 15.4 watts of Class 3 PoE on the first eight ports for supporting networked devices such as telephones, video cameras and wireless LAN (WLAN) access points in converged networks. The EX3200 switches with full PoE deliver 15.4 watts on all 24 or 48 ports to support high-density IP telephony and other converged network environments.

The EX3200 also supports optional four-port Gigabit Ethernet (GbE) and two-port 10 GbE uplink modules with pluggable optics to provide high-speed connectivity to aggregation-layer switches or other upstream devices. A field-replaceable power supply and fan tray minimize mean time to repair (MTTR) for the EX3200, ensuring maximum availability.

Standalone Solution Offering Configuration Flexibility and Field Serviceability

  • Optional GbE and 10 GbE uplinks reduce capital costs for remote office deployments
  • Field-replaceable power supply and fan tray lower MTTR and increase serviceability
  • Single release train for Juniper Networks Junos® operating system ensures consistent control plane feature implementation
  • Modular Junos OS prevents a switch reboot if a single protocol feature fails
  • LCD panel provides a simplified interface for device bring-up, recovery and health checking without requiring a console
  • Single management interface
  • Limited lifetime switch hardware warranty

The EX3200 offers an integrated Routing Engine (RE) that runs the same modular Juniper Networks JUNOS Software as Juniper’s router products to ensure the consistent implementation and operation of each control plane feature across an entire Juniper Networks infrastructure.

Each EX3200 switch includes an integrated application-specific integrated circuit (ASIC)-based Packet Forwarding Engine, the EX-PFE, to consistently deliver wire-rate forwarding even with all control-plane features enabled. Based on existing field-proven Juniper Networks technology, the EX-PFE and RE bring the same level of carrier-class performance and reliability to the EX3200 line of Ethernet switches that Juniper Networks routers bring to the world’s largest service provider networks.

Architecture and Key Components

The EX3200 occupies a single rack unit and deliver a compact solution for crowded wiring closets and access locations where space and power are at a premium.

Each EX3200 switch supports optional front-panel uplink modules offering either four GbE ports or two 10 GbE ports with pluggable optics for high-speed backbone or link-aggregation connections between wiring closets and upstream aggregation switches. Uplink modules can be installed without powering down the switch, enabling users to add high-speed connectivity at any time or to migrate from GbE to 10 GbE uplinks, delivering the ultimate in flexible, high-performance interconnectivity.

The EX3200 also features a front-panel LCD display that offers a flexible interface for performing device bring-up and configuration rollbacks, for reporting switch alarm and LED status, or for restoring the switch to its default settings.

A dedicated rear-panel RJ-45 Ethernet port is available for out-of-band management, while a rear-panel USB port can be used to easily upload JUNOS Software and configuration files.

Juniper Networks EX3200-48P Ethernet Switch left angle

Features & Benefits:

High Availability Features

  • Field-replaceable power supplies: The EX3200 supports field-replaceable AC and DC power supplies, reducing MTTR. When deployed with an optional redundant power supply (RPS) unit*, the internal replaceable power supply on the EX3200 becomes hot-swappable.
  • Hot-swappable fan tray: The EX3200 includes a hot-swappable, field-replaceable fan tray, reducing MTTR.
  • Carrier-class hardware: The EX3200 leverages a purpose-built packet forwarding engine ASIC—the EX-PFE—which integrates much of the same intellectual property used in Juniper Networks carrier routers. As a result, the EX3200 delivers the same predictable, scalable functionality found in the world’s largest networks.
  • Redundant Trunk Group (RTG): To avoid the complexities of the Spanning Tree Protocol (STP) without sacrificing network resiliency, the EX3200 employs a redundant trunk group to provide the necessary port redundancy and simplify switch configuration.

Carrier-Class Operating System

The EX3200 runs the same JUNOS Software used by Juniper Networks routers to power the world’s largest and most complex networks.

By utilizing a common operating system, Juniper delivers a consistent implementation and operation of control-plane features across all products—functions ranging from chassis management to spanning tree to OSPF. To maintain that consistency, JUNOS adheres to a highly disciplined development process that utilizes a single source code, follows a single quarterly release train, and employs a highly available modular architecture that prevents isolated failures from bringing an entire system down.

These attributes are fundamental to the core value of the software, enabling all products powered by the JUNOS Software—routers and switches—to be updated simultaneously with the same software release. All features, new and old, are fully regression-tested, making each new release a true superset of the previous version. Customers can deploy a new JUNOS release with complete confidence that all existing capabilities will operate in the same way and be compatible on all Juniper Networks switches and routers in the network.

JUNOS Software - OS, Relase, and Architecture

JUNOS Software utilizes a single source code, adheres to a consistent and predictable release train, and employs a single modular architecture.

Converged Environments

The EX3200 provides the highest levels of availability in their class for the most demanding converged data, voice and video environments, delivering a reliable platform for unifying enterprise communications.

By providing a full 15.4 watts of Class 3 PoE to power voice over IP (VoIP) telephones, closed-circuit security cameras, wireless access points and other IP-enabled devices, the EX3200 delivers a future-proofed solution for converging disparate networks onto a single IP infrastructure. The base system, which offers eight PoE ports, lowers the cost and complexity of designing the access layer by supporting a small number of WLAN access points or IP phones rather than requiring the purchase of PoE on all 24 or 48 ports.

To ease deployment, the EX3200 supports the industry-standard Link Layer Discovery Protocol (LLDP) and LLDP-Media Endpoint Discovery (LLDP-MED) protocol, enabling the switches to automatically discover Ethernet-enabled devices, determine their power requirements, and assign virtual LAN (VLAN) membership.

In addition, the EX3200 supports rich quality of service (QoS) functionality for prioritizing data, voice and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain multi-level, end-to-end traffic prioritizations. The EX3200 also supports a wide range of policy options, including strict priority, low-latency, weighted random early drop (WRED) and shaped deficit weighted round-robin (SDWRR) queuing.

Security

The EX3200 fully integrates with the Juniper Networks Unified Access Control (UAC), which consolidates all aspects of a user’s identity, device and location. This enables administrators to enforce access control and security down to the individual port or user levels.

Working as an enforcement point within UAC, the EX3200 provides both standards-based 802.1X port-level access control for multiple devices per port, as well as Layer 2-4 policy enforcement based on user identity, location and/or device. A user’s identity, device type, machine posture check and location can be used to determine whether access should be granted and for how long. If access is granted, the switch assigns the user’s device to a specific VLAN based on authorization policy. The switch can also apply security and/or QoS policies, or it can mirror user traffic to a central location for logging, monitoring or threat detection by intrusion prevention systems.

The EX3200 also provides a full complement of integrated port security and threat detection features, including DHCP (Dynamic Host Configuration Protocol) snooping, DAI (Dynamic ARP Inspection) and MAC limiting to defend against internal and external spoofing, man-in-the-middle and denial-of-service (DoS) attacks.

Simplified Management and Operations

The EX3200 includes port profiles that allow network administrators to automatically configure ports with security, QoS and other parameters based on the type of device connected to the port. Six preconfigured profiles are available, including default, desktop, desktop plus IP phone, WLAN access point, routed uplink and Layer 2 uplink. Users can select from the existing profiles or create their own and apply them through the command line interface (CLI), J-Web interface or management system.

Four system management options are available for the EX3200 line of Ethernet switches. The standard JUNOS CLI management interface offers the same granular capabilities and scripting parameters found in any router powered by JUNOS. The EX3200 also includes the integrated J-Web management tool, an embedded Web-based device manager that allows users to configure, monitor, troubleshoot and perform system maintenance on individual switches via a browser-based graphical interface.

When managing a group of EX3200 line of Ethernet switches, the Juniper Networks Network and Security Manager (NSM) provides system-level management across all Juniper switches in the network from a single console.

Finally, the EX3200 configuration, fault, and performance data can be exported to leading third-party management systems such as HP OpenView, IBM Tivoli and Computer Associates Unicenter software, to provide a complete, consolidated view of network operations.

Network Deployments:

The EX3200 line of Ethernet switches provide a high-performance solution for converged networks in branch offices as well as campus wiring closets.

EX3200 Series Ethernet Switch Diagram

The EX3200 works with Juniper Networks UAC to enforce access control down to the individual port level.

EX3200 Series Ethernet Switch with UAC Diagram

Products Options:

Model: Access Port Configuration PoE Ports* Height POE Buget Power Supply Rating
EX3200-24T** 24-port 10/100/1000BASE-T 8 1RU 130 W 320 W AC
EX3200-24P 24-port 10/100/1000BASE-T 24 1RU 410 W 600 W AC
EX3200-48T** 48-port 10/100/1000BASE-T 8 1RU 130 W 320 W AC
EX3200-48P 48-port 10/100/1000BASE-T 48 1RU 740 W 930 W AC
EX3200-24T-DC** 24-port 10/100/1000BASE-T 0 1RU N/A 190 W DC
EX3200-48T-DC** 48-port 10/100/1000BASE-T 0 1RU N/A 190 W DC

* All PoE ports 802.3af-compliant @ 15.4 W
** NEBS certified

Model Power Supply Rating Acoustic Noise in dBA
EX3200-24T 320 W AC 53.2
EX3200-24P 600 W AC 55.6
EX3200-48T 320 W AC 53.4
EX3200-48P 930 W AC 55.0
EX3200-24T-DC 190 W DC 47.8
EX3200-48T-DC 190 W DC 47.0



Technical Specifications:

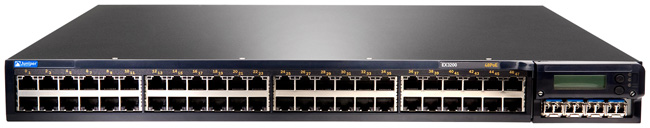

EX3200-48P Ethernet Switch Front View
Front View

EX3200-48P Ethernet Switch Rear View
Rear View

Model: EX3200-48P
  EX3200-48P
Physical Specifications
Form Factor Fixed platform
Uplink module options
  • 4-port GbE module with pluggable SFP optics
  • 2-port 10 GbE module with pluggable XFP optics
  • Dual-mode 2-port 10 GbE SFP+ / 4-port GbE SFP module with pluggable SFP+/SFP optics
Dimensions (W x H x D) 17.41 x 1.72 x 18.8 in (44.21 x 4.32 x 47.8 cm)
Weight 16.8 lb (7.6 kg)
Rack mountable 1 Rack Unit
Hardware Specifications
Switching Engine Model Store and forward
DRAM 512 MB
Flash 1 GB
CPU 600 MHz PowerPC CPU
GbE port density per system 48 (48 host ports or 44 host ports + four-port GbE uplink module)
10 GbE port density per system 2 (XFP or SFP+ uplink module)
Packet Switching Capacities 136 Gbps
Throughput 101 Mpps (wire speed)
10/100/1000BASE-T Port Densities 48 per platform
100BASE-FX / 1000BASE-X (SFP) Port Densities 4 per switch (via optional four-port GbE uplink module)
10GBASE-X Port Densities 2 per switch (via optional two-port 10GbE uplink module)
Resiliency External redundant power supply; internal field-replaceable power supply; field-replaceable fan
Operating System JUNOS
QoS Queues / Port 8
MAC Addresses 24,000
Jumbo Frames 9216 Bytes
IPv4 Unicast / Multicast Routes 12,000 / 2,000
Number of VLANs 4,096
ARP Entries 16,000
Power Options
Power Supplies
  • AC power supplies: Autosensing 100-120 V / 200-240 V; AC 930 W
  • Field replaceable
Environment
Operating Temperature 32° to 113° F (0º to 45º C)
Storage Temperature -40º to 158º F (-40º to 70º C)
Relative Humidity (Operating) 10% to 85% (noncondensing)
Relative Humidity (Non-Operating) 0% to 95% (noncondensing)
Altitude (Operating) Up to 10,000 ft (3,048 m)
Altitude (Non-Operating) Up to 16,000 ft (4,877 m)
Cooling
  • Field-replaceable fan tray
  • Airflow: 23.5 cfm
Noise Specifications
Power Supply Rating 930 W AC
Acoustic Noise in DBA 55.0
Safety and Compliance
Safety Certifications
  • UL-UL60950-1(First Edition)
  • C-UL to CAN/CSA 22.2 No.60950-1(First Edition)
  • TUV/GS to EN 60950-1, Amendment A1-A4, A11
  • CB-IEC60950-1, all country deviations
Electromagnetic Compatibility Certifications
  • FCC 47CFR Part 15 Class A
  • EN 55022 Class A
  • ICES-003 Class A
  • VCCI Class A
  • AS/NZS CISPR 22 Class A
  • CISPR 22 Class A
  • EN 55024
  • EN 300386
  • CE
NEBS
  • GR-63-Core: NEBS, Physical Protection
  • GR-1089-Core: EMC and Electrical Safety for Network Telecommunications Equipment
  • All models except EX3200-24P and EX3200-48P
Environmental Reduction of Hazardous Substances (ROHS) 5
Telco CLEI code
Joint Interoperability Test Command (JITC) Department of Defense (DoD) Unified Capabilities (UC) Approved Products List (APL)
Common Criteria CC-EAL3
Metro Ethernet Forum MEF 9
Telecom Quality Management TL9000
Trusted Network Connect TNC IF-PEP


Additional Feature Specifications:

Optics
  • 100 Mbps optic/connector type: LC SFP fiber supporting 100BASE-FX SFP (multimode), LX (single-mode) and BX (single-strand)
  • 10/100/1000BASE-T connector type: RJ-45
  • GbE SFP optic/connector type: RJ-45 or LC SFP fiber supporting 1000BASE-T SFP, SX (multimode), LX (single-mode) or LH/ZX (single-mode)
  • 10 GbE XFP optic/connector type: 10GE XFP LC connector, SR (multimode), LR (single-mode), ER (single-mode) or ZR (single-mode)
  • 10 GbE SFP+ optic/connector type: 10GE SFP+ LC connector, SR (multimode), USR (multimode), LR (single-mode), ER (singlemode), LRM (multimode) and DAC (direct-attach copper)

Physical Layer

  • Physical port redundancy: Redundant trunk group (RTG)
  • Time Domain Reflectometry (TDR) for detecting cable breaks and shorts
  • Auto MDI/MDIX support
  • Port speed downshift/setting max advertised speed on 10/100/1000BASE-T ports

Layer 2 Switching

  • Max MAC addresses per system: 24,000
  • Static MAC entries: 24,000
  • Jumbo frames: 9216 Bytes
  • Number of VLANs: 4,096
  • Port-based VLAN
  • MAC-based VLAN
  • GVRP
  • Voice VLAN
  • Compatible with PVST+
  • RVI (Routed VLAN Interface)
  • IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
  • LLDP-MED with VoIP integration
  • IEEE 802.1D: Spanning Tree Protocol
  • IEEE 802.1p: CoS prioritization
  • IEEE 802.1Q: VLAN tagging
  • IEEE 802.1s: Multiple instances of Spanning Tree Protocol (MSTP)
  • Number of MST instances supported: 64
  • IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol
  • IEEE 802.1X: Port Access Control
  • IEEE 802.3: 10BASE-T
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab: 1000BASE-T
  • IEEE 802.3z: 1000BASE-X
  • IEEE 802.3ae: 10 Gigabit Ethernet
  • IEEE 802.3af: Power Over Ethernet
  • IEEE 802.3x: Pause Frames/Flow Control
  • IEEE 802.3ad: Link Aggregation Control Protocol
  • IEEE 802.3ah: Ethernet in the First Mile

Layer 3 Features: IPv4

  • Max number of ARP entries: 16,000
  • Max number of IPv4 unicast routes in hardware: 10,000
  • Max number of IPv4 multicast routes in hardware: 2,000
  • Routing protocols: RIPv1/v2, OSPF, BGP, IS-IS
  • Static routing
  • Routing policy
  • Bidirectional Forwarding Detection
  • Layer 3 redundancy: VRRP

Layer 3 Features: IPv6 Management Functionality

  • Max number of Neighbor Discovery (ND) entries: 16,000 (shared with IPv4)
  • Max number of IPv6 unicast routes in hardware: 1,000
  • Routing protocols: RIPng, OSPFv3
  • Static routing

MPLS

  • Circuit Cross Connect (CCC)

Supported RFCs

  • RFC 3176 sFlow
  • RFC 2925 MIB for Remote Ping, Trace
  • RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
  • RFC 2461 Neighbor Discovery for IP Version 6 (IPv6)
  • RFC 2462 IPv6 Stateless Address Autoconfiguration
  • RFC 2463 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification
  • RFC 2464 Transmission of IPv6 Packets over Ethernet Networks
  • RFC 2526 Reserved IPv6 Subnet Anycast Addresses
  • RFC 2283 Multiprotocol Extensions for BGP-4
  • RFC 2545 Use of BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing
  • RFC 2740 OSPF for IPv6
  • RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers
  • RFC 2080 RIPng for IPv6
  • RFC 3484 Default Address Selection for Internet Protocol Version 6 (IPv6)
  • RFC 3513 Internet Protocol Version 6 (IPv6) Addressing Architecture
  • Internet draft-ietf-isis-ipv6-06.txt, Routing IPv6 with IS-IS
  • RFC 1122 Host Requirements
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 783 TFTP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 894 IP over Ethernet
  • RFC 903 RARP
  • RFC 906 TFTP Bootstrap
  • RFC 1027 Proxy ARP
  • RFC 2068 HTTP server
  • RFC 1812 Requirements for IP Version 4 Routers
  • RFC 1519 CIDR
  • RFC 1256 IPv4 ICMP Router Discovery (IRDP)
  • RFC 1058 RIP v1
  • RFC 2453 RIP v2
  • RFC 1112 IGMP v1
  • RFC 4916 MT-OSPF
  • RFC 2236 IGMP v2
  • RFC 3376 IGMP v3
  • RFC 1492 TACACS+
  • RFC 2138 RADIUS Authentication
  • RFC 2139 RADIUS Accounting
  • RFC 3579 RADIUS EAP support for 802.1x
  • RFC 5176 Dynamic Authorization Extensions to RADIUS
  • RFC 2267 Network Ingress FilteringRFC 2030 SNTP, Simple Network Time Protocol
  • RFC 854 Telnet client and server
  • RFC 951, 1542 BootP
  • RFC 2131 BOOTP/DHCP relay agent and DHCP server
  • RFC 1591 DNS
  • RFC 2338 VRRP
  • RFC 2328 OSPF v2 (Edge-mode)
  • RFC 1587 OSPF NSSA Option
  • RFC 2154 OSPF w/Digital Signatures (Password, MD-5)
  • RFC 2370 OSPF Opaque LSA Option
  • RFC 3623 OSPF Graceful Restart
  • RFC 2362 PIM-SM (Edge-mode)
  • RFC 3569 draft-ietf-ssm-arch-06.txt PIM-SSM PIM Source Specific Multicast
  • RFC 1771 Border Gateway Protocol 4
  • RFC 1965 Autonomous System Confederations for BGP
  • RFC 2796 BGP Route Reflection (supersedes RFC 1966)
  • RFC 1997 BGP Communities Attribute
  • RFC 1745 BGP4/IDRP for IP-OSPF Interaction
  • RFC 2385 TCP MD5 Authentication for BGPv4
  • RFC 2439 BGP Route Flap Damping
  • RFC 2918 Route Refresh Capability for BGP-4
  • RFC 3392 Capabilities Advertisement with BGP-4
  • RFC 2796 Route Reflection
  • RFC 4360 BGP Extended Communities Attribute
  • RFC 4486 Subcodes for BGP Cease Notification message
  • RFC 1195 Use of OSI IS-IS for Routing in TCP/IP and Dual Environments (TCP/IP transport only)
  • RFC 2474 DiffServ Precedence, including 8 queues/port
  • RFC 2598 DiffServ Expedited Forwarding (EF)
  • RFC 2597 DiffServ Assured Forwarding (AF)
  • RFC 2475 DiffServ Core and Edge Router Functions
  • LLDP Media Endpoint Discovery (LLDP-MED), ANSI/TIA-1057, draft 08
  • Draft-ietf-idr-restart-10.txt Graceful Restart Mechanism for BGP
  • Draft-ietf-isis-restart-02 Restart Signaling for IS-IS
  • PIM-DM Draft IETF PIM Dense Mode draft-ietf-idmr-pim-dm-05.txt, draft-ietf-pim-dm-new-v2-04.txt
  • Draft-ietf-isis-wg-multi-topology-11 Multi Topology (MT) Routing in IS-IS
  • Draft-ietf-bfd-base-05.txt Bidirectional Forwarding Detection
 Security
  • MAC limiting
  • Allowed MAC addresses – configurable per port
  • Dynamic ARP inspection (DAI)
  • Local proxy ARP
  • Static ARP support
  • DHCP snooping

Access Control Lists (ACLs) (JUNOS Software firewall filters)

  • Port-based ACL (PACL) – Ingress
  • VLAN-based ACL (VACL) – Ingress and Egress
  • Router-based ACL (RACL) – Ingress and Egress
  • ACL entries (ACE) in hardware per system: 7,000
  • ACL counter for denied packets
  • ACL counter for permitted packets
  • Ability to add/remove/change ACL entries in middle of list (ACL editing)
  • Layer 2 – L4 ACL
  • 802.1X port-based
  • 802.1X multiple supplicants
  • 802.1X with VLAN assignment
  • 802.1X with authentication bypass access (based on host MAC address)
  • 802.1X with VoIP VLAN support
  • 802.1X dynamic ACL based on RADIUS attributes
  • 802.1X Supported EAP types: MD5, TLS, TTLS, PEAP
  • MAC Authentication (local)
  • Control Plane DoS protection

High Availability

  • Field-replaceable power supply
  • External redundant power supply (RPS) option*
  • Field-replaceable fan
  • Graceful protocol restart—OSPF, BGP
  • Online insertion and removal (OIR) uplink module
Quality of Service (QoS)
  • Layer 2 QoS
  • Layer 3 QoS
  • Ingress policing: 1 rate 2 color
  • Hardware queues per port: 8
  • Scheduling methods (egress): Strict priority (SP), Shaped Deficit Weighted Round-Robin (SDWRR)
  • 802.1p, DSCP /IP Precedence trust and marking
  • L2-L4 Classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN, IP address, DSCP/IP Precedence, TCP/UDP port numbers, etc.
  • Congestion avoidance capabilities: Tail Drop

Multicast

  • IGMP: v1, v2, v3
  • IGMP snooping
  • PIM-SM
  • IPv4 Multicast hardware entries: 2,000

Services and Manageability

  • JUNOS CLI
  • Web interface
  • Out-of-band management: Serial; 10/100/1000BASE-T Ethernet
  • ASCII configuration
  • Rescue configuration
  • Configuration rollback
  • Image rollback
  • LCD management
  • Element management tools: Network and Security Manager (NSM)
  • Proactive services support via Advanced Insight Solutions (AIS)
  • SNMP: v1, v2c, v3
  • RMON (RFC 2819) Groups 1, 2, 3, 9
  • NTP
  • DHCP server
  • DHCP client and DHCP proxy
  • DHCP relay and helper
  • RADIUS
  • TACACS+
  • SSHv2
  • Secure copy
  • HTTP/HTTPs
  • DNS resolver
  • Syslog logging
  • Temperature sensor
  • Config-backup via FTP / secure copy

Supported MIBs

  • RFC 1155 SMI
  • RFC 1157 SNMPv1
  • RFC 1905 RFC 1907 SNMP v2c, SMIv2 and Revised MIB-II
  • RFC 2570 – 2575 SNMPv3, user based security, encryption and authentication
  • RFC 2576 Coexistence between SNMP Version 1, Version 2 and Version
  • RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB & TRAPs
  • RFC 2578 SNMP Structure of Management Information MIB
  • RFC 2579 SNMP Textual Conventions for SMIv2
  • RFC 2925 Ping/Traceroute MIB
  • RFC 2665 Ethernet-like interface MIB
  • RFC 1643 Ethernet MIB
  • RFC 1493 Bridge MIB
  • RFC 2096 IPv4 Forwarding Table MIB
  • RFC 2011 SNMPv2 for internet protocol using SMIv2
  • RFC 2012 SNMPv2 for transmission control protocol using SMIv2
  • RFC 2013 SNMPv2 for user datagram protocol suing SMIv2
  • RFC 2863 Interface MIB
  • RFC 3413 SNMP Application MIB
  • RFC 3414 User-based Security model for SNMPv3
  • RFC 3415 View-based Access Control Model for SNMP
  • RFC 3621 PoE-MIB (PoE switches only)
  • RFC 1724 RIPv2 MIB
  • RFC 2863 Interface Group MIB
  • RFC 2932 IPv4 Multicast MIB
  • RFC 2787 VRRP MIB
  • RFC 1850 OSPFv2 MIB
  • RFC 1657 BGP-4 MIB
  • RFC 2819 RMON MIB
  • RFC 2287 System Application Packages MIB
  • RFC 4188 STP & Extensions MIB
  • RFC 4363 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and VLAN extensions
  • RFC 2922 LLDP MIB
  • Draft-ietf-idr-bgp4-mibv2-02.txt – Enhanced BGP-4 MIB
  • Draft-ietf-isis-wg-mib-07
  • Draft – blumenthal – aes – usm - 08
  • Draft – reeder - snmpv3 – usm - 3desede -00
  • Draft-ietf-idmr-igmp-mib-13
  • Draft-ietf-idmr-pim-mib-09
  • Draft-ietf-bfd-mib-02.txt

Troubleshooting

  • Debugging: CLI via console, Telnet or SSH
  • Diagnostics: Show and debug cmd, statistics
  • Traffic mirroring (port)
  • Traffic mirroring (VLAN)
  • ACL-based mirroring
  • Mirroring destination ports per system: 1
  • LAG port monitoring
  • Multiple destination ports monitored to 1 mirror (N:1)
  • Max number of mirroring sessions: 1
  • Mirroring to remote destination (over L2): 1 destination VLAN
  • IP tools: Extended ping & trace
  • Juniper Networks commit and rollback

* Planned for future release

EX Series Comparison Matrix:

Model: EX2200 Series EX2500 Series EX3200 Series
Form Factor Fixed platform Fixed platform Fixed platform
Dimensions
(W x H x D)		 • 17.4 x 1.7 x 10 in (44.1 x 4.3 x 25.4 cm)
• 1 rack unit		 • 17.3 x 1.7 x 15 in (43.9 x 4.3 x 38.1 cm) • 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm)
• 1 rack unit
Backplane Speed N/A N/A N/A
Data Rate • EX2200-24P/24T: 56 Gbps
• EX2200-48P/48T: 104 Gbps		 480 Gbps • EX3200-24P/24T: 88 Gbps
• EX3200-48P/48T: 136 Gbps
Throughput • EX2200-24P/24T: 42 Mpps (wire speed)
• EX2200-48P/48T: 77 Mpps (wire speed)		 357 Mpps (wire speed) • EX3200-24P/24T: 65 Mpps (wire speed)
• EX3200-48P/48T: 101 Mpps (wire speed)
10/100/ 1000BASE-T Port Densities 24 / 48 per platform 24 (dual-mode 1/10GbE network ports) 24 / 48 per platform
100BASE-FX / 1000BASE-X (SFP) Port Densities 4 per switch (fixed ports, SFP required) N/A 4 per switch (via optional four-port GbE uplink module)
10GBASE-X Port Densities N/A 24 2 per switch (via optional two-port 10GbE uplink module)
Resiliency Integral power supply and fans Dual load-sharing internal autosensing AC power supplies External redundant power supply; internal field-replaceable power supply; field-replaceable fan
Power Options • 24T and 48T (non-PoE): Autosensing; 100-120 V / 200-240 V; AC 100 W
• 24P and 48P (osensing; 100-120 V / 200-240 V; AC 550		 Autosensing; 110/220 VAC; 60/50 Hz • AC: 320W, 600W and 930W autosensing; 100-120V / 200-240V
• DC: 190W; input voltage range 36V-72V; dual input feed
Operating System Junos EX2500-SW Junos
Traffic Monitoring sFlow (roadmap) N/A sFlow
QoS Queues / Port 8 8 8
MAC Addresses 12,000 16,000 24,000
Jumbo Frames 9216 Bytes 9216 Bytes 9216 Bytes
IPv4 Unicast / Multicast Routes 6,500 / 0 N/A 12,000 / 2,000
Number of VLANs 1,024 • VLAN IDs: 1024
• VLAN Range: 4096		 4,096
ARP Entries 2,000 N/A 16,000
ARP Entries Limited lifetime switch hardware warranty Standard one-year warranty Limited lifetime switch hardware warranty
Model: EX4200 Series EX4500 Series EX8200 Series
Form Factor • Fixed platform (single switch)
• Virtual Chassis configuration consisting of 10 switches		 Fixed platform • EX8208: Eight-slot modular chassis
• EX8216: 16-slot modular chassis
Dimensions
(W x H x D)		 • 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm)
• 1 rack unit (single switch)		 • 17.3 in x 3.5 in x 21.1 in (43.8 cm x 8.9 cm x 53.6 cm)
• 2 rack units 		• EX8208: 17.25 x 24.25 x 21 in (43.82 x 61.6 x 53 cm)
14 rack units
• EX8216: 17.3 x 36.5 x 26.5 in (43.9 x 92.7 x 67.4 cm)
21 rack units
Backplane Speed 128 Gbps (Virtual Chassis) 128 Gbps (Virtual Chassis) • 320 Gbps (full duplex) per line card
• 6.2 Tbps (EX8208) or 12.4 Tbps (EX8216) per chassis
Data Rate • EX4200-24P/24T/24F: 88 Gbps
• EX4200-48P/48T: 136 d> 		960 Gbps (full duplex) • EX8200-48T: 96 Gbps
• EX8200-48F: 96 Gbps
• EX8200-8XS: 160 Gbps
Throughput • EX4200-24P/24T/24F: 65 Mpps (wire speed)
• EX4200-48P/48T: 101 Mpps (wire speed)		 714 Mpps • 120 Mpps per line card (wire speed)
• 960 Mpps (EX8208) or 1.92 Bpps (EX8216) per system
10/100/ 1000BASE-T Port Densities • 24 / 48 per platform
• Up to 480 in Virtual Chassis configuration		 40 1000BASE-T ports in base unit (48 total with optional uplink modules) via copper SFP optics • 48 per EX8200-48F line card
• 384 (EX8208) or 768 (EX8216) per chassis
100BASE-FX / 1000BASE-X (SFP) Port Densities • 24 per switch; 28 with optional four-port GbE uplink module
• Up to 280 in Virtual Chassis configuration		 40 1000BASE-X SFP ports in base unit; 48 total with optional uplink modules • 48 per EX8200-48F line card
• 384 (EX8208) or 768 (EX8216) per chassis
10GBASE-X Port Densities • 2 per switch (via optional two-port 10GbE uplink module)
• Up to 20 in Virtual Chassis configuration		 40 in base unit; 48 total with optional uplink modules Line Rate:
• 8 per EX8200-8XS line card
• 64 (EX8208) or 128 (EX8216) per chassis Oversubscribed:
• 40 per EX8200-40XS line card
• 320 (EX8208) or 640 (EX8216) per chassis
Resiliency Internal, hot-swappable redundant power supply; field-replaceable fan tray with three fans; graceful Route Engine switchover (GRES) in Virtual Chassis configuration Dual internal load sharing AC power supplies; redundant variable-speed fans 6 power supply bays for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and Switch Fabrics; GRES
Power Options • AC: 320W, 600W and 930W autosensing; 100-120V / 200-240V; dual load-sharing hot-swappable internal redundant power supplies
• DC: 190W: input voltage range 36V-72V; dual input feed, dual load-sharing hot-swappable internal redundant power supplies		 Autosensing; 110/220 VAC; 60/50 Hz • AC: 1200W and 2000W autosensing; 100-120V / 200-240V (up to 6000W or 10,000W per chassis)
• AC: 3000W 200-240V (up to 15,000W per chassis)
Operating System Junos Junos Junos
Traffic Monitoring sFlow (roadmap) sFlow (roadmap) sFlow
QoS Queues / Port 8 8 8
MAC Addresses 24,000 24,000 160,000
Jumbo Frames 9216 Bytes 9216 Bytes 9216 Bytes
IPv4 Unicast / Multicast Routes 12,000 / 2,000 10,000 / 4,000 512,000 / 128,000
Number of VLANs 4,096 4,096 4,096
ARP Entries 16,000 8,000 100,000
ARP Entries Limited lifetime switch hardware warranty Standard one-year warranty Standard one-year warranty



Documentation:

PDF File
Download the Juniper Networks EX3200 Ethernet Switches Datasheet (PDF).



Juniper Networks Products
EX3200 Ethernet Switch
Juniper Networks EX3200 48-port 10/100/1000BaseT PoE + 930W AC PS Ethernet Switch #EX3200-48P
List Price: $7,000.00
Juniper Networks Accessories
Spares
EX3200 removable fan-tray with 1 blower (Spare) #EX3200-FANTRAY
List Price: $250.00
Adjustable 4-post Rack Mount Kit for EX3200 and EX4200 #EX-4PST-RMK
List Price: $450.00
Adjustable Rack Mount Kit for EX 3200 and EX 4200 #EX-RMK
List Price: $100.00
EX4200 and EX3200 blank faceplate for Uplink Module slot (Spare) #EX-UM-BLNK
List Price: $50.00
EX4200 and EX3200 wall mount kit #EX-WMK
List Price: $200.00
Power Supplies
EX4200 and EX3200 930W AC Power Supply
(power cord needs to be ordered separately)		 #EX-PWR-930-AC
List Price: $1,500.00
Uplink Modules
EX4200 and EX3200 2-Port 10G SFP+ / 4-port 1G SFP Uplink Module #EX-UM-2X4SFP
List Price: $2,000.00
EX4200 and EX3200 2-Port 10G XFP Uplink Module
(optics sold separately)		 #EX-UM-2XFP
List Price: $2,000.00
EX4200 and EX3200 4-Port 1G SFP Uplink Module
(optics sold separately)		 #EX-UM-4SFP
List Price: $500.00
Licenses
Advanced Feature License for EX 3200-24T/P and EX 4200-24T/P/F SKUs #EX-24-AFL
List Price: $4,000.00
Optics
Small Form Factor Pluggable 10 Gigabit Ethernet LR Optics #EX-SFP-10GE-LR
List Price: $4,000.00
Small Form Factor Pluggable 10 Gigabit Ethernet LRM Optics #EX-SFP-10GE-LRM
List Price: $1,750.00
Small Form Factor Pluggable 10 Gigabit Ethernet SR Optics #EX-SFP-10GE-SR
List Price: $1,500.00
Small Form Factor Pluggable 100Base-FX Fast Ethernet Optics #EX-SFP-1FE-FX
List Price: $250.00
Small Form Factor Pluggable 100base-LX Optics, 1310nm for 10km SMF transmission #EX-SFP-1FE-LX
List Price: $700.00
Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optics #EX-SFP-1GE-LH
List Price: $6,000.00
Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics #EX-SFP-1GE-LX
List Price: $1,000.00
SFP 1000Base-LX Gigabit Ethernet Optics, 1310nm for 40 km transmission on SMF #EX-SFP-1GE-LX40K
List Price: $2,500.00
Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optics #EX-SFP-1GE-SX
List Price: $500.00
Small Form Factor Pluggable 10/100/1000 Copper Transceiver Module #EX-SFP-1GE-T
List Price: $400.00
SFP 100Base-BX Fast Ethernet Optics, Tx 1310nm/Rx 1550nm for 20km transmission #EX-SFP-FE20KT13R15
List Price: $550.00
SFP 100Base-BX Fast Ethernet Optics, Tx 1550nm/Rx 1310nm for 20km transmission #EX-SFP-FE20KT15R13
List Price: $550.00
SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1490nm for 10km transmission #EX-SFP-GE10KT13R14
List Price: $1,800.00
SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1490nm/Rx 1310nm for 10km transmission #EX-SFP-GE10KT14R13
List Price: $2,100.00
XFP 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km transmission #EX-XFP-10GE-ER
List Price: $10,000.00
XFP 10GBase-LR 10 Gigabit Ethernet Optics Module, 1310nm for 10Km transmission #EX-XFP-10GE-LR
List Price: $4,800.00
XFP 10GBase-SR 10 Gigabit Ethernet Optics Module. 850nm for 300M transmission #EX-XFP-10GE-SR
List Price: $2,000.00
XFP 10GBase-ZR 10 Gigabit Ethernet Optics Module, 1550nm for 80KM transmission #EX-XFP-10GE-ZR
List Price: $14,000.00
Power Cables
Power cable #CBL-EX-PWR-C13-US
List Price: $50.00
