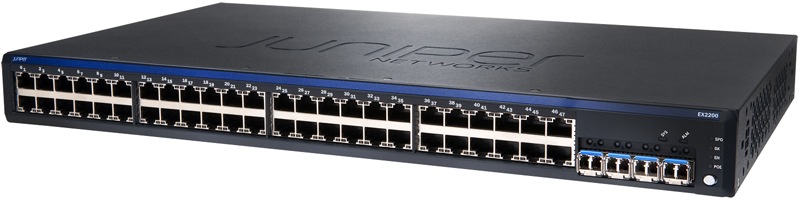

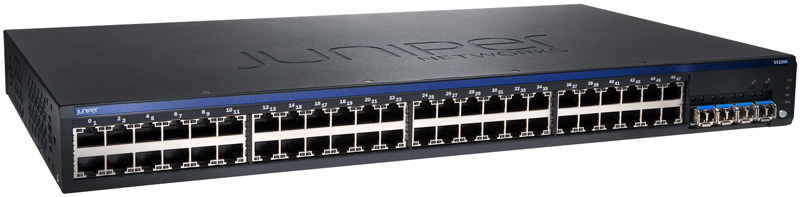

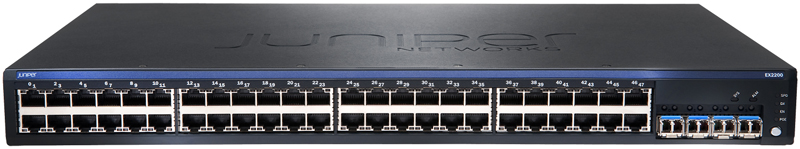

Juniper Networks EX2200-48T-4G Ethernet Switch

EX2200-48T-4G Overview:

The Juniper Networks EX2200 Line of fixed-configuration Ethernet switches offers an economical solution for access-layer deployments in enterprise branch offices and campus networks.

Featuring Layer and Layer 3 switching capabilities, the Juniper Networks EX2200 Ethernet Switches satisfy the access connectivity requirements of today's high-performance business. Four platform configurations are available offering 24 and 48 10/100/1000BASE-T ports, with and without Power over Ethernet (PoE). The 24- and 48-port PoE EX2200 switches support 802.3af standards-based PoE on every port supporting networked devices such as telephones, video cameras, and wireless LAN (WLAN) access points in converged networks.

Additional features include:

Four front-panel small form-factor pluggable transceiver (SFP) Gigabit Ethernet uplink ports with pluggable optics provide high-speed connectivity to aggregation layer switches or other upstream devices.
Fixed, low-consumption power supply and fans ensure operational simplicity.
Integrates with Juniper Networks Unified Access Control (UAC) to provide per-user access control and policing.
Support for Layer 2 protocols as well as RIP and static routing in base license.
Optional enhanced license for supporting OSPF and PIM.
Single release train for Juniper Networks JUNOS Software ensures consistent control plane feature implementation.
Modular JUNOS Software prevents a switch reboot if a single protocol feature fails.
Managed through a single application, Juniper Networks Network and Security Manager (NSM)

Features & Benefits:

Features	Benefits
Carrier-class reliability	EX Series switches leverage the same field-proven Juniper technology - including high-performance ASICs, a carrier-class system architecture, and JUNOS Software -- that powers the world's largest service provider networks.
Security risk management	EX Series switches tightly integrate with Juniper's Unified Access Control (UAC) solution, dynamically delivering network protection, guest access and identity-based QoS based on user, device, and location.
Performance	Each of the EX Series switches deliver wire-speed performance on all ports for any packet size.
Application control	The EX Series switches support eight QoS queues per port, ensuring proper prioritization of control plane, voice, video, and multiple levels of data traffic—with room to converge other networks, such as building automation and video security systems.
Lower total cost of ownership	The innovations of the EX Series switches enable new architectures that reduce cost and complexity. Unified management and automation tools consolidate system monitoring and maintenance and save time and money.

Diagram:

EX200 Ethernet Switch enterprise deployment scenarios.

JUNOS Software Operating System:

The EX2200 runs the same JUNOS Software used by all Juniper Networks EX Series Ethernet Switches, as well as all Juniper Networks routers and Juniper Networks SRX Series Services Gateways. By utilizing a common operating system, Juniper Networks delivers a consistent implementation and operation of control-plane features across all products. To maintain that consistency, JUNOS Software adheres to a highly disciplined development process that uses a single source code, follows a single quarterly release train, and employs a highly available modular architecture that prevents isolated failures from bringing an entire system down.

These attributes are fundamental to the core value of the software, enabling all JUNOS-powered products to be updated simultaneously with the same software release. All features are fully regression-tested, making each new release a true superset of the previous version; customers can deploy the software with complete confidence that all existing capabilities with be maintained and operate in the same way.

Technical Specifications:

Model:	EX2200 48P/48T
Model:
Physical Specifications
Form Factor	Fixed platform
Dimensions (W x H x D)	(W x H x D) 17.4 x 1.7 x 10 in (44.1 x 4.3 x 25.4 cm)
Rack mountable	1 Rack Unit
Hardware Specifications
Data Rate	104 Gbps
Throughput	77 Mpps (wire speed)
10/100/1000BASE-T Port Densities	48 per platform
100BASE-FX / 1000BASE-X (SFP) Port Densities	4 per switch (fixed ports, SFP required)
Resiliency	Integral power supply and fans
Operating System	JUNOS
QoS Queues / Port	8
Jumbo Frames	9216 Bytes
Power
Power Supply Options	Non-PoE SKUs: Autosensing; 100-120 V / 200-240 V; AC 100 W PoE SKUs: Autosensing; 100-120 V / 200-240 V; AC 550 W
Environment
Operating Temperature	32° to 113° F (0º to 45º C)
Storage Temperature	-40º to 158º F (-40º to 70º C)
Relative Humidity (Operating)	10% to 85% (noncondensing)
Relative Humidity (Non-Operating)	0% to 95% (noncondensing)
Altitude (Operating)	Up to 10,000 ft (3,049 m)
Altitude (Non-Operating)	Up to 16,000 ft (4,877 m)

EX Series Comparison Matrix:

Model:	EX2200 Series	EX2500 Series	EX3200 Series	EX4200 Series	EX8200 Series
Form Factor	Fixed platform	Fixed platform	Fixed platform	• Fixed platform (single switch) • Virtual Chassis configuration consisting of 10 switches	• EX8208: Eight-slot modular chassis • EX8216: 16-slot modular chassis
Dimensions (W x H x D)	• 17.4 x 1.7 x 10 in (44.1 x 4.3 x 25.4 cm) • 1 rack unit	• 17.3 x 1.7 x 15 in (43.9 x 4.3 x 38.1 cm)	• 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) • 1 rack unit	• 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) • 1 rack unit (single switch)	• EX8208: 17.25 x 24.25 x 21 in (43.82 x 61.6 x 53 cm) 14 rack units • EX8216: 17.3 x 36.5 x 26.5 in (43.9 x 92.7 x 67.4 cm) 21 rack units
Backplane Speed	N/A	N/A	N/A	128 Gbps (Virtual Chassis)	• 320 Gbps (full duplex) per line card • 3.1 Tbps (EX8208) or 6.2 Tbps (EX8216) per chassis
Data Rate	• EX2200-24P/24T: 56 Gbps • EX2200-48P/48T: 104 Gbps	480 Gbps	• EX3200-24P/24T: 88 Gbps • EX3200-48P/48T: 136 Gbps	• EX4200-24P/24T/24F: 88 Gbps • EX4200-48P/48T: 136 d>	• EX8200-48T: 96 Gbps • EX8200-48F: 96 Gbps • EX8200-8XS: 160 Gbps
Throughput	• EX2200-24P/24T: 42 Mpps (wire speed) • EX2200-48P/48T: 77 Mpps (wire speed)	357 Mpps (wire speed)	• EX3200-24P/24T: 65 Mpps (wire speed) • EX3200-48P/48T: 101 Mpps (wire speed)	• EX4200-24P/24T/24F: 65 Mpps (wire speed) • EX4200-48P/48T: 101 Mpps (wire speed)	• 120 Mpps per line card (wire speed) • 960 Mpps (EX8208) or 1.92 Bpps (EX8216) per system
10/100/1000BASE-T Port Densities	24 / 48 per platform	24 (dual-mode 1/10GbE network ports)	24 / 48 per platform	• 24 / 48 per platform • Up to 480 in Virtual Chassis configuration	• 48 per EX8200-48F line card • 384 (EX8208) or 768 (EX8216) per chassis
100BASE-FX / 1000BASE-X (SFP) Port Densities	4 per switch (fixed ports, SFP required)	N/A	4 per switch (via optional four-port GbE uplink module)	• 24 per switch; 28 with optional four-port GbE uplink module • Up to 280 in Virtual Chassis configuration	• 48 per EX8200-48F line card • 384 (EX8208) or 768 (EX8216) per chassis
10GBASE-X Port Densities	N/A	24	2 per switch (via optional two-port 10GbE uplink module)	• 2 per switch (via optional two-port 10GbE uplink module) • Up to 20 in Virtual Chassis configuration	• 8 per EX8200-8XS line card • 64 (EX8208) or 128 (EX8216) per chassis
Resiliency	Integral power supply and fans	Dual load-sharing internal autosensing AC power supplies	External redundant power supply; internal field-replaceable power supply; field-replaceable fan	Internal, hot-swappable redundant power supply; field-replaceable fan tray with three fans; graceful Route Engine switchover (GRES) in Virtual Chassis configuration	6 power supply bays for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and Switch Fabrics; GRES
Power Options	• 24T and 48T (non-PoE): Autosensing; 100-120 V / 200-240 V; AC 100 W • 24P and 48P (osensing; 100-120 V / 200-240 V; AC 550	Autosensing; 110/220 VAC; 60/50 Hz	• AC: 320W, 600W and 930W autosensing; 100-120V / 200-240V • DC: 190W; input voltage range 36V-72V; dual input feed	• AC: 320W, 600W and 930W autosensing; 100-120V / 200-240V; dual load-sharing hot-swappable internal redundant power supplies • DC: 190W: input voltage range 36V-72V; dual input feed, dual load-sharing hot-swappable internal redundant power supplies	• AC: 1200W and 2000W autosensing; 100-120V / 200-240V (up to 6000W or 10,000W per chassis) • AC: 3000W 200-240V (up to 15,000W per chassis)
Operating System	JUNOS	EX2500-SW	JUNOS	JUNOS	JUNOS
QoS Queues / Port	8	8	8	8	8
MAC Addresses	Call for details	16,000	24,000	24,000	160,000
Jumbo Frames	9216 Bytes	9216 Bytes	9216 Bytes	9216 Bytes	9216 Bytes
IPv4 Unicast / Multicast Routes	Call for details	N/A	12,000 / 2,000	12,000 / 2,000	512,000 / 128,000
Number of VLANs	Call for details	• VLAN IDs: 1024 • VLAN Range: 4096	4,096	4,096	4,096
ARP Entries	Call for details	N/A	16,000	16,000	100,000
