Juniper Networks CTP2008
CTP Series Circuit to Packet Platforms


Juniper Networks CTP2008

Juniper Networks Products
CTP Series
CTP2008 AC Base Chassis
#CTP2008-AC-02
List Price: $13,000.00
Our Price: $10,465.00
CTP2008 DC Base Chassis
#CTP2008-DC-02
List Price: $13,200.00
Our Price: $10,626.00

Click here to jump to more pricing!

Overview:

The CTP2008 Circuit to Packet Platform is a 1 RU rack mountable chassis that supports up to 8 circuit emulation interfaces. The interface modules are software configurable and are the same across the CTP2000 line.

Product Description

Juniper Networks CTP Series Circuit to Packet Platforms provide the advanced technology and features required to reliably transport time-division multiplexing and other circuit-based applications across next-generation IP/ MPLS networks. The CTP Series has the field-proven flexibility, performance and reliability required for circuit applications. The CTP Series technology includes many advanced clocking options and per-circuit buffers to enable end-to-end timing and the removal of jitter to create a pseudowire across the IP/ MPLS network. The CTP Series enables customers to connect digital and analog voice applications easily and reliably across the IP network using circuit emulation over IP, bringing them the advantages of converged multiservice IP networking without the complexities and cost of upgrades required for VoIP. The CTP Series bridges the legacy and IP world and provides many unique features that enable cost reduction by eliminating point-to-point circuits and convergence of all applications onto one IP/MPLS network.

With the ongoing deployment of IP networks, the efficiency and cost-savings gains of IP are being realized for a variety of applications and functions. Largely left out of this evolution have been the circuit-based applications such as time-division multiplexing (TDM) leased line and voice private branch exchange (PBX) connections, serial encryption connections, and analog and digital radio systems networking, because their synchronous transport requirements are not addressed by a packet-based network. The Juniper Networks CTP Series Circuit to Packet Platforms enable customers to connect these circuit-based applications easily and reliably across the IP network, bringing them the advantages of converged multiservice IP networking.

The CTP Series includes the Juniper Networks CTP150, CTP2008, CTP2024, CTP2056 Circuit to Packet Platforms, and the Juniper Networks CTPView Network Management System. The products are designed for government agencies, enterprises and service providers running circuit-based applications and range in size, port capacity and redundancy options.

Features and Benefits:

Key features and benefits of the CTP Series Circuit to Packet Platforms include the following.

Feature Feature Description Benefit
Software circuit provisioning EIA530, RS-232, V.35, 4WTO, T1, and E1 circuit types are software configured including the line encoding, clocking, rates, and IP settings. The network quickly fulfills new and changing end user requirements without deploying excess hardware.
Scalable product family A family of four CTP Series Circuit to Packet Platforms provides different port densities. Products can address the requirements of small remote sites through large central network hubs. Network designers control costs by selecting the CTP Series Circuit to Packet Platforms most suitable for the site when considering circuit quantities and anticipated growth.
CTPView Network Management System Secure, multi-user, web-based network management system provides network monitoring, circuit provisioning, IP performance reporting, database backup, and circuit troubleshooting tools. Managers quickly deploy circuits and services while proactively monitoring the network. IP performance reports provide detailed information on IP network jitter, delay and packet loss. Circuit troubleshooting tools include integral BERTS and loops to facilitate quick trouble resolution.
Multiple system and circuit clocking solutions CTP Series Circuit to Packet Platforms are designed to use multiple external clocks as monitored and prioritized system references. Circuits are configured to use the system clock, external circuit timing, or to adaptively recover clock information from the remote port when required by the application or when no reference is configured. Circuit reliability is improved since ports and systems are configured with the clocking solution that is most appropriate for the particular application.
Auto switch The status of the CTP Series circuit ports is monitored, and the circuit is automatically switched to an alternate local or remote port when a failure is detected. Network and circuit reliability are increased when the circuits are automatically restored to alternate locations and equipment in the event of an equipment, site or network failure.
Packet protector Redundant packets are created and transmitted to the IP network and then processed by the receiving CTP Series. Circuit quality and reliability are increased when IP connections experience significant packet loss caused by bit errors.
Autobaud The input timing leads are monitored, and the circuit rate is automatically changed at both ends of the network if a rate change is detected. Flexible rate agility enables immediate and automatic provisioning changes.
Loops and BERTs Each CTP Series port supports interface and network loops and the ability to generate and monitor a bit error rate test with up to nine BERT patterns selectable. Support for standard circuit troubleshooting tools that are built into the CTP Series help to quickly isolate network, circuit or cable problems.
Layer 2 IP aggregation The CTP Series Circuit to Packet Platforms can aggregate layer 2 traffic from serial EIA530 interfaces onto a Fast Ethernet or Gigabit Ethernet interface. Layer 2 protocols supported are Frame Relay, PPP and Cisco-HDLC. Each CTP Series port is connected to a different VLAN. The ability to aggregate layer 2 traffic on the CTP Series from multiple EIA530 serial interfaces reduces the router interfaces needed for low-speed EIA530 IP aggregation.
Port mirroring The CTP Series is able to port-mirror any transmit or any receive up to 10 local or remote destinations. Port mirroring minimizes the bandwidth required to send the same traffic to multiple sites across the network. It enables easy monitoring for troubleshooting circuit problems. Port mirroring enables the replication of data to multiple local or geographically dispersed locations.
Analog voice—4WE&M The CTP Series supports analog 4WE&M type I, II,and V interfaces with software selectable transmit and receivelevel adjustments per interface. The ability to support analog 4WE&M interfaces allows the CTP Series Circuit to Packet Platforms to offer another PBX trunking option. The 4WE&M interface can also be used for radio interfaces with push-to-talk requirements.
Analog voice—2WFXS The CTP Series supports analog 2WFXS loop start, ground start, and PLAR modes with software selectable transmit and receive-level adjustments per interface. The ability to support analog 2WFXS interfaces allows the CTP Series Circuit to Packet Platforms to offer 2-wire voice extensions over IP for remote phones, remote central office or PBX equipment.
Analog voice—2WFXO The CTP Series support analog 2WFXO loop start and ground start modes with software selectable transmit and receive-level adjustments per interface. The ability to support analog 2WFXO interfaces allows the CTP Series Circuit to Packet Platforms to offer 2-wire voice extensions over IP to remote phones, or remote central office or PBX equipment.
Voice compression The CTP Series Voice Compression module supports 64k G.711, 32k G.726, 16k G.726, 16k G.728, 8k G.729, and 2.4k MELP compression algorithms. The voice compression module also supports echo cancellation, silence suppression, fax and modem detection, and companding conversion. Voice compression can be applied on any T1 or E1 DS0 and on the analog 4WE&M interfaces. The use of voice compression and silence suppression can dramatically reduce the bandwidth required in the IP network. Multiple DS0s or analog channels can be bundled into one packet to further reduce the bandwidth required in the IP network.
IRIG-B The CTP Series supports an inter-range instrumentation group time code (IRIG-B) signal to be transported through an IP network. IRIG-B encodes day of year, hour, minute, and second data on a 1-KHz carrier frequency, with an update rate of once per second. Provides the ability to support IRIG-B transport over the IP network with options to configure direction, output high and low levels, and data range per interface.

Deployment:

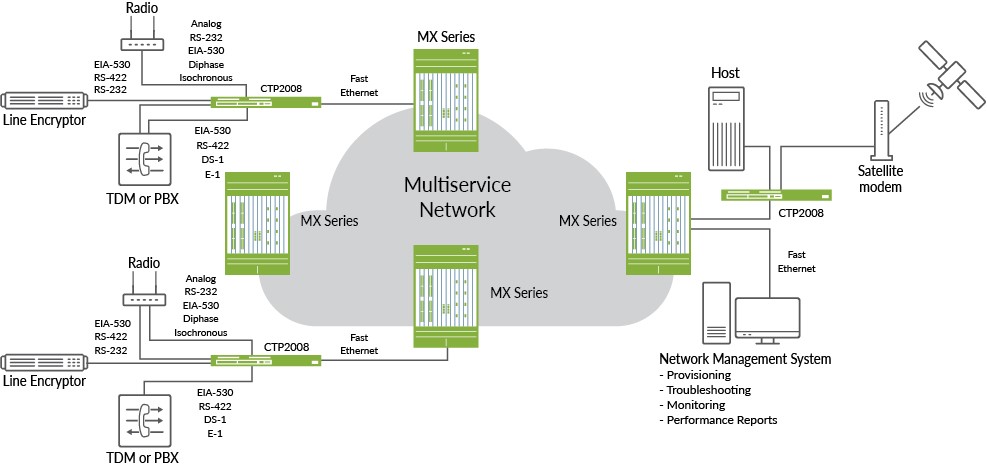

CTP Series Deployment

Primary Circuit to Packet Solutions

Application Application Description Benefit
SS7 transport over IP Provides transport of dedicated T1 or E1 SS7 links over the IP/MPLS network. Eliminates point-to-point T1 and E1 links required for transporting SS7 traffic and allows convergence over the IP/MPLS network.
TDM over IP solution The provisioning of point-to-point TDM trunks over the IP network does not require changes to the TDM equipment. Allows the continued use and investment protection of the existing TDM equipment or an easy transition path from a TDM network to an IP network.
PBX interconnect over IP solution Provides T1, E1 and 4WE&M trunking for PBX interconnection over the IP network. Reduce WAN infrastructure cost through the elimination of costly point-to-point circuits and leased lines required to support TDM and/or ATM networks. Circuit emulation over IP enables seamless transition to IP transport without upgrading your entire infrastructure to VoIP.
PBX Extension over IP with 2WFXS/2WFXO Provides two-wire analog PBX to phone extensions over IP and two-wire PBX to PBX/central office connections over IP. Private-line automatic ringdown (PLAR) is also supported. Reduces IT expenditures by enabling PBX tie lines to be transported across less expensive IP data network connections. Analog voice traffic is converted to IP, eliminating the need for costly T1 tie lines.
Leased line extension over IP solution Supports standards-based encapsulation and DS0 bundling. IETF PWE3 RFCs, SAToP and CESoPSN are supported. Enables full, fractional and DS0 bundling and mapping of T1 and E1 service provisioned over an IP/MPLS network and enables interoperability between vendors.
Radio over IP solution Allows for connectivity of analog and digital radios over IP networks. Provides a mechanism to deploy these systems over IP networks while maintaining critical communications.
Serial encryption over IP solution Provides transport of KG/KIV bit-synchronous cipher text across an IP network. Eliminates the need to deploy TDM or ATM equipment—saving cost, time, space, and power.
T1 and E1 backup over IP Point-to-point T1 or E1 circuits can be automatically backed up over the IP/MPLS network. Eliminates redundant point-to-point circuit costs. The end application does not need to detect IP, saving software and hardware upgrade costs.

Product Options:

Option Option Description Applicable Products
T1/E1 interface module 8-port T1 and E1 interface module with standard RJ48 interfaces. IETF PWE3 RFCs for SAToP and CESoPSN are supported. CTP2008, CTP2024, CTP2056,
CTP150
(4-port only)
Serial interface module 8-port serial interface module is provided. Per-port software selectable interfaces, data rates, clocking, etc. are available. Interface support for EIA232, V.24, EIA530, EIA449, V.35, and X.21 is provided. CTP2008, CTP2024, CTP2056,
CTP150
(4-port only)
Serial with T1/E1 interface option Provides additional software configurable T1 and E1 interface option on the serial interface module. Full and fractional T1/E1 support is also available. CTP2008, CTP2024, CTP2056
Serial with Multiservice interface option Provides additional software configurable single channel 4-wire trunkonly interface option, IRIG-B option or high-quality analog option on the serial interface module. CTP2008, CTP2024, CTP2056, CTP150
(4-port serial and 2-port MS support only)
4WE&M analog module 8-port 4WE&M front module and rear transition module support type I, II and V signaling options. The interface is a standard RJ21 amphenol connector. One voice compression module is required in the CTP Series. CTP2024, CTP2056
2WFXS analog module 24-port 2WFXS front module and rear transition module support loop start, ground start and PLAR modes. The interface is a standard RJ21 amphenol connector. One voice compression module is required in the CTP Series. CTP2024, CTP2056
2WFXO analog module 12-port 2WFXO front module and rear transition module support loop start and ground start modes. The interface is a standard RJ21 amphenol connector. One voice compression module is required in the CTP Series. CTP2024, CTP2056
Voice compression module The CTP Series Voice Compression module supports compression on T1 and E1 DS0s and all analog voice bundles. The module supports PCM, 32k G.726, 16k G.726, 16k G.728, 8k G.729, and 2.4k MELP compression algorithms. The voice compression module also supports echo cancellation, silence suppression, fax and modem detection, and companding conversion between T1 and E1. CTP2024, CTP2056
CTP clock main and spoke modules The CTP Series clock main and spoke modules are required when the 8-port serial module and compression module are installed into one CTP Series device. CTP2024, CTP2056
Gigabit Ethernet and Fast Ethernet fiber SC modules Provides for two 1000BASE-FX or 100BASE-FX SC connectors for IP connectivity on the network side. CTP2008, CTP2024, CTP2056
Gigabit Ethernet SFP fiber options SFP options include 1000BASE-T, 1000BASE-SX and 1000BASE-LX. CTP2008, CTP2024, CTP2056
Y-cable A cable connects one DTE to two DCE CTP Series serial ports to provide 1:1 hardware redundancy. This is only supported on serial interfaces. This option is not available on T1 or E1 interfaces. CTP2008, CTP2024, CTP2056, CTP150
AC power Internal AC power supply is provided. CTP2008, CTP2024, CTP2056, CTP150
DC power Internal DC power supply is provided. CTP2008, CTP2024, CTP2056
Redundant power Provides for dual redundancy power supplies. CTP2024, CTP2056

Specifications:


Model CT P150 CT P2008 CT P2024 CT P2056
  CT P150 CT P2008 CT P2024 CT P2056
Dimensions and Power
Dimensions (W x H x D)  17.25 x 1.75 x 14.5 in
(43.8 x 4.5 x 36.8 cm)
17.25 x 1.75 x 11.75 in
(43.8 x 4.5 x 29.8 cm)
17.25 x 1.75 x 11.75 in
(43.8 x 4.5 x 29.8 cm)
17.25 x 7.0 x 11.75 in
(43.8 x 17.8 x 29.8 cm)
Weight (lb) 14.5 12 20 27
Mounting Front Rack Front Rack Front Rack Front Rack
Input voltage (AC) 100-240 VAC 100-240 VAC 100-240 VAC 100-240 VAC
Input voltage (DC) N/A 40-72 VDC 40-72 VDC 40-72 VDC
Power supply 100 W 250 W 250 W x 2 250 W x 2
Input current 1.5 A at 110 VAC 2 A at 110 VAC 2 A at 110 VAC 2.5 A at 110 VAC
Operating Temperature 32° to 104° F
(0° to 40° C)
32° to 104° F
(0° to 40° C)
32° to 104° F
(0° to 40° C)
32° to 104° F
(0° to 40° C)
Humidity noncondensing 5 to 90% 5 to 90% 5 to 90% 5 to 90%
Serial Interfaces
Interfaces
EIA232, EIA530, EIA530A, V.35, V.24, EIA449, X.21, T1, E1
Yes Yes Yes Yes
IRIG-B Yes Yes Yes Yes
Encoding NRZ, Conditioned Diphase, Isochronous, Asynchronous, AMI, B8ZS, HDB3, TDM/TDC, Transparent Yes Yes Yes Yes
Interface quantity 8 8 24 56
Rates 50 bps–12.880 Mbps 50 bps–12.880 Mbps 50 bps–12.880 Mbps 50 bps–12.880 Mbps
Voice Interfaces
Analog voice 4-wire TO interface quantity 4 8 24 56
4WE&M N/A N/A 16 48
2WFXS N/A N/A 48 144
2WFXO N/A N/A 24 72
T1 and E1 8 8 24 56
Voice compression N/A N/A Yes Yes
Echo cancellation N/A N/A Yes Yes
Silence suppression N/A N/A Yes Yes
Fax and modem detection N/A N/A Yes Yes
Companding conversion N/A N/A Yes Yes
IP Interfaces
100BASE-T (RJ-45) N/A N/A N/A N/A
100/1000BASE-T (RJ-45) 2 2 2 2
100BASE-FX (SC)—Optional N/A 2 2 2
1000BASE-FX (SC)—Optional N/A 2 2 2
SFP 1000BASE-T N/A 4 4 4
SFP 1000BASE-SX N/A 4 4 4
SFP 1000BASE-LX N/A 4 4 4
Precedent setting—(DSCP), configurable TOS byte Yes Yes Yes Yes
VLAN tagging Yes Yes Yes Yes
Virtual IP Yes Yes Yes Yes
Circuit modes—symmetric, asymmetric, unidirectional, hairpin Yes Yes Yes Yes
IPv4 and IPv6 Yes Yes Yes Yes
IETF PWE3 RFC SAToP Yes Yes Yes Yes
IETF PWE3 RFC CESoPSN Yes Yes Yes Yes
Layer 2 EIA530 aggregation Yes Yes Yes Yes
Port mirroring Yes Yes Yes Yes


Views:


Top Front View
Top Front View

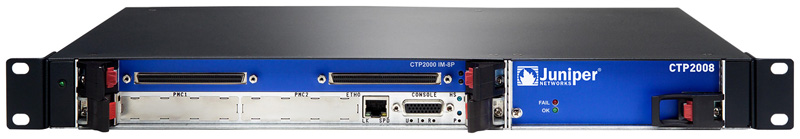

Front View
Front View
Rear View
Rear View

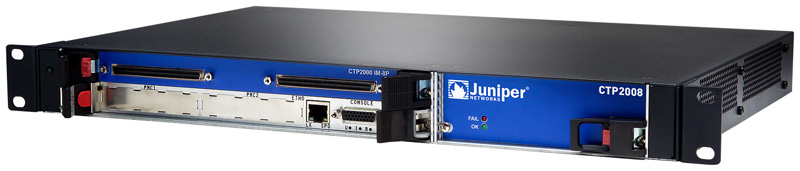

Left Angle View
Left Angle View

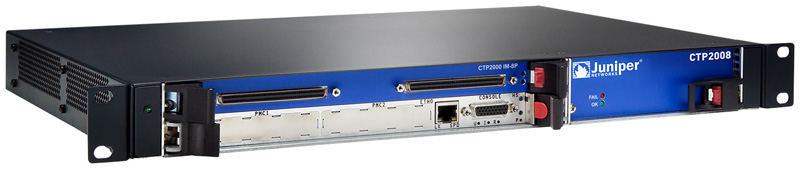

Right Angle View
Right Angle View

Pricing Notes:

CTP Series
CTP2008 AC Base Chassis
#CTP2008-AC-02
List Price: $13,000.00
Our Price: $10,465.00
CTP2008 DC Base Chassis
#CTP2008-DC-02
List Price: $13,200.00
Our Price: $10,626.00
Juniper Care
Juniper Care Core Support for CTP2008
#SVC-COR-CTP2008
List Price: $1,910.00
Our Price: $1,823.00
Juniper Care Core Plus Support for CTP2008
#SVC-CP-CTP2008
List Price: $2,250.00
Our Price: $2,148.00
Juniper Care Next Day Support for CTP2008
#SVC-ND-CTP2008
List Price: $3,650.00
Our Price: $3,484.00
Juniper Care Next Day Onsite Support for CTP2008
#SVC-NDCE-CTP2008
List Price: $2,810.00
Our Price: $2,682.00
Juniper Care Same Day Support for CTP2008
#SVC-SD-CTP2008
List Price: $4,910.00
Our Price: $4,687.00
Juniper Care Same Day Onsite Support for CTP2008
#SVC-SDCE-CTP2008
List Price: $3,930.00
Our Price: $3,751.00
Interface Modules
CTP2000 series 4WE&M Rear Transition Module
#4WEM-RTM
List Price: $1,050.00
Our Price: $845.00
CTP2000 series voice compression and echo cancellation module
#CTP2000-COMPRESSION
List Price: $4,000.00
Our Price: $3,220.00
CTP2000 series 8-port 4WE&M Analog Interface Module
#CTP2000-IM-4WEM
List Price: $6,450.00
Our Price: $5,192.00
CTP 2000 series EIA530/RS-232 8-Port Interface Module
#CTP2000-IM-8P
List Price: $11,950.00
Our Price: $9,619.00
CTP2000 series 8-port Serial module with 8 daughter cards to add 4WTO analog, high quality analog, and IRIG capabilities to 2 ports
#CTP2000-IM-8P-MS
List Price: $13,950.00
Our Price: $11,229.00
CTP2000 series EIA53 RS-232 T1 8-Port IM
#CTP2000-IM-8P-T1
List Price: $13,950.00
Our Price: $11,229.00
CTP2000 Interface Module with 8 T1 or E1 ports
#CTP2000-IM-8P-T1E1
List Price: $6,800.00
Our Price: $5,474.00
CTP2000 Series High Density Compression module
#CTP-COMPRESSION-2
List Price: $28,000.00
Our Price: $22,540.00
Interface Accessories
CTP2000 main clock card
#CTP-CLK-MAIN
List Price: $500.00
Our Price: $402.00
CTP2000 spoke clock card
#CTP-CLK-SPOKE
List Price: $350.00
Our Price: $281.00
PMC card for CTP2000 to support up to 2 SFP Modules
#CTP-FIBER-PMC
List Price: $2,000.00
Our Price: $1610.00
Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module
#CTP-SFP-1GE-LX
List Price: $995.00
Our Price: $800.00
Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module
#CTP-SFP-1GE-SX
List Price: $500.00
Our Price: $402.00
Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable)
#CTP-SFP-1GE-T
List Price: $395.00
Our Price: $317.00
Interface Modules
CTP2000-DC Processor Spare
#CTP2000-PRC-S
List Price: $11,500.00
Our Price: $9257.00
CTP2000-DC Rear Transition Module Spare
#CTP2000-RTC-S
List Price: $4,900.00
Our Price: $3944.00
CTP2008 Recessed Rackmount kit
#CTP2008-REC-RMK
List Price: $100.00
Our Price: $80.00
EIA530 RS-232 Cable -100 Pin to Four (4) DB-25
#CTP-CBL-4Q
List Price: $350.00
Our Price: $281.00
CTP Cable - 100 pin to four (4) DB-25 DTE
#CTP-CBL-4Q-DTE
List Price: $350.00
Our Price: $281.00
Redundancy Cable for connections between two CTP systems
#CTP-CBL-4Q-Y
List Price: $580.00
Our Price: $466.00
4G Compact Flash Spare, no CTPOS
#CTP-CF-4G-S
List Price: $200.00
Our Price: $161.00
