Juniper Networks BTI7814
Optical transport technologies for high-bandwidth metro and DCI networking.

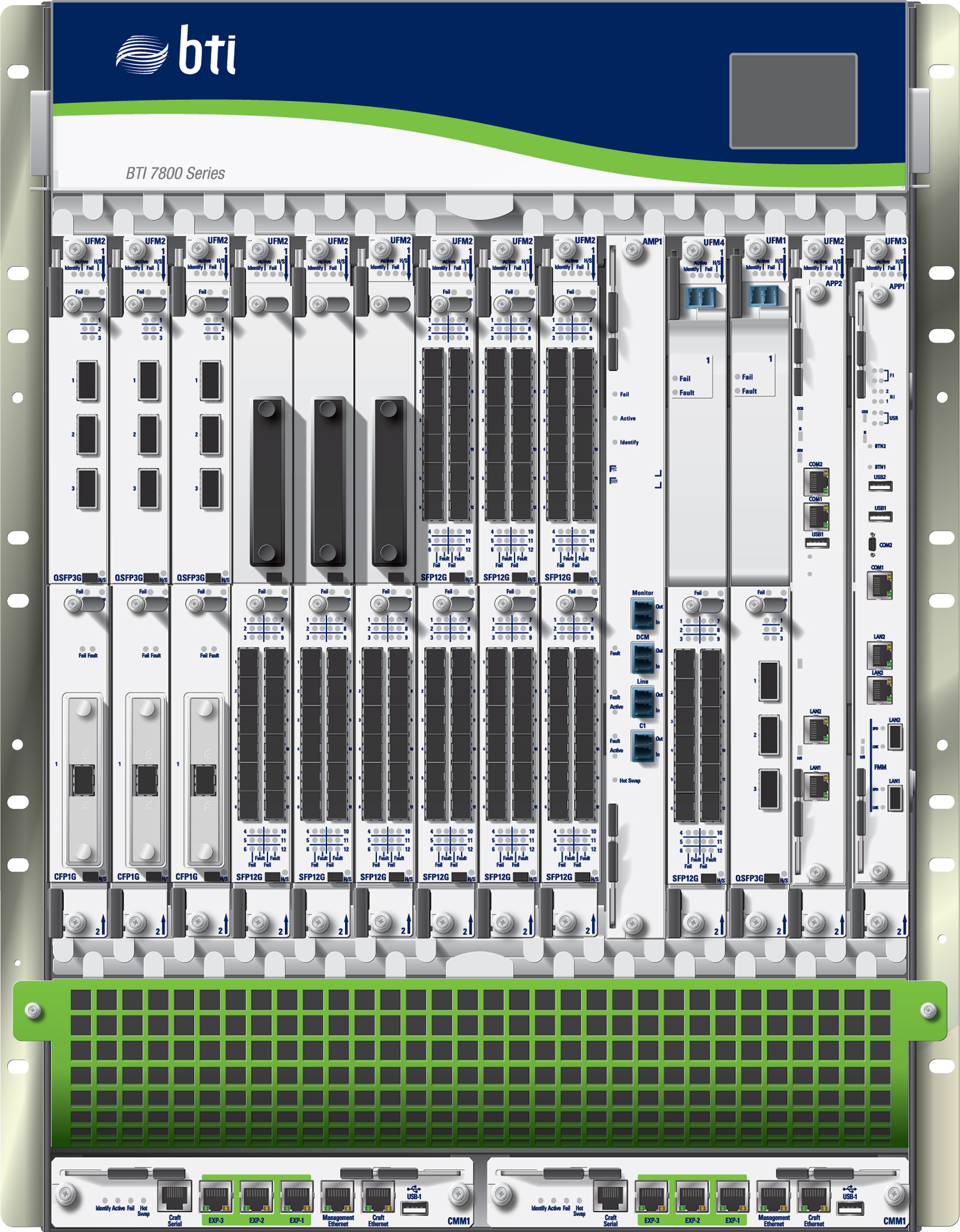

Juniper Networks BTI7814

Juniper Networks Products
BTI7814 Optical Transport Systems
Juniper Networks BTI7814 NTWK ELEMENT LICS ONE LICS PER NTWK ELEMENT
#BTI7814
List Price: $2000.00
Our Price: $1610.00

Click here to jump to more pricing!

Product Overview:

The growth in bandwidth-intensive applications, coupled with the migration from local compute/ storage models to cloud-based services, is driving a need for more efficient converged network infrastructure solutions, enabling improved network utilization, simplified large-scale operations, and lower cost per Gbps. The BTI7800 line of packet optical transport systems supports large scale 10 Gbps, 100 Gbps, and 200 Gbps wavelength capacities in an open SDN platform. Leveraging a rich set of optical capabilities, including coherent modules with flexible client interfaces (Ethernet and TDM), the BTI7800 line helps network operators increase network capacity, reduce space/ power/cooling costs, improve network utilization, and simplify the deployment of high-value services.

Product Description

The Juniper Networks® BTI7800 line of packet optical transport systems leverages a modular, flexible, pay-as-you-grow architecture. At the heart of the BTI7800 are flexible Universal Forwarding Modules (UFMs), each capable of switching up to 400 Gbps. UFMs can be equipped with 10 Gbps, 100 Gbps, and 200 Gbps interfaces providing the flexibility to support a wide range of muxponder and transponder connectivity. Optimized for metro and regional networks, the BTI7800 devices support a broad range of interfaces, including 10 Gbps, 40 Gbps, 100 Gbps, 200 Gbps, OTU2, OTU4, OC-192/STM-64, and 8G/10G Fibre Channel.

The BTI7800 line is managed by the Juniper Networks proNX software, an SDN architected, high-performance network management and control platform with open APIs, Web GUI interfaces, and software-enabled networking.

Architecture and Key Components

The BTI7800 Packet Optical Transport Systems seamlessly integrate with Juniper Networks TCX1000 Programmable ROADM to increase the capacity of existing networks or roll out new 100 Gbps or 200 Gbps networks. A variety of blade options, including amplifiers, muxponders, and transponders, satisfy diverse capacity, span and reach requirements, while optimizing equipment expenses. The system automatically discovers all network nodes and modules, and automatically establishes intra-node and extra-node connections, eliminating manually intensive and error-prone configuration tasks to streamline operations.

Features and Benefits:

  • Leading density, space, and power: Designed for massive capacity in a compact footprint, the BTI7800 architecture supports up to 5.6 Tbps of wavelength capacity in a 14 U chassis, with 10/100/200 Gbps scale (2x200 Gbps per slot client and line-side connectivity) to 16.8 Tbps in a single rack.
  • Diverse capacity, span and reach capabilities: The BTI7800 easily integrates with the TCX1000 Programmable ROADM, improving deployment flexibility and economics.
  • Open management and control: Open SDN-architected proNX software and associated applications enable new levels of programmability, automation, and control, simplifying and accelerating service delivery.
  • Investment protection and migration path to applications integration: The BTI7800 modular architecture supports the addition of future interfaces and applications.

Platform Options

  BTI7814 BTI7802 BTI7801
Rack units 14 3 1
Module slots 14 2 1
Capacities
 10GbE capacity
100GbE capacity
5.6 Tbps
 560
 56
800 Gbps
 80
 8
400 Gbps
 40
 4
Multichassis Yes Yes Hardware-ready
Dimensions (HxWxD) 24.5 x 17.9 x 22.0 in (62.2 x 43.0 x 56.0 cm) 5.2 x 17.5 x 12.0 in (13.3 x 44.4 x 30.5 cm) 1.75 x 17.4 x 24.2 in (4.4 x 44.0 x 61.5 cm)
Power consumption -48V DC, 100A (max)
AC power options available
Power per 10GbE = 7 W (typical)
-48VDC, 20A (max)
AC power options available
Power per 10GbE = 9 W (typical)
-48VDC, 15A (max)
AC power options available
Power per 10 Gbps = 10 W (typical)
Normal operating temperature range 0°C to 40°C 0°C to 40°C 0° to 32°C
Environmental and safety certifications Telecordia NEBs Level 3, Earthquake Zone 4, GR-63-CORE, GR-78-CORE, FCC Part 15 Class A, GR-1089- CORE, IEC/UL/CSA 60950, IEC 60825 Telecordia NEBs Level 3, Earthquake Zone 4, GR-63-CORE, GR-78-CORE, FCC Part 15 Class A, GR-1089- CORE, IEC/UL/CSA 60950, IEC 60825 Telcordia GR-3160 Generic Requirements for data center Equipment and Spaces, FCC Part 15 Class A. IEC/UL/CSA 60950, IEC 60825


BTI7800 flexible, scalable deployment options

Specifications

Universal Forwarding Module (UFM) Configuration Options

Each chassis option supports a number of common UFM configuration options:

  • UFM Type 3: Supports two BIC slots
  • UFM Type 6: Supports 10 quad small form-factor pluggable transceiver (QSFP) ports
  BTI7801 BTI7802 BTI7814
UFM3
UFM6
AMP1
WPS4

Protocol Support

  • 10 Gbps LAN/WAN, OC-192, STM-64, OTU2
  • 40 Gbps
  • 100 Gbps, OTU4
  • 200 Gbps, OTU4

Pluggable Optics

  • Small form-factor pluggable plus transceiver (SFP+), 850 nm
  • SFP+, 1310 nm
  • SFP+, dense wavelength-division multiplexing (DWDM)
  • C form-factor pluggable transceiver (CFP), 100GBASE-SR10
  • CFP, 100 Gbps Coherent
  • CFP, 100GBASE-LR4
  • QSFP+, 4x10G, LR
  • QSFP+, 4x10G, SR
  • QSFP+, 40GBASE-SR4
  • QSFP+, 40GBASE-LR4

Management

  • CLI, SNMP, and NETCONF/YANG

Line Side Protection

  • Optical protection switch
  • Wavelength protection switch (WSP4)

400G Coherent MSA XCVR (2x200G)

Transmitter Specifications
Parameter Min. Max. Unit
Frequency range 191.35 196.1 THz
Laser frequency stability -1.8 1.8 GHz
Output power range 1.5 dBm
Transmitter optical signalto-noise ratio (OSNR)(in-band) 36 dB/0.1nm
Optical return loss tolerance 27 dB
Receive Specifications
Frequency range 191.35 196.1 THz
Input power range -18 0 dBm
OSNR tolerance 19.5 dB
Polarization mode dispersion (PMD) tolerance 15 ps
Polarization dependent loss (PDL) tolerance 3 dB
Dispersion tolerance -30,000 30,000 ps/nm
Optical return loss from receiver 27 dB
Transmitter Specifications
Parameter Min. Max. Unit
Frequency range 191.35 196.1 THz
Laser frequency stability -1.8 1.8 GHz
Output power range -15 1 dBm
Transmitter optical signalto-noise ratio (OSNR)(in-band) 27 dB/0.1nm
Optical return loss tolerance 27 dB
Receive Specifications
Frequency range 191.35 196.1 THz
Input power range -18 0 dBm
OSNR tolerance 17.1 dB
Polarization mode dispersion (PMD) tolerance 15 ps
Polarization dependent loss (PDL) tolerance 3 dB
Dispersion tolerance -22,000 22,000 ps/nm
Optical return loss from receiver 27 dB

Documentation:

Download the Juniper Networks BTI7800 Series Data Sheet (PDF).

Pricing Notes:
