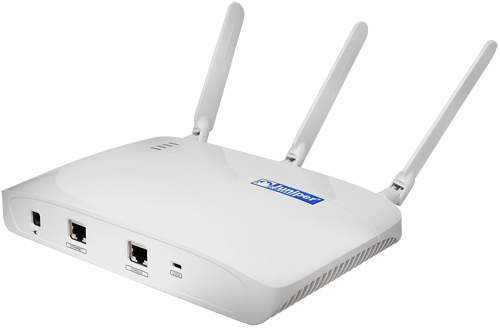

Juniper Networks AX411 Wireless LAN Access Point
Dual-band, dual-radio 802.11n wireless LAN access point with data rates up to 300 Mbps

Juniper Networks AX411 Wireless LAN Access Point
Juniper Networks Products
AX Series Wireless LAN Access Point
Juniper Networks Dual Radio, 802.11abgn Access Point
- Power supply not included.
#AX411-US
List Price: $745.00
Our Price: $599.00

More pricing below, click here!

802.11a/b/g/n WiFiAX411 Overview:

The Juniper Networks AX411 is a highperformance, 802.11a/b/g/n wireless LAN (WLAN) access point. It is a dual band, dual radio solution that supports data rates up to 300 Mbps. The AX411 integrates with the award winning Juniper Networks SRX Series Services Gateways for the branch to deliver security throughput that leads in its category. The AX411 is fully managed by branch SRX Series devices using Juniper Networks Junos OS. The AX411 is an ideal wireless networking solution for branch offices with simple WLAN architectures.

The Juniper Networks® AX411 Wireless Access Point, together with Juniper Networks SRX Series Services Gateways for the branch, extends the reach of Juniper Networks Junos® operating system to lower deployment and operational costs across wired and wireless environments. Using cluster cloning, operators can ease management tasks by automating the configuration of any AX411 joining a cluster of access points. The product’s over-the-air packet capture capabilities support centralized monitoring that allows offsite experts to analyze traffic and resolve problems.

For locations with multiple access points, the branch SRX Series provides wireless controller capabilities. All branch SRX Series Services Gateways can manage up to two AX411 access points without the need to purchase additional software licenses. Additional access points can be managed with the purchase of a software licenses. The AX411 supports 802.3af Power over Ethernet (PoE) for cost-effective installations based on industry standard technologies.

By combining the SRX Series Services Gateways with the AX411 WLAN access point, designers can extend security and QoS architectures from wired networks to wireless networks. As a result, the overall infrastructure solution is consistent and secure. The AX411 can support a variety of user and device types with multiple unique SSIDs, each with specific security and QoS requirements.

The AX411 integrates with Juniper’s integrated convergence services capabilities on branch SRX Series devices to extend enterprise voice over IP to untethered workers who are using Wi-Fi-enabled endpoints.

AX411 configuration options include a command-line interface (CLI) and Juniper Networks J-Web Software on the SRX Series, in addition to centralized policy and device management from Juniper Networks Network and Security Manager.

Features & Benefits:

Easy to install and expand

  • Automatic access point cluster cloning*
  • Configuration on connect

Ease to operate and manage

  • Remote packet capture*
  • Wireless PHY security integrated with Juniper zone-based security

Excellent end user experience and security

  • End-to-end wireless QoS treatment for simplified low latency application support
  • Multiple SSID support for different security and application needs
* Features supported in the future

Technical Specifications:

AX411 Front View
Front View
AX411 Rear View
Rear View
Model: AX411
Draft 802.11n 2.0 capabilities
  • 2x3 multiple-input multiple-output (MIMO) with two spatial streams
  • Maximal-ratio combining (MRC)
  • 20 MHz and 40 MHz channels
  • PHY data rates up to 300 Mbps
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • Space-time block code (STBC) range enhancement support
  • Reduced active power consumption (< 2.5 W per radio)
Data rates
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11n:
    • 6.5, 13.5, 7.2, 15 Mbps
    • 13, 27, 14.4, 30 Mbps
    • 19.5, 40.5, 21.7, 45 Mbps
    • 26, 54, 28.9, 60 Mbps
    • 39, 8,1 43.3, 90 Mbps
    • 52, 108, 57.8, 120 Mbps
    • 58.5, 121.5, 65, 135 Mbps
    • 65, 135, 72.2, 150 Mbps
    • 13, 27, 14.4, 30 Mbps
    • 26, 54, 28.9, 60 Mbps
    • 39, 81, 43.3, 90 Mbps
    • 52, 108, 57.8, 120 Mbps
    • 78, 162, 86.7, 180 Mbps
    • 104, 216, 115.6, 240 Mbps
    • 117, 243, 130, 270 Mbps
    • 130, 270, 144.4, 300 Mbps
Antenna connector 3 x reverse polarity SMA (RPSMA)
Tx power capabilities
  • TX power out B mode @ 11 Mbps: 20 dBm +/- 2
  • TX power out G mode @ 54 Mbps: 18 dBm +/- 2
  • TX power 11n mode @ 2.4 GHz (per chain): 16 dBm +/-2
  • TX power out A mode @ 54 Mbps: 14 dBm +/- 2
  • TX power 11n mode @ 5 GHz (per chain): 13 dBm +/- 2
Interfaces
  • 10/100/1000 Ethernet port
  • Serial console port
  • Optional power supply
  • Locking connector
Management
  • Junos OS CLI, J-Web
  • Network and Security Manager
Indicators
  • Power LED: Indicating power status of AX411
  • Status LED: Indicating AX411 operational status
  • Radio 1 LED: Indicating activity on 2.4 GHz radio
  • Radio 2 LED: Indicating activity on 5 GHz radio
Dimensions 9.5 x 5.8 x 1.9 in (242 x 147 x 48 mm)
Weight 2 lb 6.3 oz (1.085 kg)
Mounting
  • Wall mount
  • Desk mount
  • Ceiling tile
Environmental
  • Nonoperating (storage) temperature: –40° to 149° F (–40° to 65° C)
  • Operating temperature: –4° to +122° F (–20° to 50° C)
  • Operating humidity: Up to 95% @ 25° C
  • Mean time between failures (Telcordia model): > 30 years
System memory
  • 2 MB NOR Flash
  • 32 MB NAND Flash
  • 64 MB DDRII RAM
Power options
  • Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
  • PoE: 802.3af
Power draw 12.4 W
Compliance
  • EMC: FCC 15B, 15C, 15E, Canada RSS-210, EN300328, EN301893, EN301489-1, EN55022:2007, EN 55024, EN300386
  • Safety: UL2043, CAN/CSA-C22.2 No. 60950-1 (2007), UL 60950-1, EN 60950-1, IEC 60950-1
  • Radio Approvals: For a list of supported countries, refer to the AX411 Certification Listing Document
  • IEEE Standard: IEEE 802.11a/b/g, IEEE 802.11n draft 2.0, IEEE 802.11h, IEEE 802.11d, IEEE 802.11e
  • Security: 802.11i, WEP, WPA/WPA2, 802.1X, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
EAP types
  • EAP-TLS
  • EAP-TTLS/MSCHAPv2
  • PEAPv0/EAP-MSCHAPv2
  • PEAPv1/EAP-GTC
  • EAP-SIM

RX power capabilities
RX sensitivity (8% PER) 11b mode @ different data rates
  • 1 Mbps: -96 dBm
  • 2 Mbps: -93 dBm
  • 5.5 Mbps: -91dBm
  • 11 Mbps: -88 dBm
RX sensitivity (10% PER) 11g mode @ different data rates
  • 6 Mbps: -90 dBm, 9 Mbs: -89 dBm
  • 12 Mbps: -89 dBm, 18 Mbps: -86 dBm
  • 24 Mbps: -83 dBm, 36 Mbps: -79 dBm
  • 48 Mbps: -75 dBm, 54 Mbps: -74 dBm

Note that these numbers are without using external low-noise amplifier (LNA). With external LNA, the Rx sensitivity numbers improve by 1 to 2 dBm.

RX sensitivity (10% PER) 11n modes Band Rate/BW Sensitivity (DBM)
2.4 GHz 1 -96
2.4 GHz 11 -88
2.4 GHz 6 -90
2.4 GHz 54 -74
2.4 GHz mo/20 MHz -86
2.4 GHz mo/40 MHz -83
2.4 GHz m15/20 MHz -67
2.4 GHz m15/40 MHz -66
5 GHz 6 -89
5 GHz 54 -73
5 GHz mo/20 MHz -85
5 GHz mo/40 MHz -82
5 GHz m15/20 MHz -64
Antenna Specification
Frequency range 2.4-2.5 GHz/5.15-5.875 GHz
Gain 2.4-2.5 GHz, Gain = 3 dBi
5.15-5.875 GHz, Gain = 5 dBi
VSWR VSWR < 2
Polarization linear, vertical
Half-power beam width (HPBW)/horizontal 360°
HPBW/vertical 78°
Maximum power rating 2 W (CW)
Impedance 50 ohms (typical)

Antenna Pattern:

Antenna pattern 2.4 GHz - Vertical
Antenna pattern 2.4 GHz - Vertical
  Antenna pattern 5 GHz - Vertical
Antenna pattern 5 GHz - Vertical

Frequency (MHz): 2400.00
Maximum Gain (dB): 2.35
Minimum Gain (dB): -1.43
Antenna Polarity: Vertical
Maximum Gain (degree): 360
Minimum Gain (degree): 135
Average Gain (dB): 0.58
Frequency (MHz): 5150.00
Maximum Gain (dB): 5.02
Minimum Gain (dB): -0.59
Antenna Polarity: Vertical
Maximum Gain (degree): 354
Minimum Gain (degree): 252
Average Gain (dB): 2.29
Antenna pattern 2.4 GHz - Horizontal
Antenna pattern 2.4 GHz - Horizontal
  Antenna pattern 5 GHz - HorizontalAntenna pattern 5 GHz - Horizontal
Frequency (MHz): 2400.00
Maximum Gain (dB): 2.05
Minimum Gain (dB): -32.82
Antenna Polarity: Horizontal
Maximum Gain (degree): 3
Minimum Gain (degree): 87
Average Gain (dB): -4.15
Frequency (MHz): 5150.00
Maximum Gain (dB): 4.11
Minimum Gain (dB): -31.34
Antenna Polarity: Horizontal
Maximum Gain (degree): 357
Minimum Gain (degree): 90
Average Gain (dB): -3.81
