Juniper Networks ACX2000
Universal Access Router

Juniper Networks ACX2000
Juniper Networks Products
ACX Series Universal Access Routers
ACX2000 Universal Access Router, DC Version
1RU, Temperature hardened, Passively cooled, SyncE/1588v2, 16xT1/E1, 6xGE RJ45, 2xGE RJ45 with POE+, 2xGE SFP, 2x10GE SFP+ (Optics Sold Separately)
#ACX2000-DC
List Price: $13,900.00
Our Price: $11,190.00

Click here to jump to more pricing!

Overview:

Like all ACX Series universal access routers, the compact 1RU ACX2000 is environmentally hardened with fan-less passive cooling and provides a versatile access platform that includes TDM, GbE and 10GbE interfaces.

The fixed port configuration includes 16 TDM (T1/E1) interfaces, eight copper GbE interfaces with PoE++ (65W) capability on two ports, two GbE SFP ports, and two 10 GbE SFP+ ports.

Product Description

Many networks have seen benefits from convergence in the core and the edge, a similar transformation is clearly required in the access network. Universal Access is an architectural concept that achieves this objective by extending operational intelligence from the edge to access network. Juniper Networks ACX Series Universal Access Routers are purpose built to support adaptive services architecture, enabling rapid deployment of access services and transforming the network to create a seamless end-to-end service delivery platform. ACX series being a family of hardened universal access routers can be deployed in a variety of service provider use cases namely, mobile backhaul, residential and business access, as well as mission critical enterprise use cases demanding high availability operation in extreme environments such as power utilities, oil & gas, mining, transportation, defense and public safety industries.

Juniper Networks ACX Series Universal Access Routers include the fixed configuration ACX1000, ACX1100, ACX2000, and ACX2100 Universal Access Routers in a compact 1 RU form factor. These are environmentally hardened and support passive cooling for easy deployments in outside street cabinets or environmental enclosures. The ACX4000 Universal Access Router is a modular 2.5 RU form factor with higher performance and configurable options for interface types. Powered by Juniper Networks Junos operating system, the ACX Series delivers industry-leading performance and simplified end-to-end provisioning with support for full IP/MPLS with traffic engineering, and extensive Layer 2 and Layer 3 functionality.

ACX Series Universal Access Routers cost-effectively address current operator challenges to rapidly deploy new, high bandwidth services. With industry leading performance of up to 60 Gbps for all models and the most comprehensive, traditional, and packet timing features, the ACX Series is well positioned to address the growing bandwidth needs in the access network. These platforms deliver the necessary scale and performance needed to support multi-generation services. With support for extensive hardware and software features, the ACX Series extends the operational intelligence all the way to the access network to deliver seamless end-to-end services. Equipped with interfaces for both timedivision multiplexing (TDM) and Ethernet (high density GbE, Power over Ethernet, and 10GbE), as well as support for high precision clocking and synchronization, the ACX Series platforms can support the mobile network's evolution path from 2G/2.5G to 3G/4G/Long Term Evolution (LTE) as well as diverse interface requirements in Enterprise applications.

Powered by Junos OS, the ACX Series family complements Juniper's Universal Edge and Universal WAN solutions through a flexible and scalable enterprise and branch routing portfolio optimized to support rapidly growing mobile, video, and cloud computing applications. The ACX Series introduces Juniper's proven IP/MPLS leadership from core and edge into the access layers of the network. Still maintaining relative simplicity in the access network, the ACX Series supports a rich suite of L2, L3, and IP/MPLS functionality to allow large-scale seamless MPLS networks with simplified service provisioning and operations.

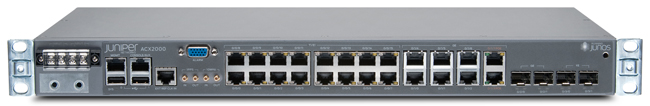

Juniper Networks ACX2000 Left Angle

Architecture and Key Components:

The ACX1000, ACX1100, ACX2000, and ACX2100 Universal Access Routers are compact 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm) platforms conforming to ETSI 300 specifications. This architecture enables ease of deployment in a telco or enterprise cabinet where rack space and cooling are limited. The ACX4000 is a modular 2.5 RU form factor with configurable options for interface types and overall density.

The ACX Series delivers an industry-leading performance with a range of port densities and interface types. Table below provides a snapshot of interfaces supported on each ACX Series model.

Hardware Differences Between the Various ACX Series Models

Interface ACX1000 ACX1100 ACX2000 ACX2100 ACX4000
TDM – T1/E1 8 - 16 16 -
GbE (Copper) 8 8 8 (PoE++ on 2 ports) 4 -
GbE combination Copper or Fiber (SFP) 4 4 - 4 8 (PoE++ on 2 ports)
GbE SFP - - 2 2 2
10GbE (SFP+) - - 2* 2* 2*

The ACX Series common alarm and timing components include:

  • Four alarm inputs and four alarm output contacts
  • One management port
  • External Building Integrated Timing System (BITS) timing port
  • 10 MHz timing connectors (one input and one output)
  • 1 Pulse Per Second (PPS) connectors (one input and one output)
  • Time of Day (TOD) RS232 port
  • 1.544 MHz/2.048 MHz T1/E1 (RJ48) ports for timing input or output
  • SyncE support on RJ45/SFP ports as timing input or output
  • Packet (IEEE 1588-2008)2 timing includes:
    - Timing input when configured as Ordinary Clock (OC) or Boundary Clock (BC)
    - Timing output when configured as BC

Features and Benefits:

The Universal Access routing solution is optimized to enhance the mobile subscriber experience while significantly improving network monetization for service providers. By delivering new levels of programmability, reliability, and scalability to the mobile network, Juniper's new Universal Access portfolio improves customer satisfaction while lowering the total cost of operating, maintaining, and updating the network infrastructure.

For service provider and enterprise applications, ACX Universal Access routing platform delivers high performance in demanding space constrained, harsh environments. This makes ACX perfect choice for high-reliability, high-availability, mission-critical communications networks deployed in extreme environments around the world.

Juniper Networks ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, endto- end, service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.

The Universal Access portfolio redefines the service provider and enterprise access network with support for seamless MPLS, comprehensive management with Junos Space, world-class timing and synchronization and SDK-enabled programmability.

Feature Benefits
Flexible and adaptive service architecture
  • A service architecture that extends operational intelligence to the access network and can adapt and grow with business needs.
  • Junos OS-powered comprehensive feature set with support for carrier Ethernet services, L2, L3, MPLS, traffic engineering, and call admission control (CAC). With simplified service provisioning and operations, the ACX Series includes the functionality needed to deploy MPLS in the access network.
Rapid provisioning with superior management Easy, cost-effective, remote provisioning with Junos Space Services Activation Director. Support for fault management, extensive Operation, Administration, and Management (OAM), service monitoring, and integrated Sync Manager. Easy integration with third-party services and tools.
Scale and performance Industry-leading performance that is 3x the closest competitor. High density GbE and 10GbE support to meet growing bandwidth needs and support for evolution from 2G to 3G/4G/LTE. Wide interface range with T1/E1, GbE, 10GbE, and PoE++ support. With PoE++ support, there is no electrical cabling required for microwave/Wi-Fi access devices and/or surveillance cameras simplifying the service provider and enterprise telemetric applications.
Highest quality of experience (QoE) The ACX series platforms support proven and widely deployed clocking technologies, SyncE and IEEE 1588-2008 to deliver enhanced subscriber experience.
Open access system Through Junos SDK open APIs service provisioning can be easily customized and integrated with third-party applications and tools.
Environmental hardening The fixed 1 RU ACX Series models are environmentally hardened and support passive cooling for outdoor deployments in extreme weather conditions.

Specifications:

Front View

Front View

Rear View

Rear View

Model: ACX1000 ACX1100 ACX2000 ACX2100 ACX4000
  ACX1000 ACX1100 ACX2000 ACX2100 ACX4000
Dimensions (W x H x D) 17.5 x 1.75 x 9.4 in
(44.5 x 4.4 x 24 cm)
17.5 x 1.75 x 9.4 in
(44.5 x 4.4 x 24 cm)
17.5 x 4.35 x 9.25 in
(44.5 x 11 x 23.5 cm)
Weight (lb/kg) fully configured 6.5 lb (2.94 kg) 7.8 lb (3.54 kg) 8.3 lb (3.77 kg) 8.3 lb (3.77 kg) 23.8 lb (10.82 kg)
(Fully configured with two power supply units, two Modular Interface Controllers (MICs)
Power (DC) -48 V, -60 V telco nominal or +24 VDC nominal -48 V, -60 V telco nominal or +24 VDC nominal -48 V, -60 V telco nominal or +24 VDC nominal
Power (AC) 90 to 240V AC for ACX1100-AC* only 90 to 240V AC for ACX1100-AC* only 90 to 240 V AC
Maximum power draw 50W (ACX1000); 35W (ACX1100-AC); 40W (ACX1100-DC) 70W (ACX2000); 60W (ACX2100-AC); 80W (ACX2100-DC) 150W (w/o MICs); 45W for each MIC; 65W for each PoE++ port
Operating temperature -40° F to 158° F (-40° C to 70° C) -40° F to 149° F (-40° C to 65° C) full featured -40° F to 158° F (-40° C to 70° C)
Humidity 95% RH noncondensing 95% RH noncondensing 95% RH noncondensing
Noise level 0 dB (acoustic noise) (negligible-only passive cooling is used) 0 dB (acoustic noise) (negligible-only passive cooling is used) 33 dBA at 27 degrees C ambient temperature
Approvals
Safety Approvals
  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1 – CB Scheme
  • EN 60825-1
EMC
  • AS/NZS CISPR22 Class A
  • EN55022 Class A
  • VCCI Class B
  • FCC Part 15 Class A
Immunity
  • EN-61000-3-2 Power Line Harmonics
  • EN-61000-3-3 Voltage Fluctuations and Flicker
  • EN-61000-4-2 ESD
  • EN-61000-4-3 Radiated Immunity
  • EN-61000-4-4 EFT
  • EN-61000-4-5 Surge
  • EN-61000-4-6 Low Frequency Common Immunity
  • EN-61000-4-11 Voltage Dips and Sags
ETSI
  • ETSI EN300386-2 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements
  • ETSI EN 300 019-2-1 (2000) – Storage, Class T1.2
  • ETSI EN 300 019-2-2 (1999) – Transportation, Class T2.3
  • ETSI EN 300 019-2-3 (2003) – Stationary Use at Weatherprotected Locations, Class T3.2
  • ETSI EN 300 019-2-4 (2003) – Stationary Use at Non-weather Protected Locations, Class 4.2H
  • ETS 300753 (1997) – Acoustic Noise Emitted by Telecommunications Equipment
NEBS
  • SR-3580 NEBS Criteria Levels (Level 3 Compliance)
  • GR-63-CORE: NEBS, Physical Protection
  • GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant)
  • GR-3108-CORE: Generic Requirements for Network Equipment in the Outside Plant (OSP)
Telecomm Compliance
  • RTTE Directive 1995/5/EC
  • T1 and XDSL Interfaces
    - FCC Part 68
    - Industry Canada CS-03
    - JATE Green Book
    - TBR 21 (XDSL only)
  • E1 Interface
    - TBR 12/13
    - ACA TS016
    - G.703
Management
  • Device management: NETCONF, CLI, SNMP v1/v2/v3
  • Comprehensive fault-management, configuration, accounting, performance, and security (FCAPS) management through Junos Space network management system (NMS):
    - Device level configuration, software upgrade, alarms, script management
    - End-to-end provisioning of ELINE, emulated LAN (ELAN), L3VPN, SyncE, IEEE1588-2008 (PTP), OAM, class of service (CoS)
    - Device and service level fault management
    - Device and service level performance management
Metro Ethernet Forum (MEF) Designed to be MEF CE2.0 compliant
